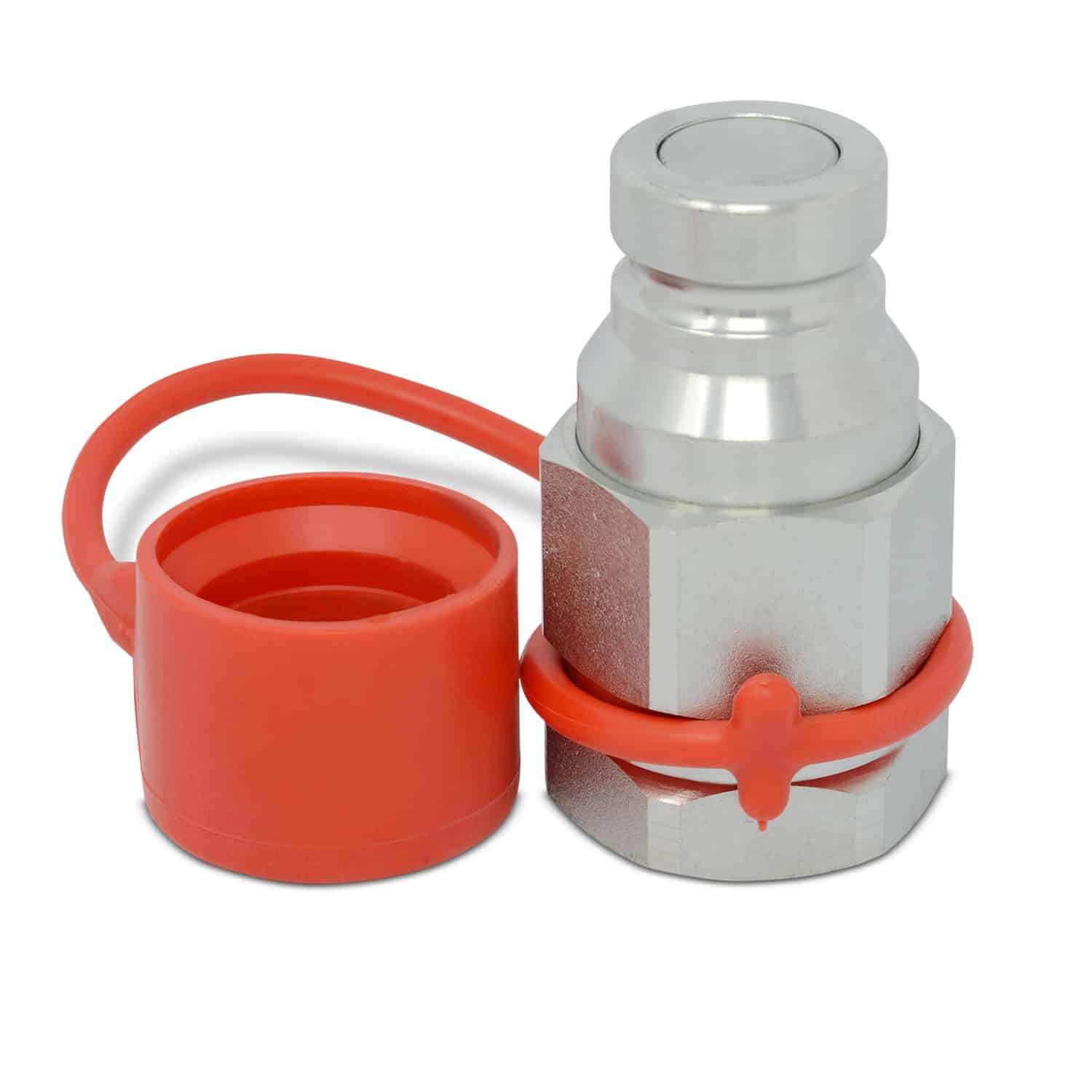

1″ Flat Face High Flow Hydraulic Quick Connect Male Coupler, 1-1/4″ NPT Thread

SKU: FF1M-20N

Size: 1″ Body with 1-1/4″ NPT

Benefits:

• Flush face valve design minimizes fluid loss and air inclusion
• Zinc-nickel plating provides superior corrosion resistance
• Hardened steel construction with hardened sleeves
• Allows for minimal pressure drops
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 16028 standard couplings

Features:

• 5,076 PSI rating
• 74 GPM Max Flow Rate
• 50 GPM Nominal Flow Rate
• Buna-N Seals with Teflon backup ring can operate up to 250° F
• Male Face Diameter: 1.42” (36mm)
• Male Length: 3.74” (95mm)
• Hex: 1.97” (50mm)
