Name: 1-1/2" NPT Wet-Line Wing Nut Hydraulic Quick Disconnect Coupler Set
SKU: 4100-24N-SET
Price: 129.95 USD
Availability: InStock

$129.95

Free Shipping

1-1/2″ NPT Wet-Line Wing Nut Hydraulic Quick Disconnect Coupler Set

In stock

SKU: 4100-24N-SET Categories: Coupler Sets, Wet Line Couplers Tags: Coupler Set, Wet-Line

SKU: 4100-24N-SET

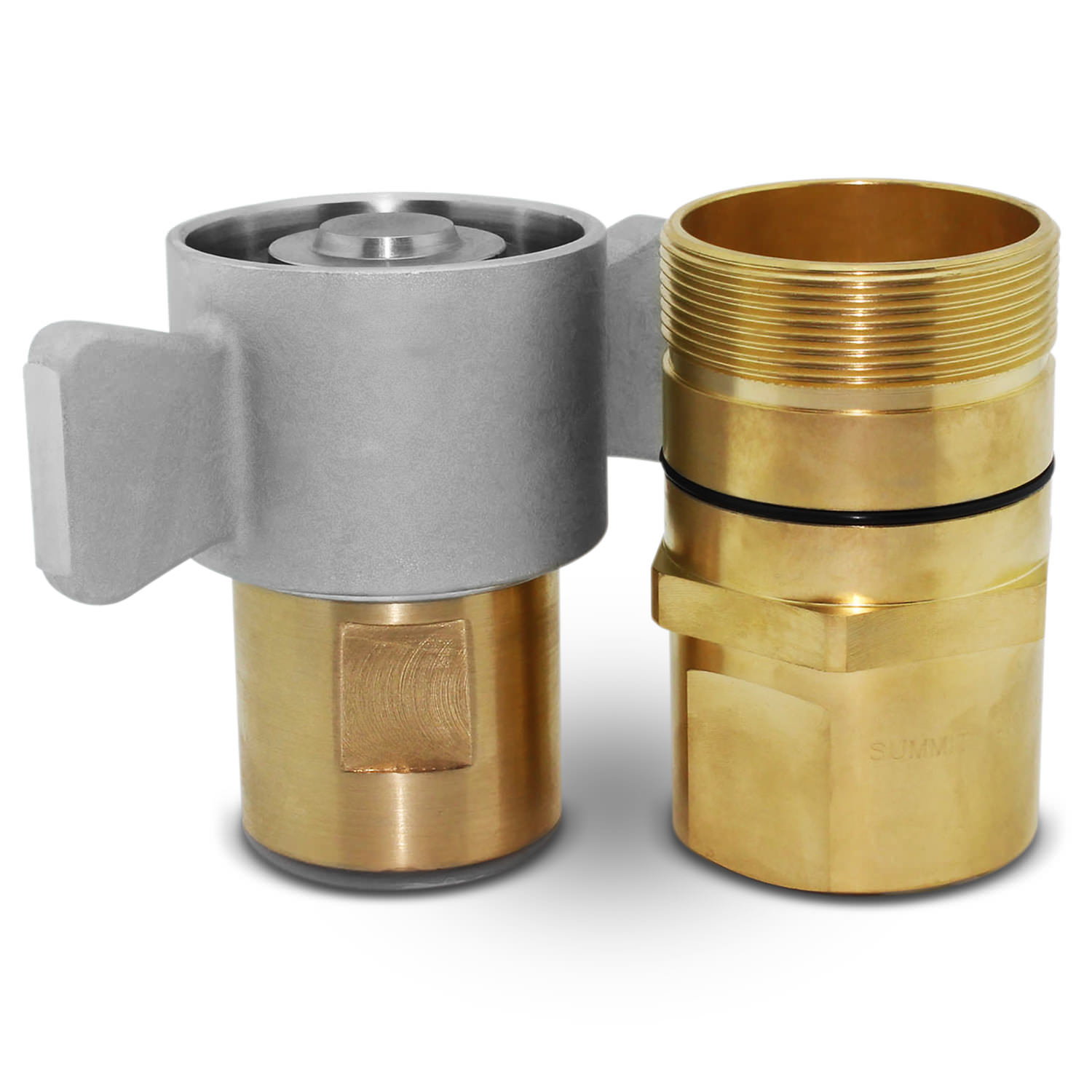

Summit 1-1/2″ Wet-Line / Wing Nut Couplers are designed for industrial applications that require couplings to be connected and disconnected under pressure with little to no fluid loss. Wet-line couplers are commonly used on live bed / dump trailer wet-line hydraulic systems and other heavy duty applications.

Applications:

Dump Trailers
Live Bed Trailers
Mobile Drilling Rigs
Sand and salt spreaders
Oil Well Equipment
Heavy Equipment

Features:

Brass body coupler and nipple prevents corrosion
Heavy-duty steel sleeve and wing nut
Nitrile seal with Teflon backup
3000 PSI working pressure rating

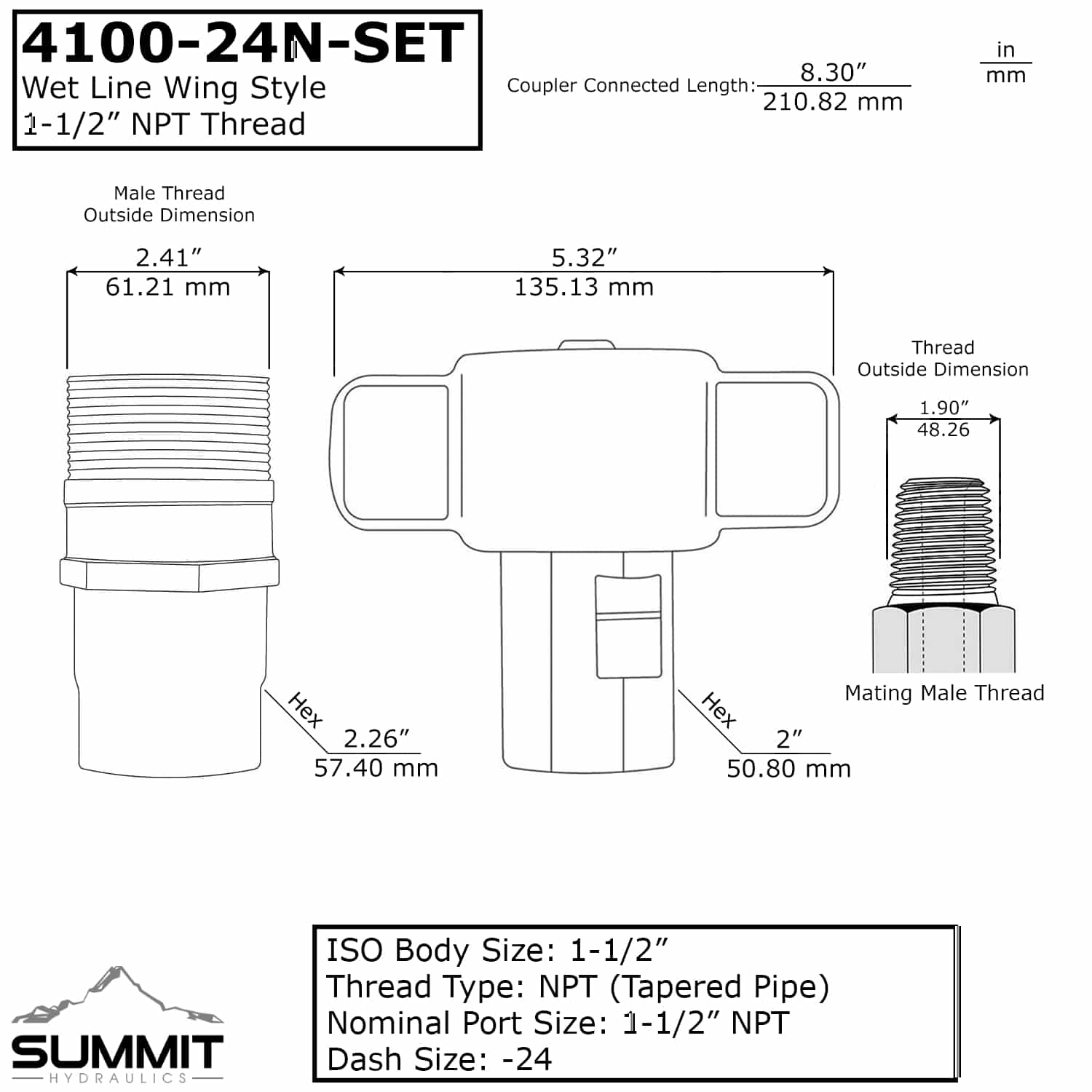

1-1/2″ NPT Female Pipe Thread
Nominal Flow Rate: 80 GPM

Our quick connect couplers are compatible with the following:

Manufacturer	Male	Female	SET
SUMMIT	4100M-24N	4100F-24N	4100F-24N-SET
Parker 6100 Series	6105-24	6125-24	6100-24
Eaton Aeroequip 5100 Series	5100-S4-24B	5100-S5-24B	5101-24B
Dixon W Series	W12F12-B	12WF12-B
Faster FB Series	FB 24/112NPT M5	FB 24/112NPT F5
Snap-Tite 78 Series	B78N24-24F	B78C24-24F
Stucchi W Series	100610124 N51WS-24-24 NPT	100610024 N51WS-24-24 NPT
DNP	VFF-24-24-N-NPT	VFF-24-24-C-NPT
