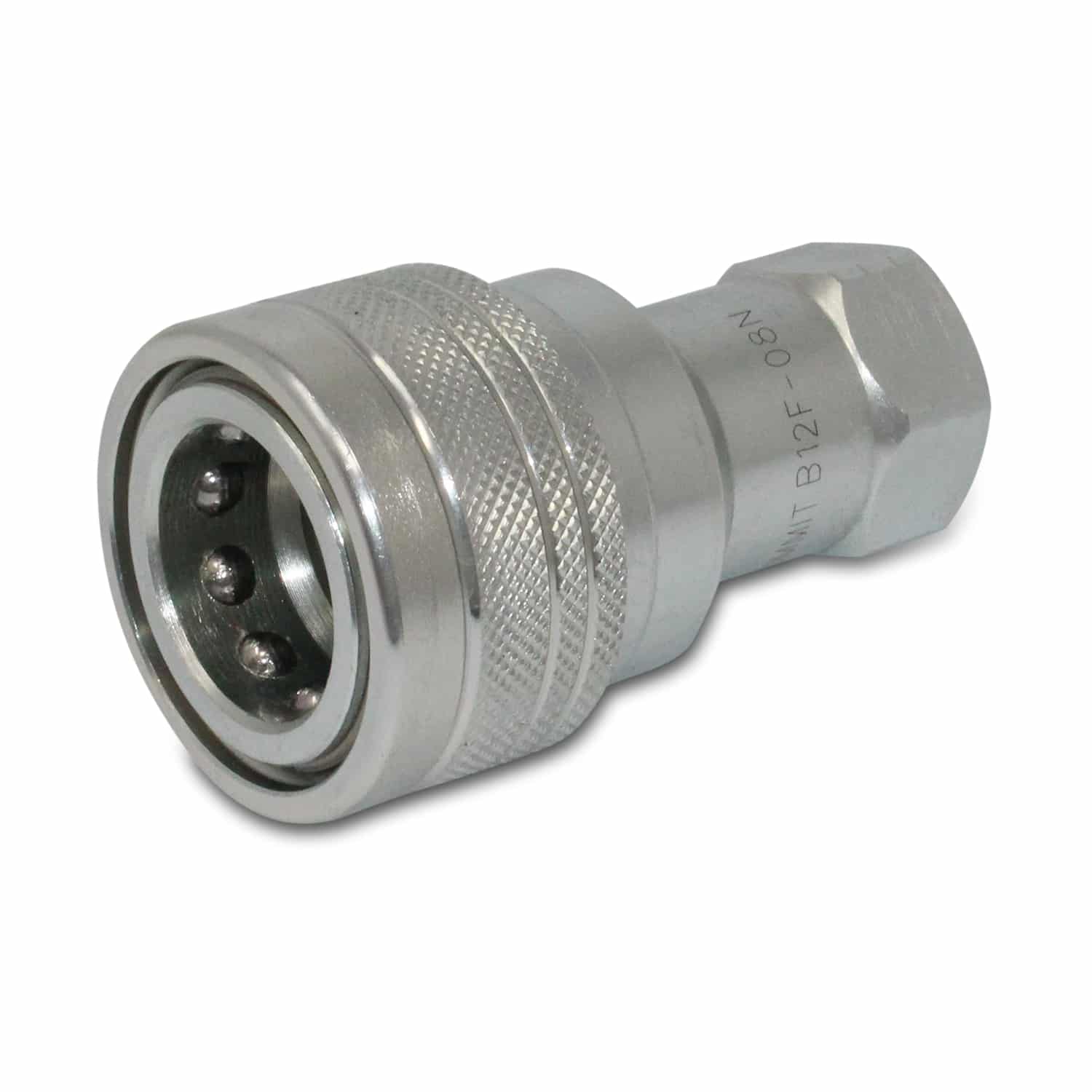

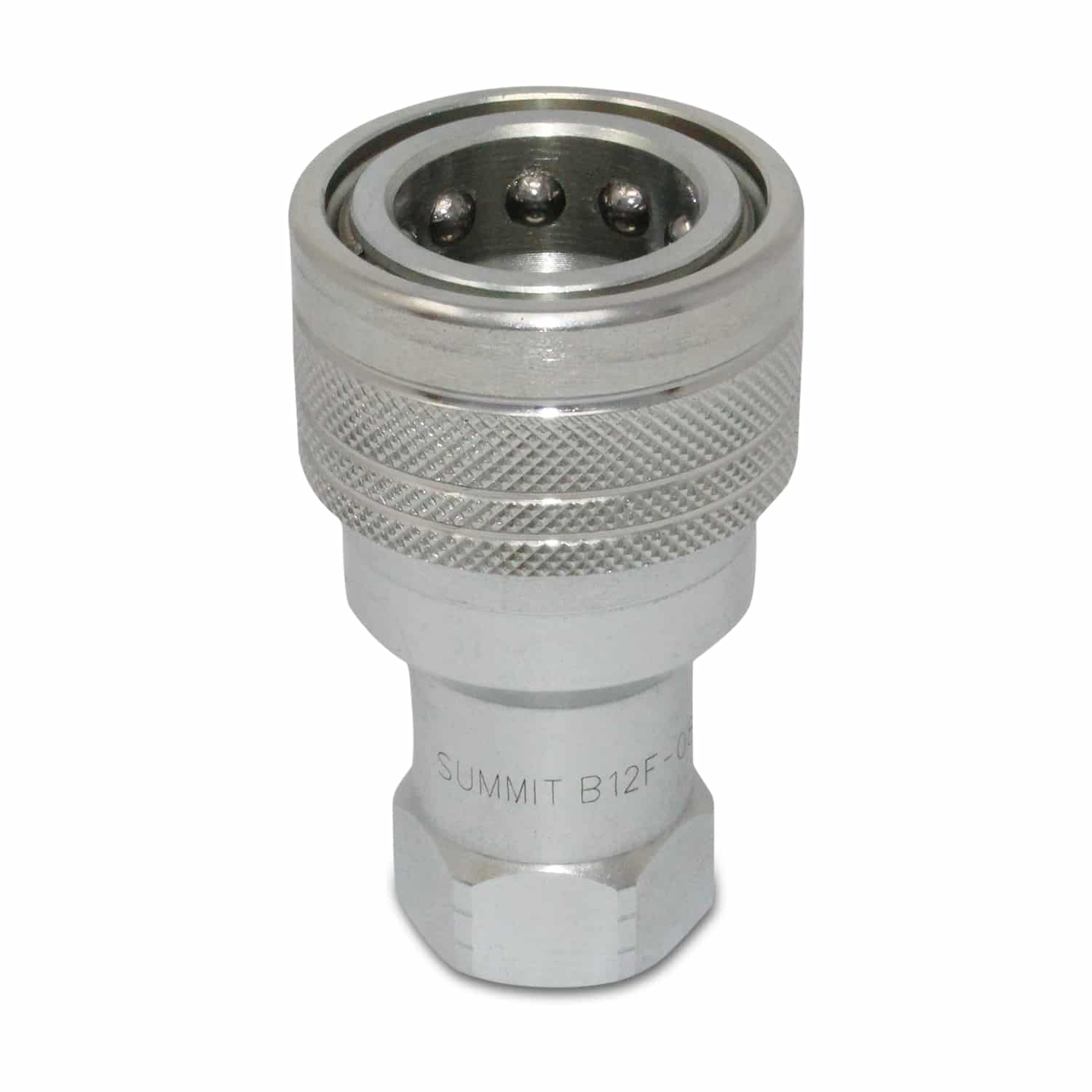

1/2″ NPT ISO 7241-B Quick Disconnect Hydraulic Female Coupler

SKU:  B12F-08N

The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.

Body Size: 1/2″ Body

Thread Size: 1/2″ NPT Thread, Poppet Valve

Benefits:

• Body: Carbon Steel
• Finishing: ZN-Fe (CRIII) Plating
• Seals: NBR standard seals
• Spring Material: 304 Stainless Steel
• Radial Locking Balls
• Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Interchangeable with all ISO 7241 B series couplings

Features:

• 3600 PSI Rating
• 14,500 PSI Burst Rating (Coupled)
• 24 GPM Max Flow
• 12 Nominal Flow Rate

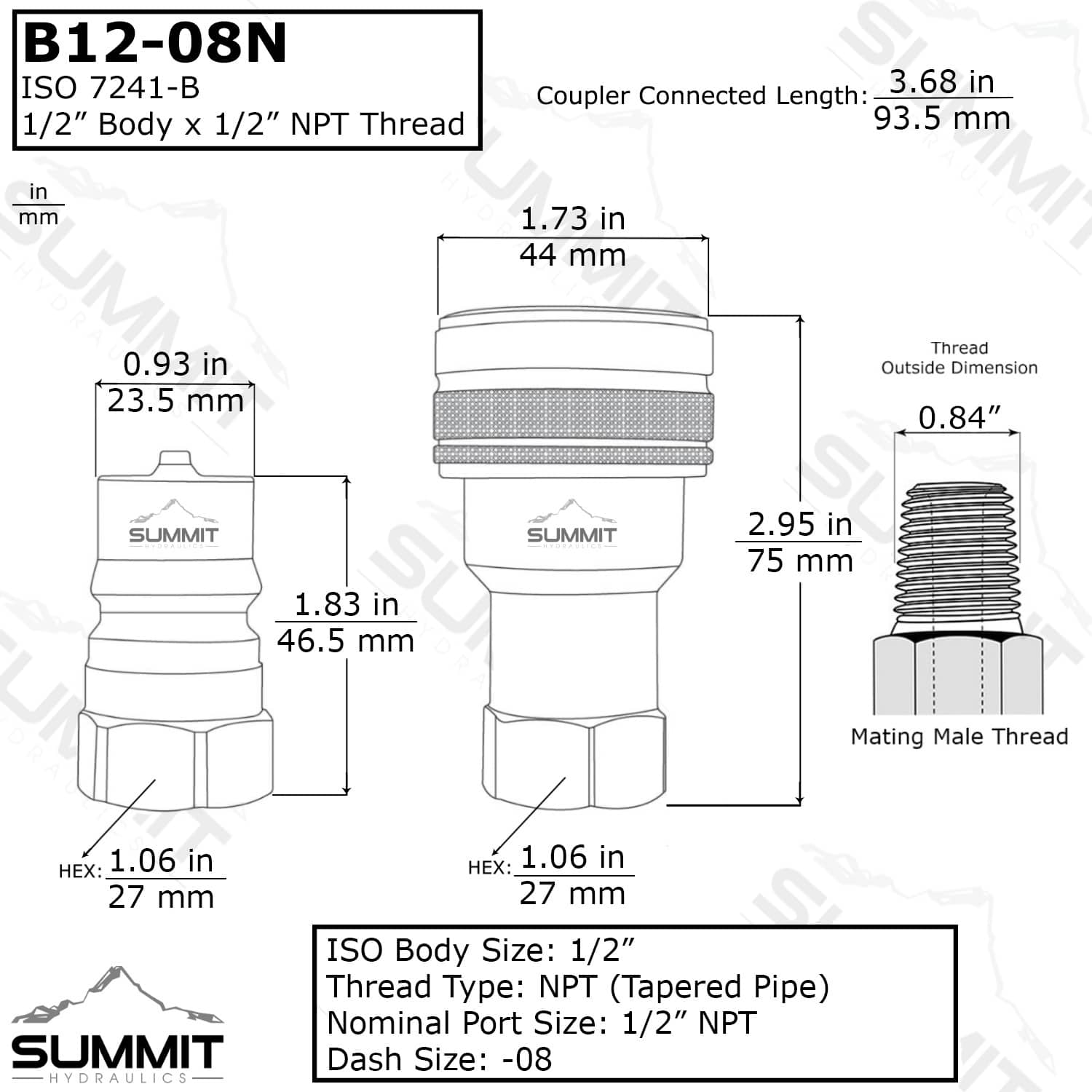

• Female Face Diameter 1.73” (44mm)
• Female Length: 2.95” (75mm)
• Hex: 1.06” (27mm)

Interchangeable with:

Kit Includes:

• 1 Female Coupler
