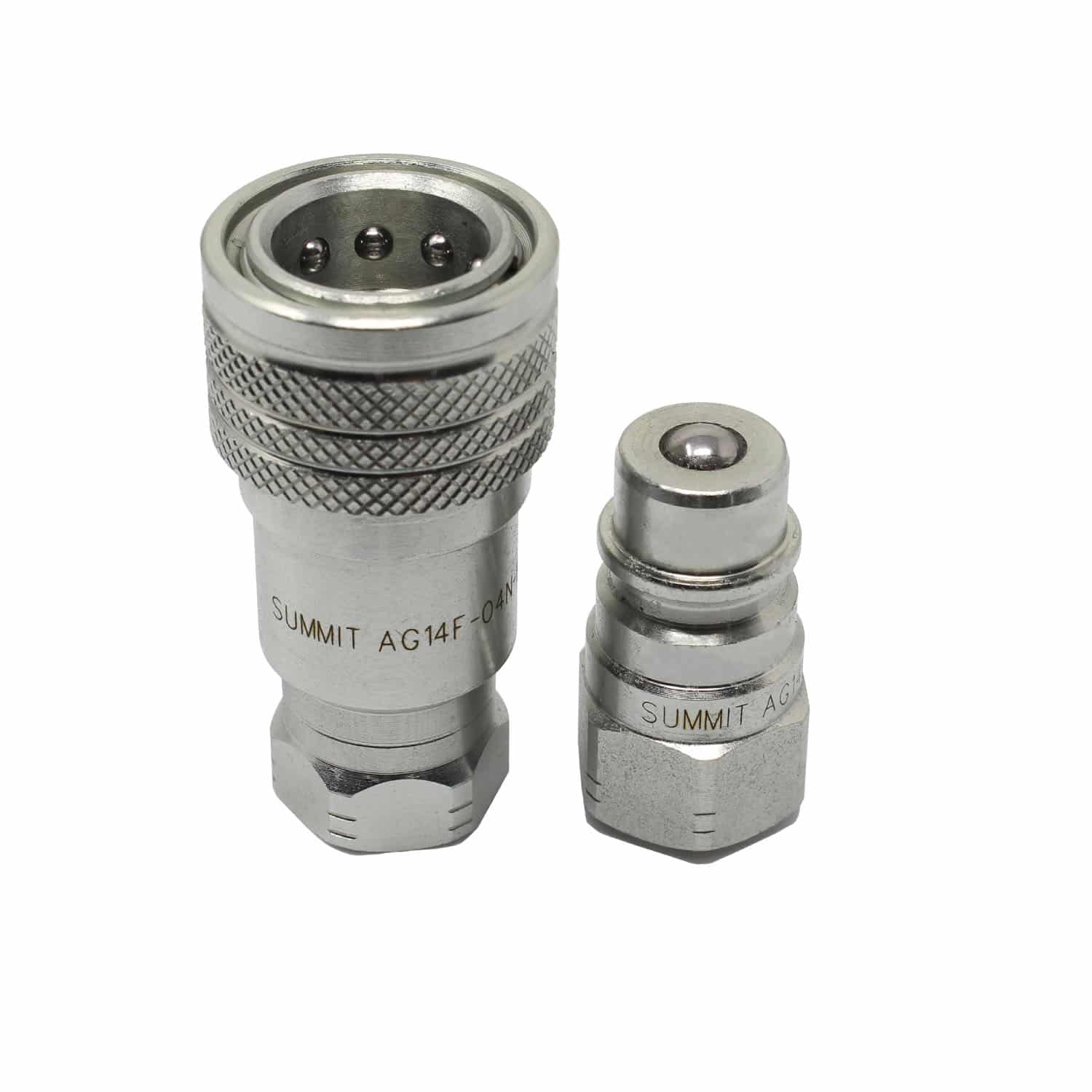

1/4″ Body AG ISO 5675, Ball Style, Hydraulic Quick Connect Coupler Set, 1/4″ NPT Thread

1/4″ Body AG ISO 5675, Ball Style, Hydraulic Quick Connect Coupler Set, 1/4″ NPT Thread

SKU: AG14-04N-B-SET

This series of couplers are the most common quick connect couplers used in the agriculture, construction and logging industries.  They are interchangeable with all ISO 5675 series including ball seat valve, poppet seal, push-pull couplings.

ISO Body Size: 1/4”

Port Thread: 1/4” NPT

Features:

• 5100 PSI Rating
• 6.34 GPM Max Flow
• Hardened Steel Plugs
• Buna-N Seals with Teflon backup ring can operate up to 250° F
• Ball Valve
• Female Length: 1.931”
• Male Length: 1.380”
• Coupled Length: 2.75”
• Hex: 0.751”

Included:

• 1 – Female Coupler
• 1 – Male Coupler
