1/4″ NPT ISO 7241-B Brass Quick Disconnect Hydraulic female Coupler

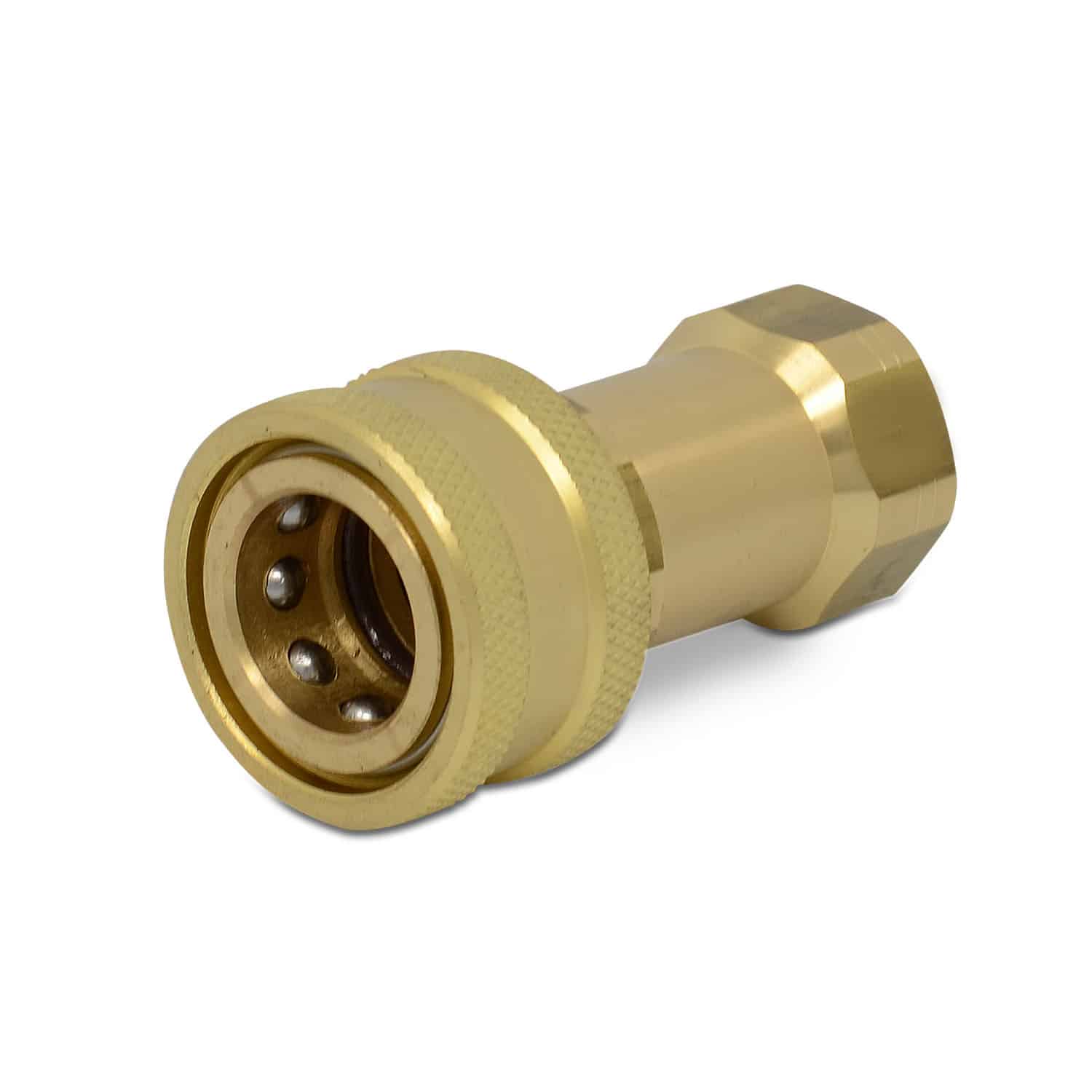

1/2″ NPT ISO 7241-B Brass Quick Disconnect Hydraulic Female Coupler

1/4″ NPT ISO 7241-B Brass With Stainless Steel Valve Quick Disconnect Hydraulic Female Coupler

Name: 1/4" NPT ISO 7241-B Brass With Stainless Steel Valve Quick Disconnect Hydraulic Female Coupler
SKU: BB14F-04N
Price: 12.95 USD
Availability: OutOfStock

$12.95

FREE SHIPPING

1/4″ NPT ISO 7241-B Brass Quick Disconnect Hydraulic Female Coupler

Out of stock

SKU: BB14F-04N Categories: Brass, Female Couplers, ISO 7241-B Quick Couplers Tags: 1/4" Body, 1/4" NPT, Female Coupler, ISO 7241-B

SKU: BB14F-04N

Size: 1/4″ Body, 1/4″ NPT Thread, Poppet Valve

Features:

Body Material: Brass material for corrosion resistance
Spring Material: 304 Stainless Steel
Locking Ball Material: 316 Stainless Steel
Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
Interchangeable with all ISO 7241 B series couplings
3,000 PSI Rating
Nominal Flow Rate: 3.17 GPM
Max Flow Rate: 6.34 GPM
Seal Type: Viton FKM
Temperature Range: -15°F to +400°F
Female Face Diameter 1.1” (27.94mm)
Female Length: 2.26” (57.4mm)
Hex: 0.74” (18.79mm)

Applications:

Hydraulic fluids
Water
Diesel / Petroleum

Interchangeable with:

Manufacturer	Female
SUMMIT	BB14F-04N
Parker 60 Series	BH2-60
Safeway BS10 Series	BS105-2
Faster HNV Brass	HNV 14 NPT F 5V
Snap-Tite 72 Series	B72C4-4F
Stucchi IRBO Series	F IRBO14 NPT 804501102
Dixon H-Series	2HF2-B
Eaton HK Series	B2H16
DNP HNV Series	HNV-B-04-04-C-NPT
