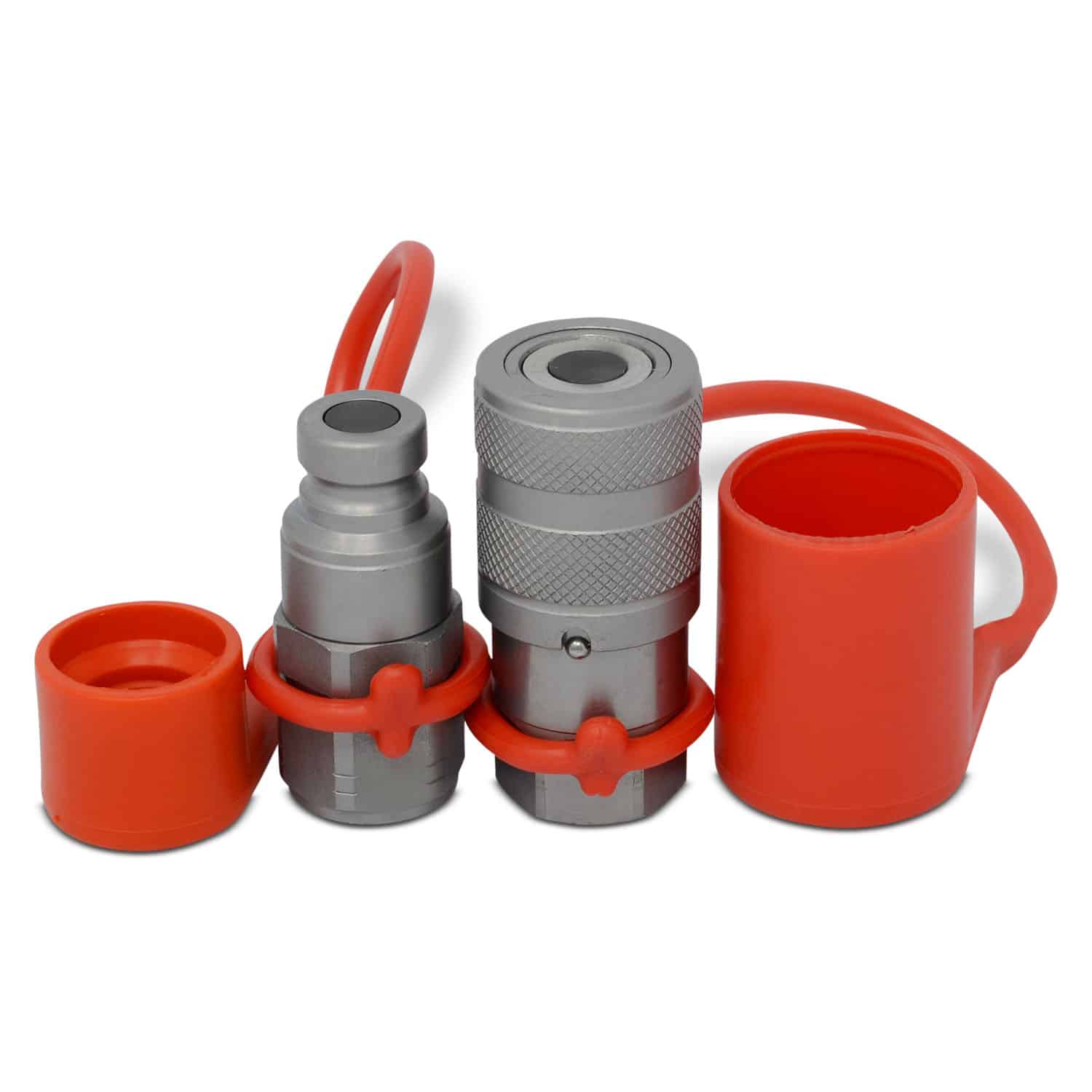

1/4″ Flat Face Hydraulic Quick Connect Coupler Set, 3/8″ SAE Thread

SKU: FF14-06S-SET

Size: 1/4″ Body with 3/8″ SAE Thread

Features:

• Heavy Duty Design with 7350 PSI Rating
• Max Flow Rate: 6.34 GPM
• Locking sleeve helps prevent accidental disconnects
• Compact profile with high flow performance
• Harden steel construction with anti-corrosive plating
• Sleeves are hardened to resist deformation and maximize life of the coupler
• Valve design that allows for a minimal pressure drops and one hand operation
• Seals are rated for operating temperatures up to 250°F
• Female Face Diameter: 1.10” (28mm)
• Male Face Diameter: 0.64″ (16mm)
• Hex: .87” (30mm)

Interchangeable with:
