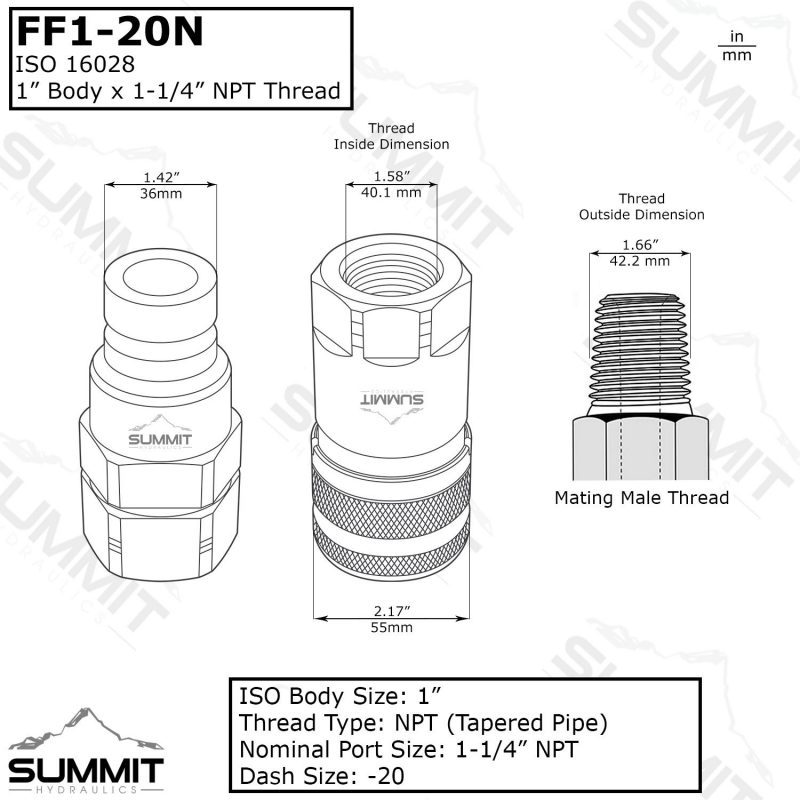

1″ Flat Face High Flow Hydraulic Quick Connect Coupler Set, 1-1/4″ NPT Thread

SKU: FF1-20N-SET

Size: 1″ Body with 1-1/4″ NPT Thread

Features:

• Heavy Duty Design with 5076 PSI Rating
• Max Flow Rate: 73.97 GPM
• Locking sleeve helps prevent accidental disconnects
• Compact profile with high flow performance
• Harden steel construction with anti-corrosive plating
• Sleeves are hardened to resist deformation and maximize life of the coupler
• Valve design that allows for a minimal pressure drops and one hand operation
• Seals are rated for operating temperatures up to 250°F

Cross Reference:

Kit Includes:

• 1 Female Coupler
• 1 Male Nipple
• 1 Female Dust Cap
• 1 Male Dust Cap
