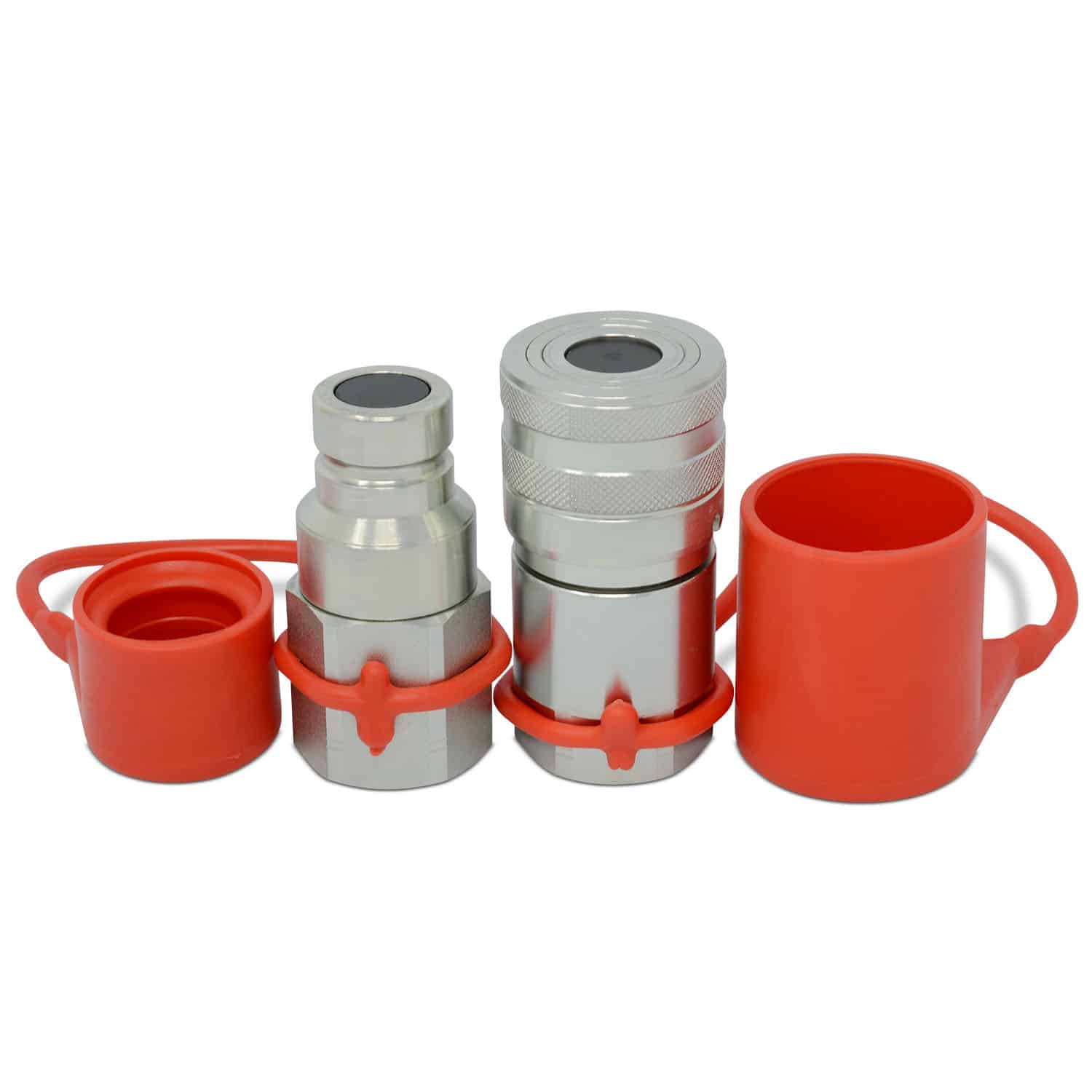

3/4″ Flat Face High Flow Hydraulic Quick Connect Coupler Set, 1″ SAE Thread

Name: 3/4" Flat Face High Flow Hydraulic Quick Connect Coupler Set, 1" SAE Thread
SKU: FF34-16S-SET
Price: 84.95 USD
Availability: InStock

$84.95

Free Shipping

In stock

SKU: FF34-16S-SET Categories: 3/4" Body, Coupler Sets, Flat Face ISO 16028 Quick Couplers Tags: 1" SAE, 3/4" Body, Coupler Set, Flat Face Coupler

SKU: FF34-16S-SET

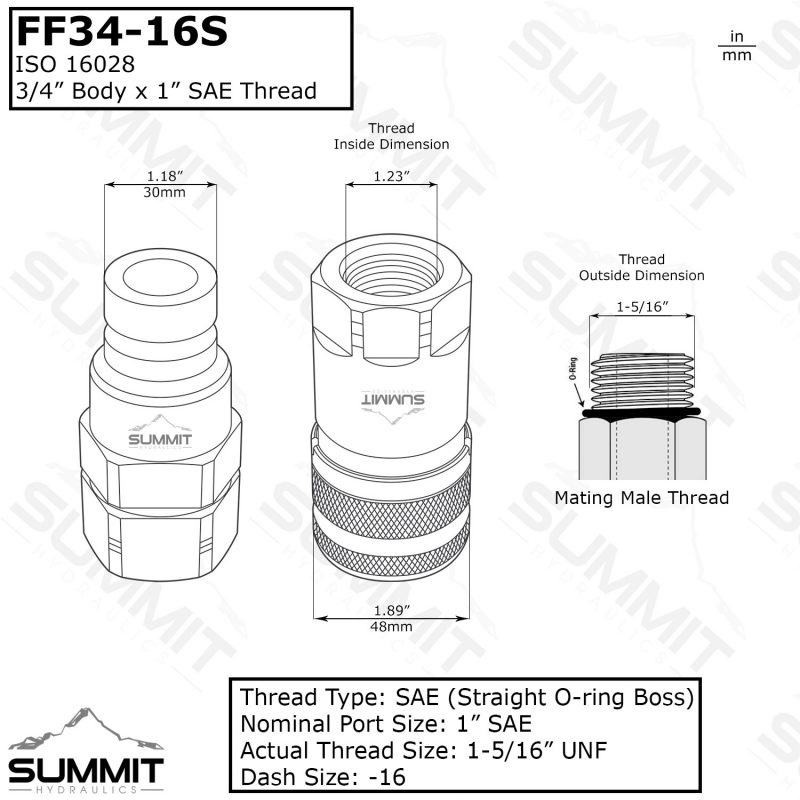

Size: 3/4″ Body with 1″ SAE (1 15/16-12 UNF female ORB) Thread, also know as Dash -16

Features:

Heavy Duty Design with 5076 PSI Rating
Max Flow Rate: 52 GPM
Locking sleeve helps prevent accidental disconnects
Compact profile with high flow performance
Harden steel construction with anti-corrosive plating
Sleeves are hardened to resist deformation and maximize life of the coupler
Valve design that allows for a minimal pressure drops and one hand operation
Seals are rated for operating temperatures up to 250°F

Interchangeable with:

Manufacturer	Male	Female
SUMMIT	FF34M-16S	FF34F-16S
Safeway FFE49 Series	FFE491-6-16	FFE495-6-16
Faster FFH Series	FFH12 1SAE M	FFH12 1SAE F
Eaton Aeroquip FD89	FD89-1004-16-12	FD89-1005-16-12
Snap Tite 74 Series	74N12-16EF	74C12-16EF
Stucchi FIRG Series	800804013	800804012
DNP PLT4 Series	FF-HPG-12-16N-SAE	FF-HPG-12-16C-SAE

Weight	6 lbs
Dimensions	6 × 5 × 4 in
ISO Standard	16028
Style	Flat Face
ISO Body Size	3/4"
Body Size	3/4"
Thread Type	SAE/ORB
Thread Size	1"
Body Material	Hardened Steel
Locking Type	Ball
Coupling	Set
