SKU: FF38-06N-SET

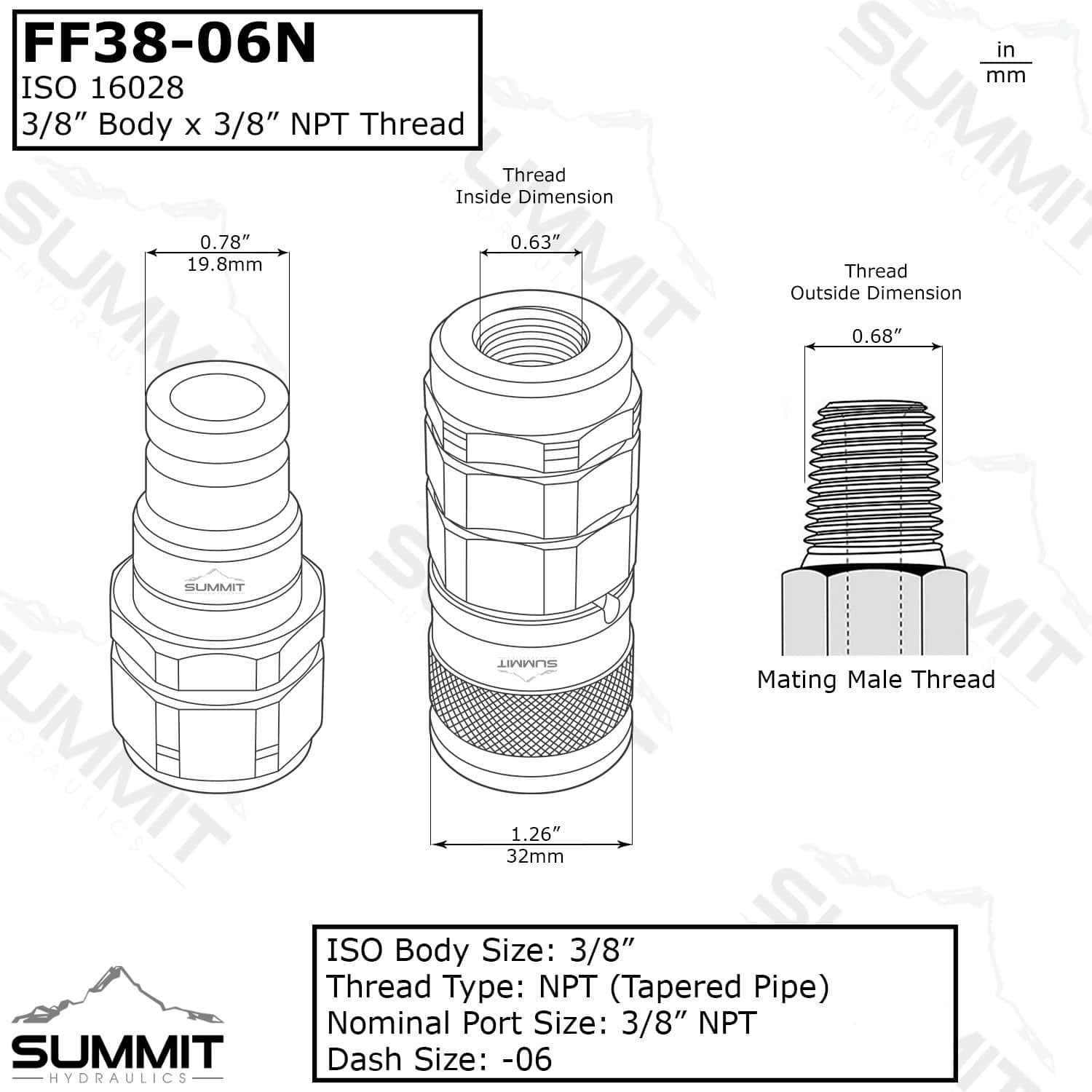

Size: 3/8″ Body with 3/8″ NPT Thread
Features:
- Heavy Duty Design with 5,076 PSI Rating
- Max Flow Rate: 12.15 GPM
- Locking sleeve helps prevent accidental disconnects
- Compact profile with high flow performance
- Harden steel construction with anti-corrosive plating
- Sleeves are hardened to resist deformation and maximize life of the coupler
- Valve design that allows for a minimal pressure drops and one hand operation
- Seals are rated for operating temperatures up to 250°F
Interchangeable with:
| Manufacturer | Male | Female |
| SUMMIT | FF38M-06N | FF38F-06N |
| Parker FE Series | FEM-372-6FP | FEM-371-6FP |
| Safeway FFE49 Series | FF491-3 | FF495-3 |
| Faster FFH Series | FFH06 38NPT M | FFH06 38NPT F |
| Eaton Aeroquip FD89 | FD89-1002-06-06 | FD89-1001-06-06 |
| Snap Tite 74 Series | 74N6-6F | 74C6-6F |
| Stucchi FIRG Series | 800801005 | 800801004 |
| Dixon HT Series | HT3F3 | 3HTF3 |
| DNP PLT4 Series | FF-HPG-06-06N-NPT | FF-HPG-06-06C-NPT |
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 5 × 4 in |
| ISO Standard | |
| Style | Flat Face |
| Body Size | 3/8" |
| Thread Type | |
| Thread Size | 3/8" |
| Coupling | |
| Body Material | Hardened Steel |
| Locking Type | Ball |
