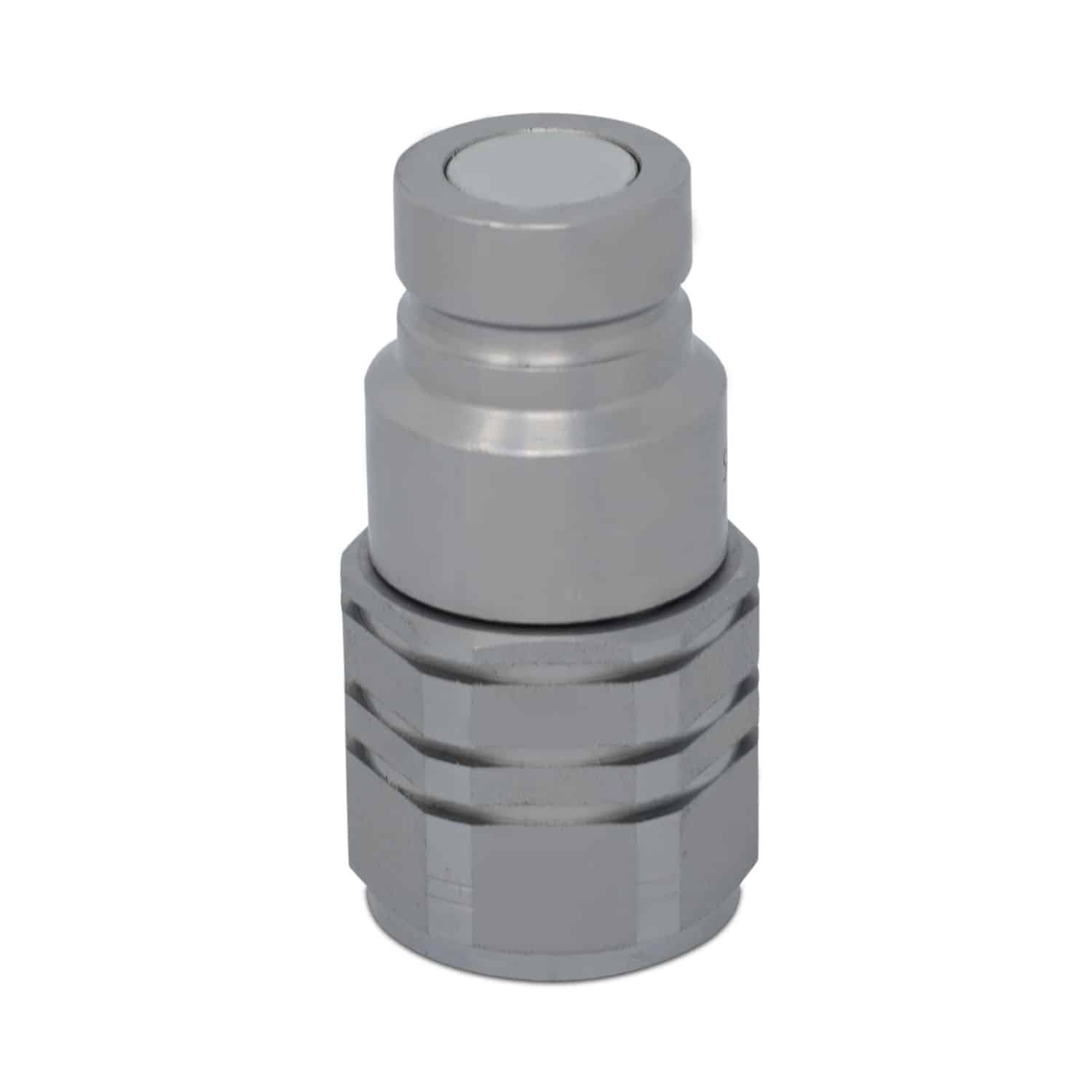

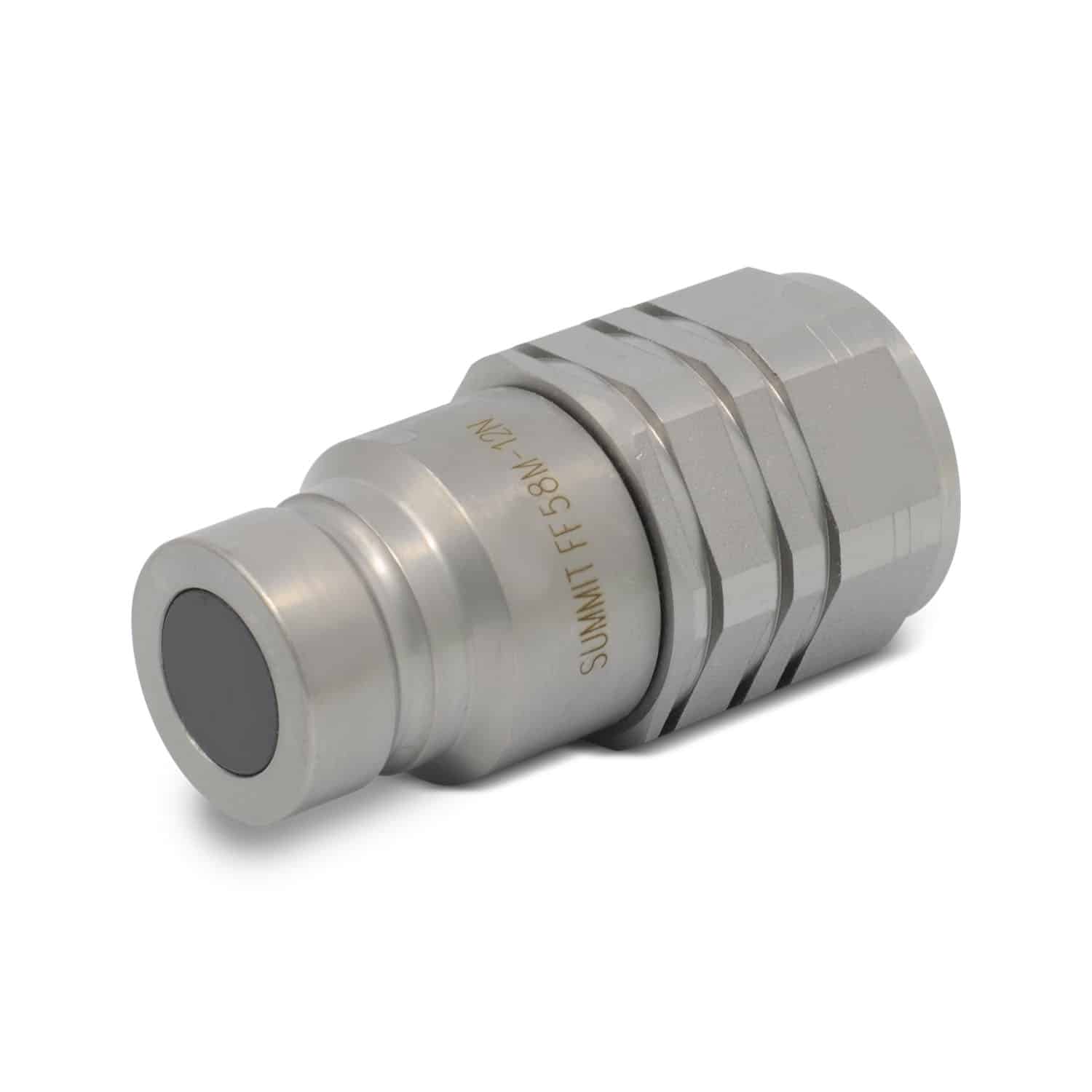

5/8″ Flat Face High Flow Hydraulic Quick Connect Male Coupler, 3/4″ SAE Thread

SKU: FF58M-12S

Size: 5/8″ Body with 3/4″ SAE Thread

Benefits:

• Flush face valve design minimizes fluid loss and air inclusion
• Zinc-nickel plating provides superior corrosion resistance
• Hardened steel construction with hardened sleeves
• Allows for minimal pressure drops
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 16028 standard couplings

Features:

• 5,076 PSI rating
• 39.63 GPM Max Flow Rate
• 20 GPM Nominal Flow Rate
• Buna-N Seals with Teflon backup ring can operate up to 250° F
• Male Face Diameter: 1.06” (27mm)
• Male Length: 2.87” (73mm)
• Hex: 1.42” (36mm)

Interchangeable with:
