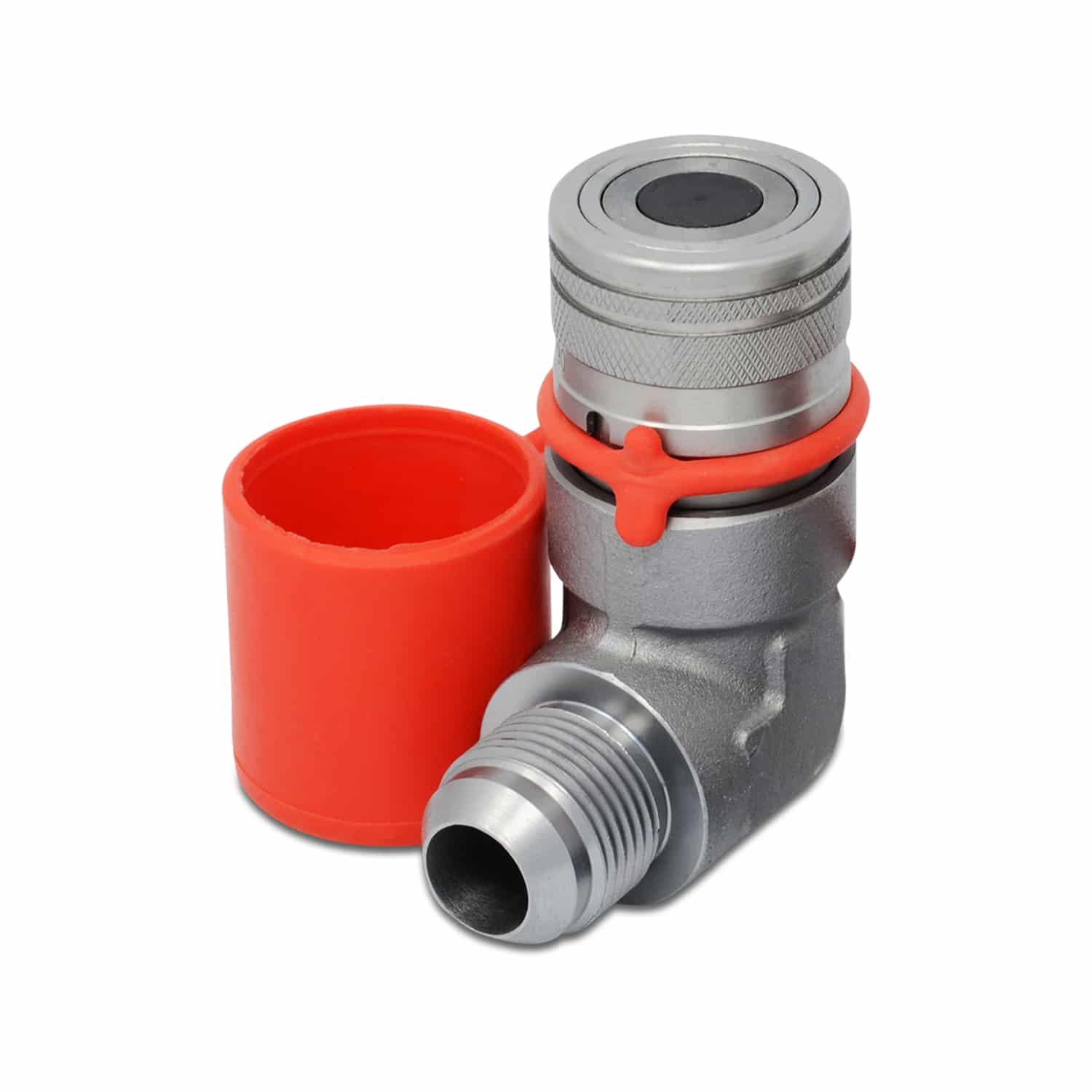

90 Degree Female Flat Face Hydraulic Quick Connect Coupler Set, 3/4″ JIC Male Thread

SKU: FF12F-12J-90

ISO Body Size: 1/2”

Port Thread: Male 3/4” JIC (#12 JIC)

Benefits:

• 90 Degree connection angle prevents damage to hydraulic lines
• Design allows for easy low profile mounting without the need for additional fittings
• Ideal for adding Grapple on Skid Steer or on boom arm of an excavator
• Flush face valve design minimizes fluid loss and air inclusion
• Locking sleeve to prevent accidental disconnection
• Zinc-nickel plating provides superior corrosion resistance
• Hardened steel construction with hardened sleeves
• Allows for minimal pressure drops
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 16028 standard couplings

Features:

• 5,076 PSI rating
• 12 GPM Nominal Flow Rate
• Buna-N Seals with Teflon backup ring can operate up to 250° F
• Female Face Diameter: 1.50” (38mm)
• Female Length: 3.39” (86mm)
• Hex: 1.42” (36mm)
