CAD image of 1501-04-04-FG fitting

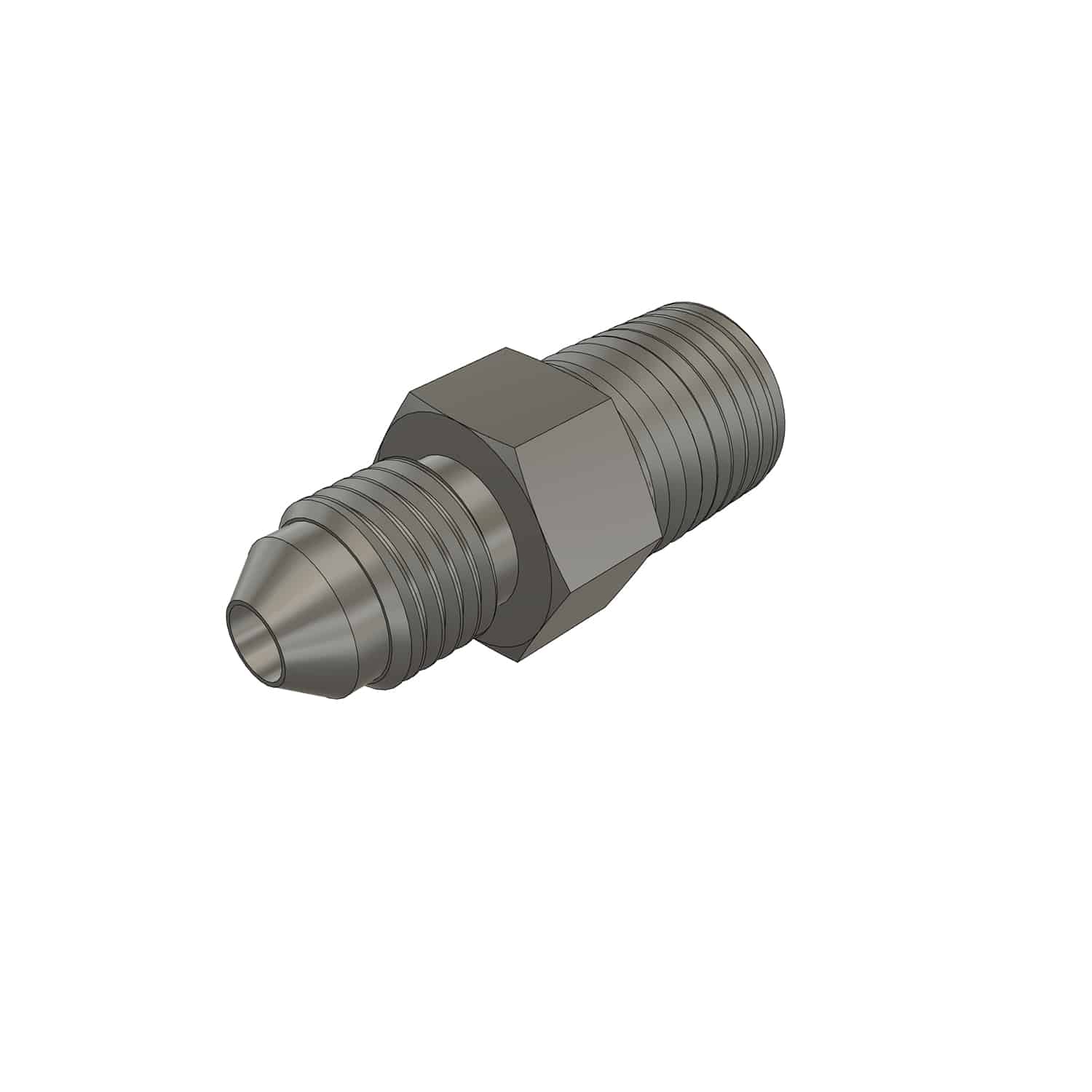

CAD image of 2404-04-04-FG fitting

CAD image of 1501-04-04-FG fitting

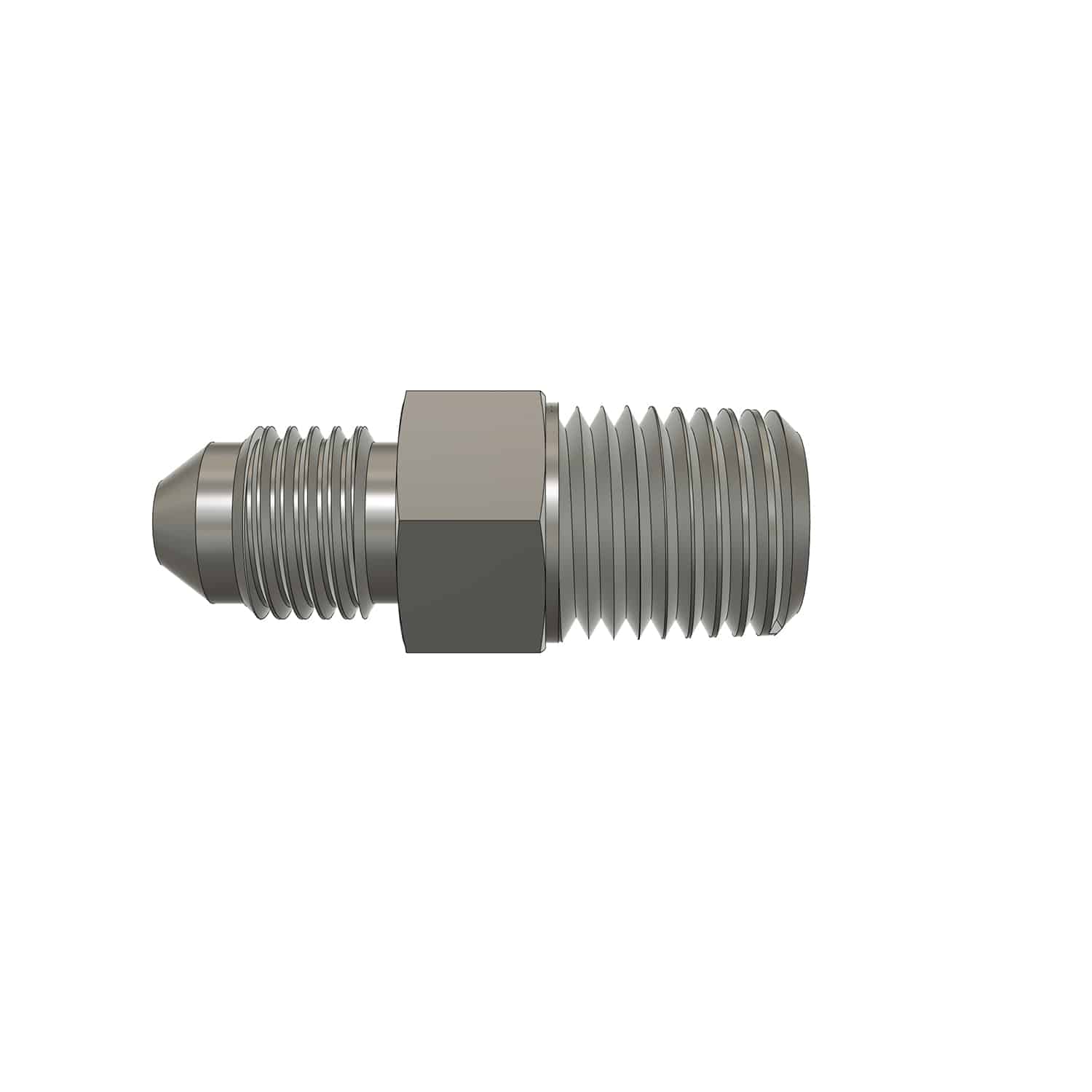

CAD image of 2404-04-04-FG fitting

Adapter, JIC Male x NPT Male

$2.49 – $5.69

Adapter Fitting JIC Male x NPT Male

FREE SHIPPING

Size

Clear

SKU: N/A Category: Straight Fittings

Adapter, JIC Male x NPT Male

Hydraulic Adapter Fitting

2404-04-04-FG	Adapter, 1/4″ JIC Male x 1/4″ NPT Male
2404-04-06-FG	Adapter, 1/4″ JIC Male x 3/8″ NPT Male
2404-06-04-FG	Adapter, 3/8″ JIC Male x 1/4″ NPT Male
2404-06-08-FG	Adapter, 3/8″ JIC Male x 1/2″ NPT Male
2404-08-06-FG	Adapter, 1/2″ JIC Male x 3/8″ NPT Male
2404-08-12-FG	Adapter, 1/2″ JIC Male x 3/4″ NPT Male
2404-12-12-FG	Adapter, 3/4″ JIC Male x 3/4″ NPT Male

JIC 37° Flare

JIC Thread Chart

Inch size	Dash size	Thread Size	Male Thread O.D. (in)		Female thread I.D (in)
³⁄₈	-6	⁹⁄₁₆ – 18	⁹⁄₁₆	0.56	¹⁷⁄₃₂	0.51
¹⁄₂	-8	³⁄₄ – 16	³⁄₄	0.75	¹¹⁄₁₆	0.69
⁵⁄₈	-10	⁷⁄₈ – 14	⁷⁄₈	0.88	¹³⁄₁₆	0.81
³⁄₄	-12	1 ¹⁄₁₆ – 12	1 ¹⁄₁₆	1.06	1	0.98
⁷⁄₈	-14	1 ³⁄₁₆ – 12	1 ³⁄₁₆	1.19	1 ¹⁄₈	1.1
1	-16	1 ⁵⁄_16-12	1 ⁵⁄₁₆	1.31	1 ¹⁄₄	1.23

National Pipe Thread (NPT):

NPT Thread Chart

Inch size	Dash size	Threads per Inch	Male Thread O.D. (in)		Female thread I.D (in)
¹⁄₈	-2	27	¹³⁄₃₂	0.41	³⁄₈	0.38
¹⁄₄	-4	18	¹⁷⁄₃₂	0.54	¹⁄₂	0.49
³⁄₈	-6	14	¹¹⁄₁₆	0.68	⁵⁄₈	0.63
¹⁄₂	-8	14	²⁷⁄₃₂	0.84	²⁵⁄₃₂	0.77
³⁄₄	-12	14	1 ¹⁄₁₆	1.05	1	0.98
1	-16	11 ¹⁄₂	1 ⁵⁄₁₆	1.32	1 ¹⁄₄	1.24

Weight	.75 lbs
Size	1/4" JIC Male x 1/4" NPT Male, 1/4" JIC Male x 3/8" NPT Male, 3/8" JIC Male x 1/4" NPT Male, 3/8" JIC Male x 1/2" NPT Male, 1/2" JIC Male x 3/8" NPT Male, 1/2" JIC Male x 3/4" NPT Male, 3/4" JIC Male x 3/4" NPT Male, 1/2" JIC Male x 1/2" NPT Male, 3/8" JIC Male x 3/8" NPT Male, 5/8" JIC Male x 1/2" NPT Male
