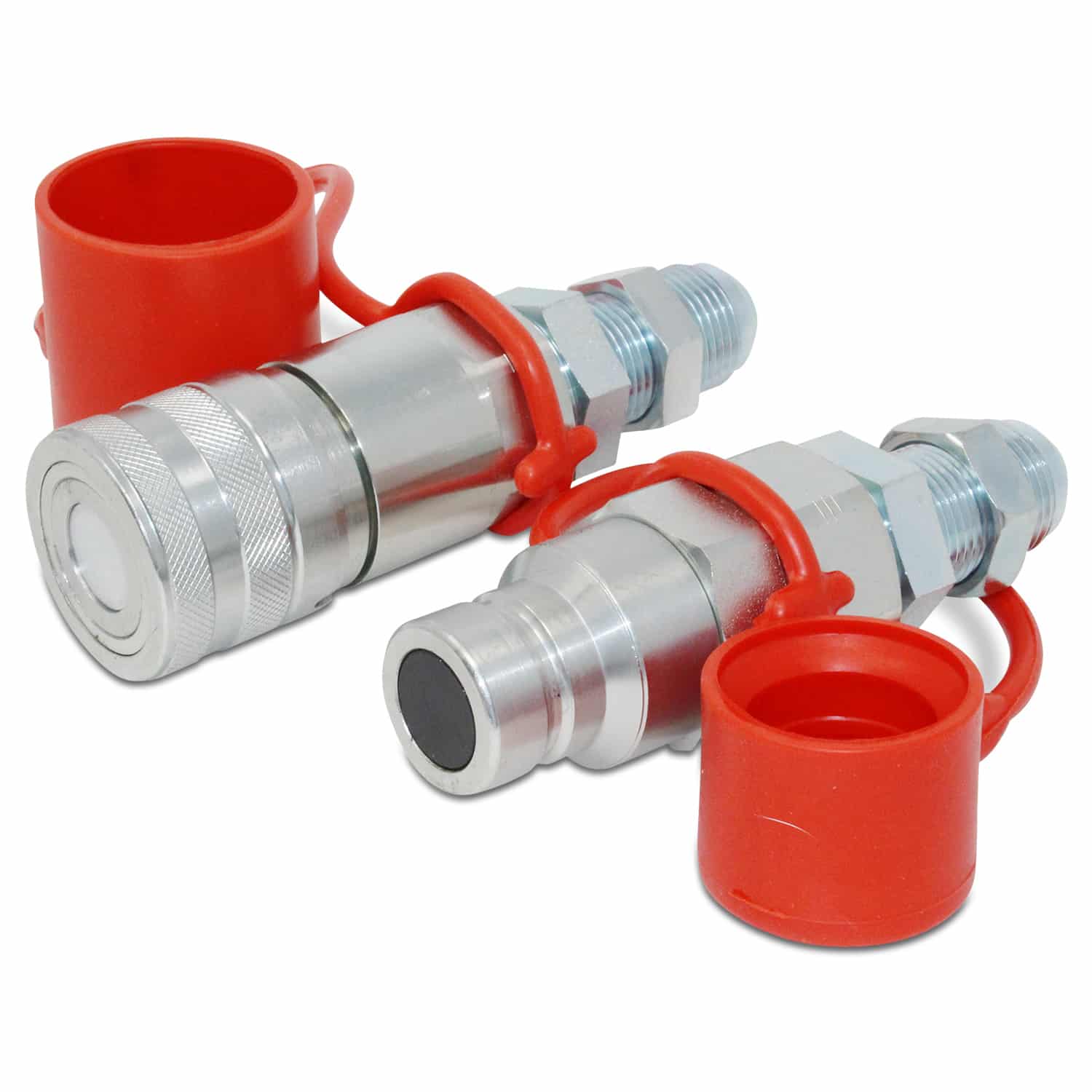

Flat Face Hydraulic Quick Connect Coupler Set, 3/4″ Body x #12 JIC Bulkhead Mount

SKU: FF34-12J-SET

Body Size: 3/4″

Thread: 3/4″ JIC Bulkhead

• Standard Skid Steer quick coupler (3/4” Body) interchangeable with ISO 16028 Flat Face Couplers
• #12 JIC Bulkhead adapter which allows direct mounting on machine
• Heavy Duty Design with 6100 PSI Rating
• Max Flow Rate: 52 GPM

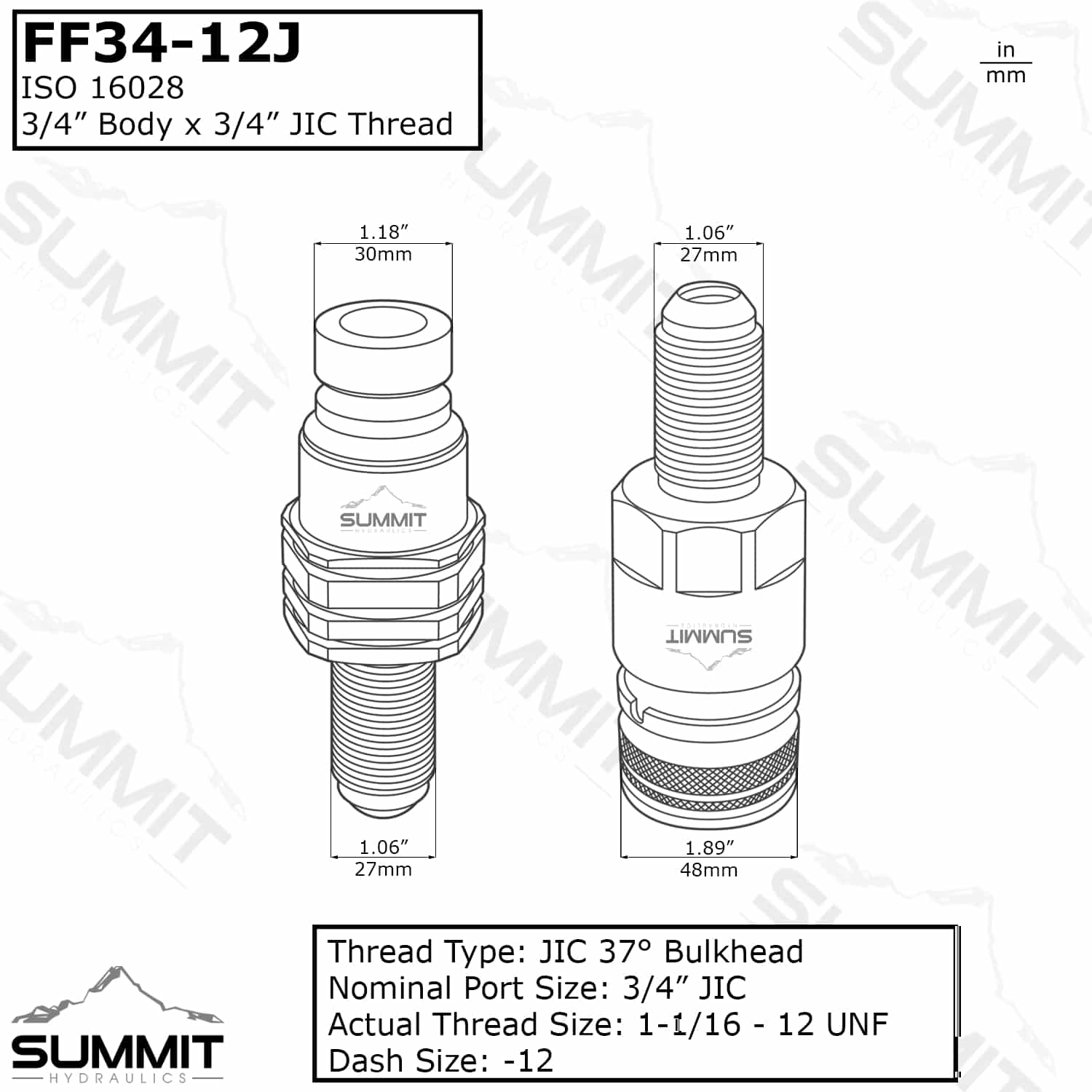

• Male Face Diameter: 1.18″ (30mm)
• Female Face Diameter: 1.89″ (48mm)
• Locking sleeve helps prevent accidental disconnect
