Flat Face Hydraulic Quick Connect Coupler Set, 3/4″ SAE Thread

Flat Face Hydraulic Quick Connect Coupler Set, 3/4″ SAE Thread

SKU: FF12-12S-SET

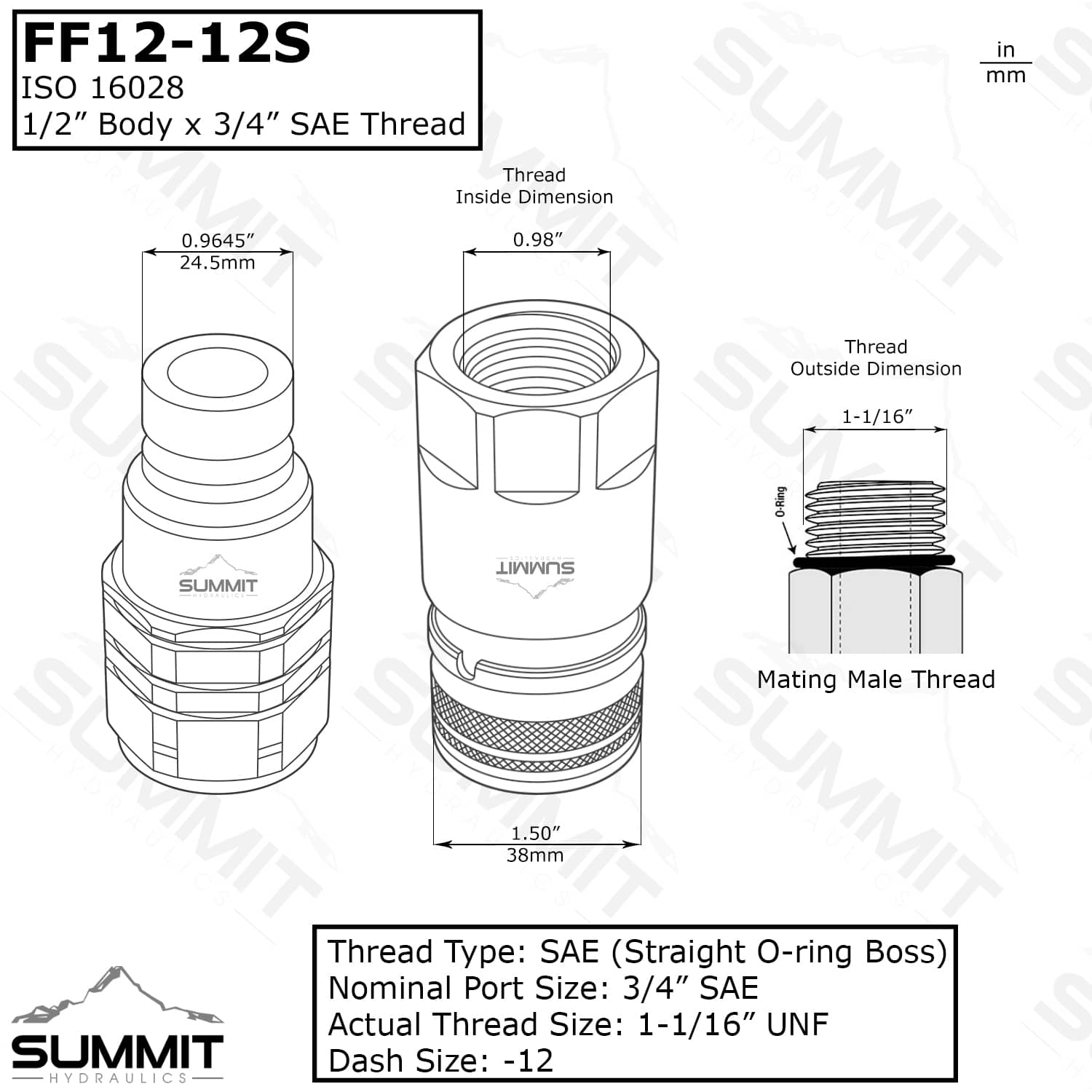

Size: 1/2″ ISO Body with 3/4″ SAE (1-1/16″ Female O-Ring Boss Thread)

Features:

• Heavy Duty Design with 5076 PSI Rating
• Locking sleeve helps prevent accidental disconnects
• Compact profile with high flow performance
• Harden steel construction with anti-corrosive plating
• Sleeves are hardened to resist deformation and maximize life of the quick coupler
• Valve design that allows for a minimal pressure drops and one hand operation
• Seals are rated for operating temperatures up to 250°F

Interchangeable with:

Compatible With:

• Bobcat (2001 or older): 7753, 773, 863, 873, 963
• John Deere: 325, 328, 332
• GEHL: 4640, 4840, 5640, 6640
• Volvo: MC90, MC110
• ASV: RC100

Looking for a different hydraulic quick disconnect coupler? Look at our selection of 1/2″ body Flat Face couplers here!
