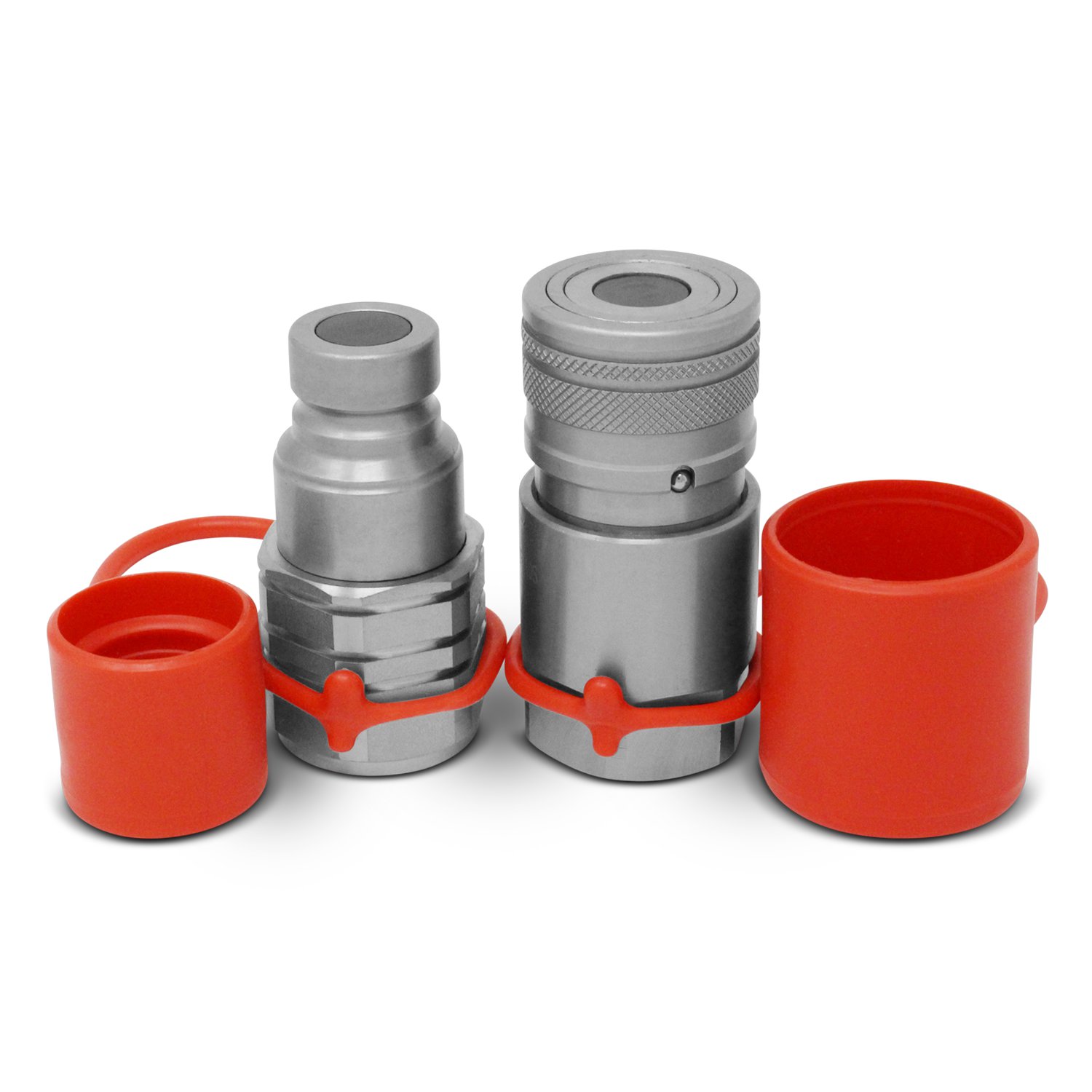

Flat Face Hydraulic Quick Connect Coupler Set, 5/8″ SAE Thread

Flat Face Hydraulic Quick Connect Coupler Set, 5/8″ SAE Thread

SKU: FF12-10S-SET

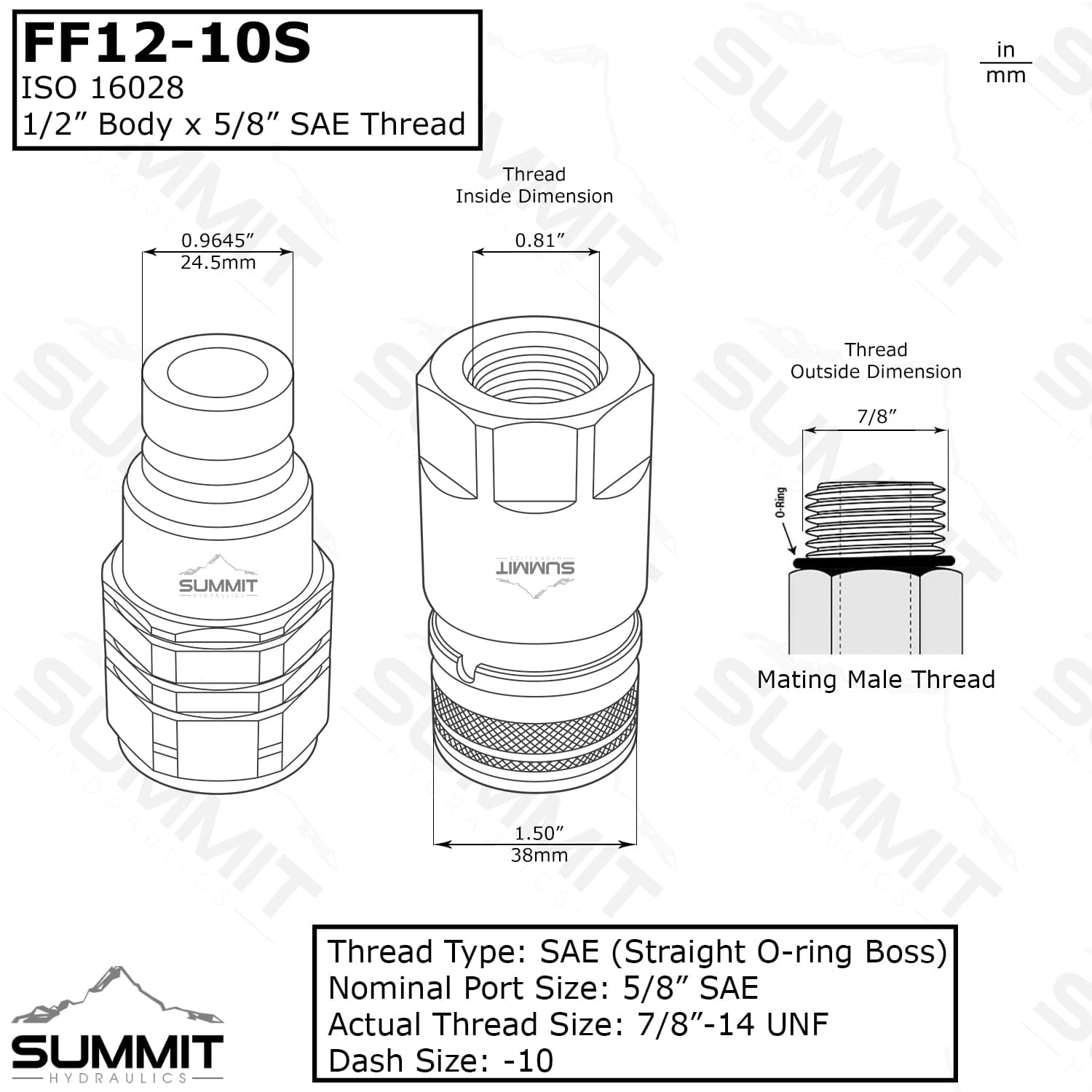

Size: 1/2″ Body with 5/8″ SAE (7/8″-14 UNF Female ORB) Thread, also know as Dash -10

Features:

• Heavy Duty Design with 5076 PSI Rating
• Locking sleeve helps prevent accidental disconnects
• Compact profile with high flow performance
• Harden steel construction with anti-corrosive plating
• Sleeves are hardened to resist deformation and maximize life of the coupler
• Valve design that allows for a minimal pressure drops and one hand operation
• Seals are rated for operating temperatures up to 250°F

Interchangeable with:

Compatible With:

• Bobcat (2001 or older): 463, 553, 753, 763, 853
• CAT: 216B, 226B, 232B, 236B, 242B, 248B, 252B, 262B, 268B
• New Holland: LS140, LS150, LS160, LS170, LS180, LS185, LS190
• Case (2001 to 2003): 410, 420, 430, 435, 440, 445, 450, 465
• Case (2004 or Newer): 85XT, 90XT, 95XT
• Thomas: 85, 105, 137, 153, 175, 205, 250, 255, 320
• Volvo: MC60, MC70, MC80
• ASV: RC50, RC60, RC85

Looking for a different hydraulic quick disconnect coupler? Look at our selection of 1/2″ body Flat Face couplers here! If you do not need the full assembly, you can also find the male coupler and female coupler. All variants are available here through Summit Hydraulics.
