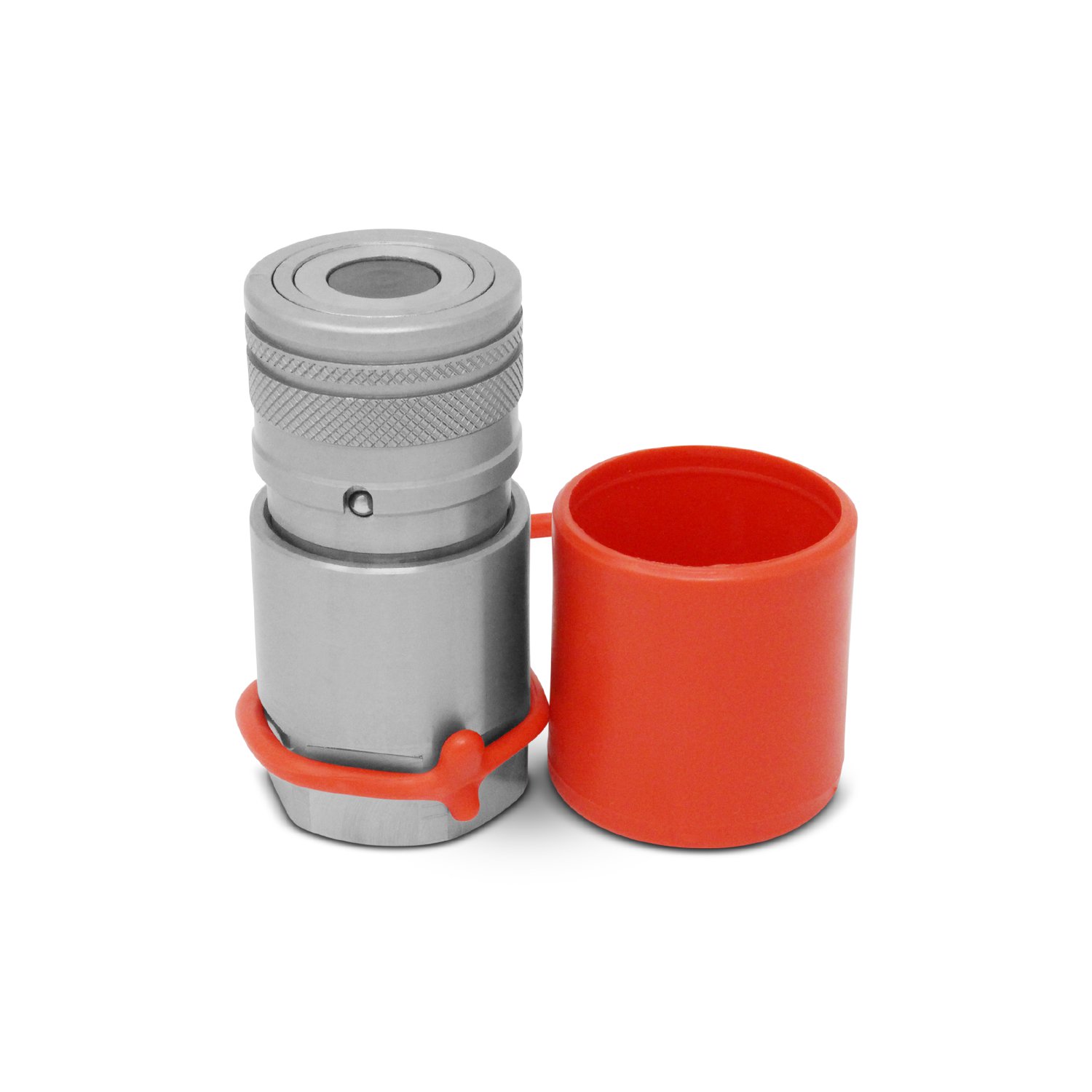

Flat Face Hydraulic Quick Connect Female Coupler, 3/4″ SAE Thread

SKU: FF12F-12S

ISO Body Size: 1/2”

Port Thread: 3/4″ SAE (1-1/16″ Female O-Ring Boss)

Benefits

• Flush face valve design minimizes fluid loss and air inclusion
• Locking sleeve to prevent accidental disconnection
• Zinc-nickel plating provides superior corrosion resistance
• Hardened steel construction with hardened sleeves
• Allows for minimal pressure drops
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 16028 standard couplings

Features

• 5,076 PSI rating
• 23.78 GPM Max Flow Rate
• 12 GPM Nominal Flow Rate
• Buna-N Seals with Teflon backup ring can operate up to 250° F
• Face Diameter: 1.50” (38mm)
• Length: 3.43” (87mm)
• Hex: 1.42” (36mm)

Cross Reference

Compatible With:

• Bobcat (2001 or older): 7753, 773, 863, 873, 963
• John Deere: 325, 328, 332
• GEHL: 4640, 4840, 5640, 6640
• Volvo: MC90, MC110
• ASV: RC100
