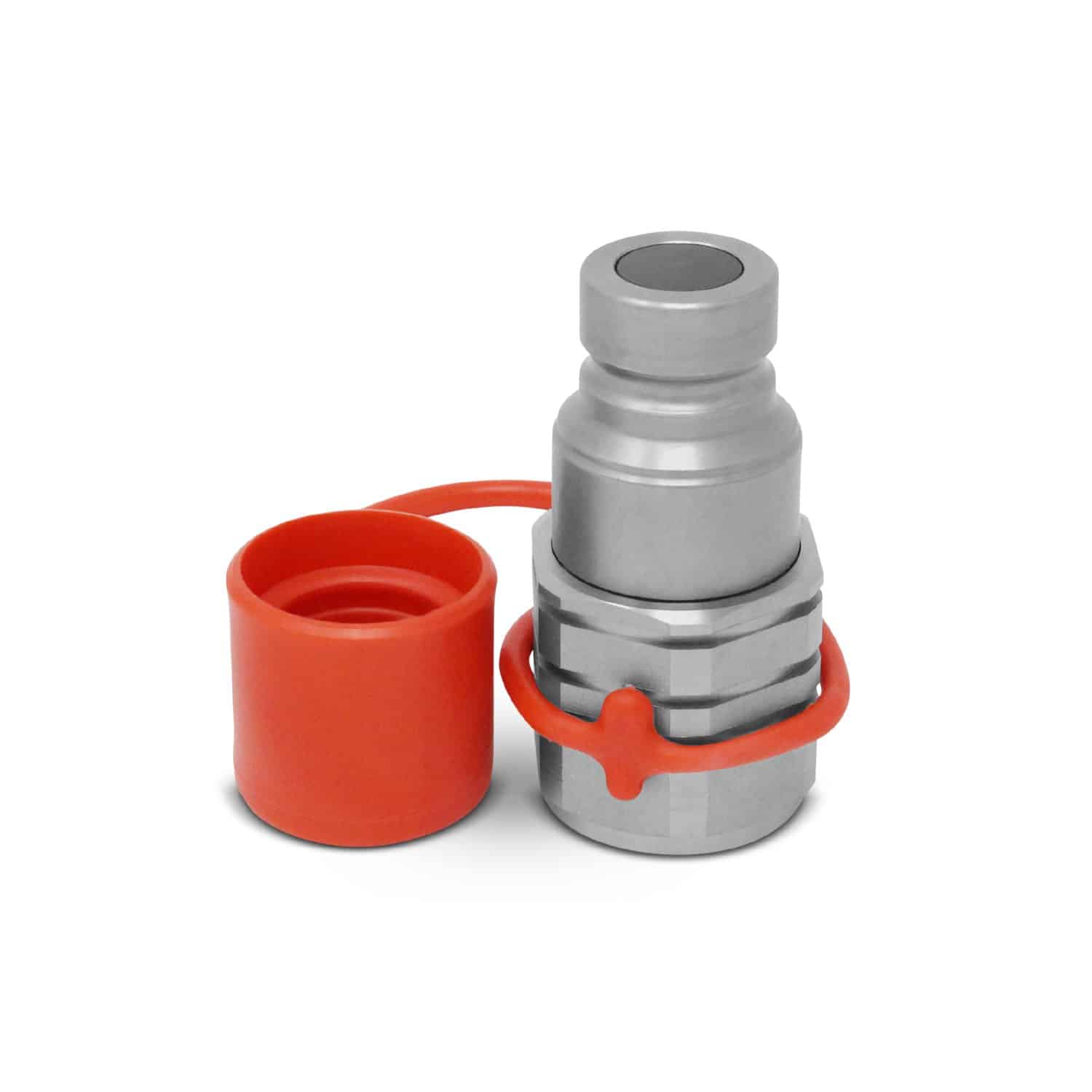

Flat Face Hydraulic Quick Connect Male Coupler, M22 Female Thread

SKU: FF12M-22M

ISO Body Size: 1/2”

Port Thread: M22 Female Thread

Benefits:

• Flush face valve design minimizes fluid loss and air inclusion
• Zinc-nickel plating provides superior corrosion resistance
• Hardened steel construction
• Allows for minimal pressure drops
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 16028 standard couplings

Features:

• 5,076 PSI rating
• 23.78 GPM Max Flow Rate
• 12 GPM Nominal Flow Rate
• Buna-N Seals with Teflon backup ring can operate up to 250° F
• Face Diameter: 0.94″ (24.5mm)
• Length: 2.87” (73mm)
• Hex: 1.41” (35mm)
