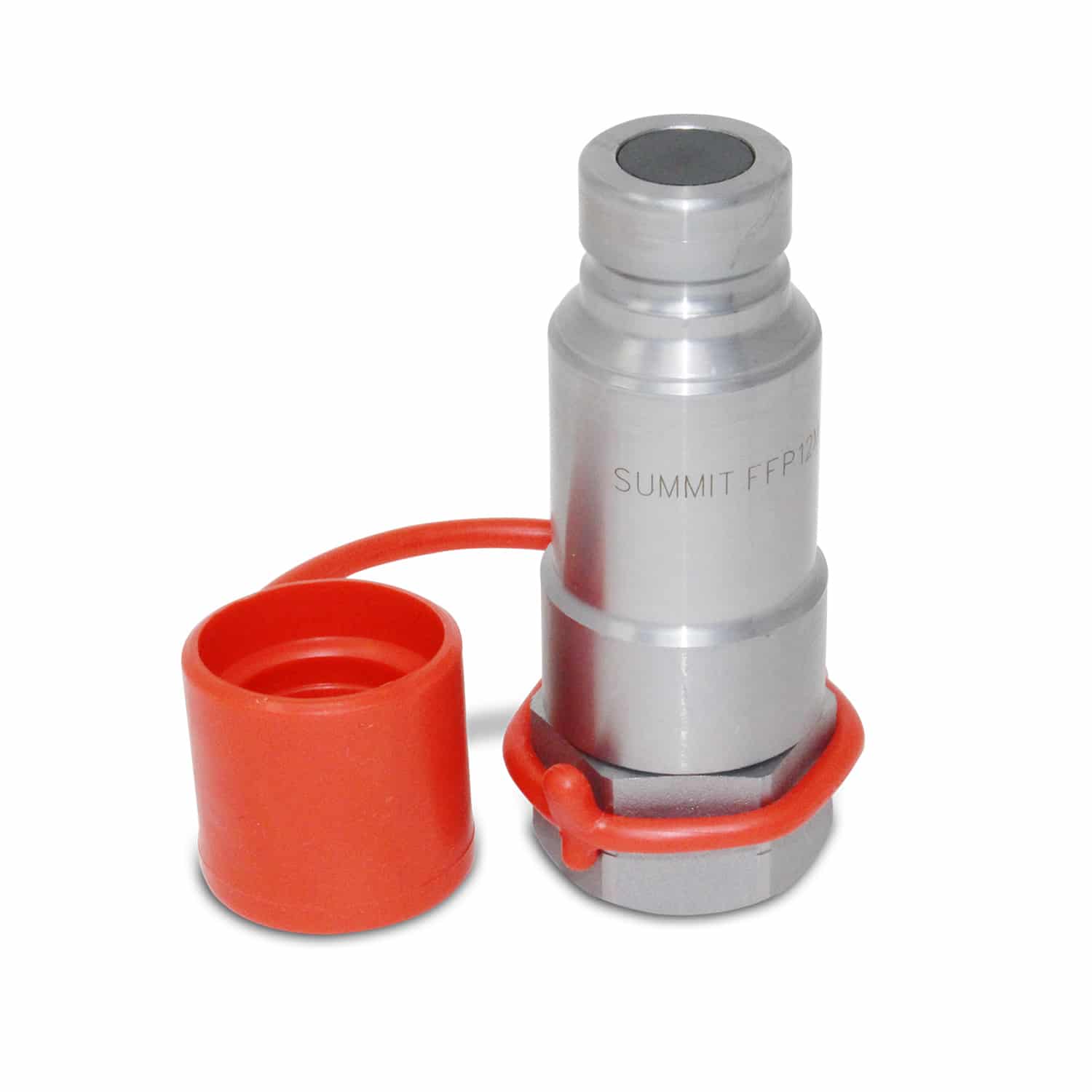

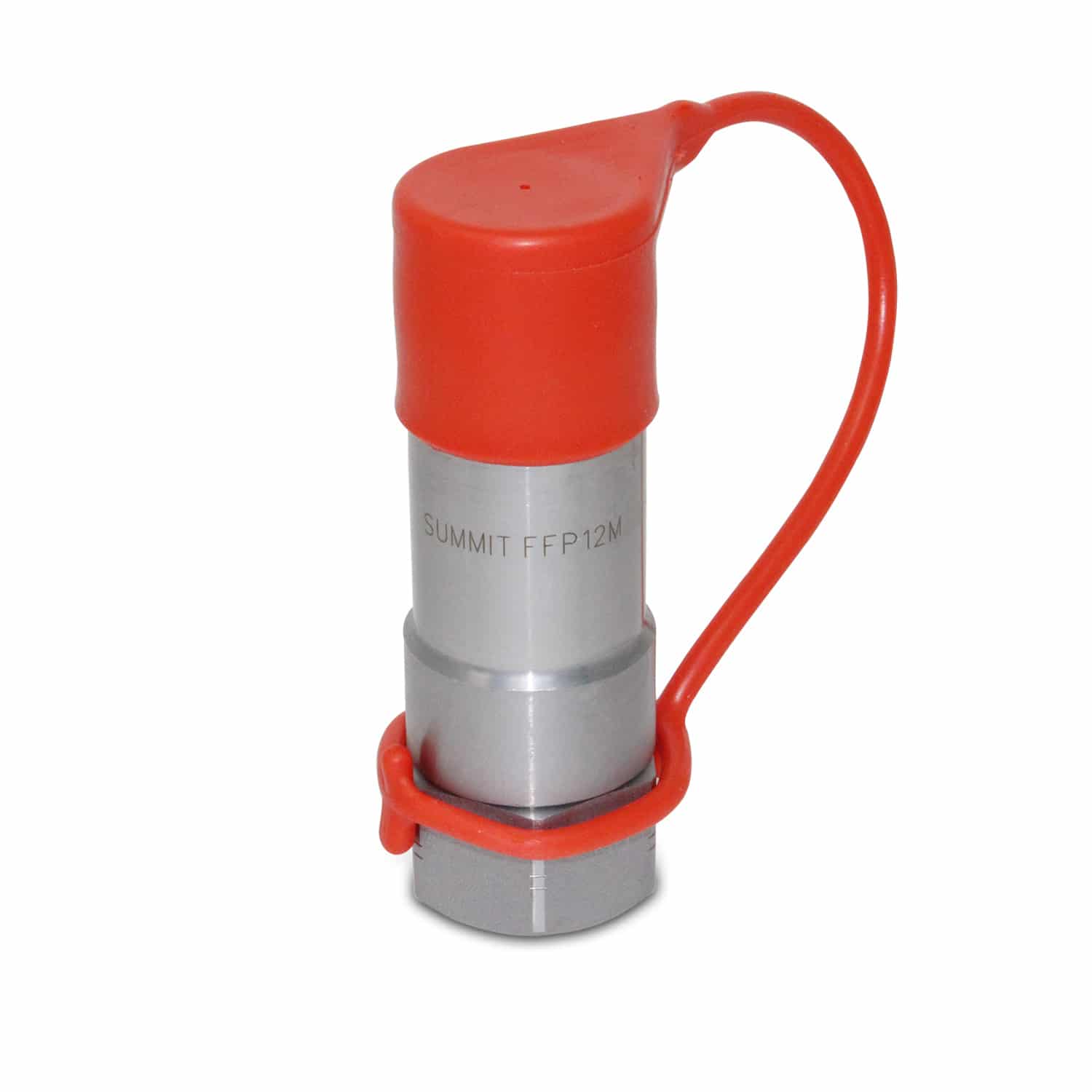

Flat Face Connect Under Pressure Hydraulic Quick Connect Male Coupler, 5/8″ SAE Thread

Flat Face Connect Under Pressure Quick Connect, 5/8″ SAE Thread

SKU: FFP12M-10S

ISO Body Size: 1/2”

Port Thread: 5/8” SAE

Benefits:

• Allows to connect to a hydraulic line that is under pressure
• Flush face valve design minimizes fluid loss and air inclusion
• Zinc-nickel plating provides superior corrosion resistance
• Hardened steel construction with hardened sleeves
• Allows for minimal pressure drops
• Easy single-handed push-connect design
• Nipple seal resists blow-outs
• Interchangeable with other ISO 16028 standard couplings

Features:

• 5,076 PSI rating
• 23.78 GPM Max Flow Rate
• 12 GPM Nominal Flow Rate
• Buna-N Seals with Teflon backup ring can operate up to 250° F
• Male Face Diameter: 0.94” (24.5mm)
• Male Length: 3.75” (95mm)
• Hex: 1.25” (32mm)
