Name: Hydraulic Multiplier Valve, SCV Splitter / Diverter with Couplers and Push Button Switch
SKU: HM2-08-CC
Availability: InStock
Rating: 5.00 (3 reviews)

Rated 5.00 out of 5 based on 3 customer ratings

$549.95 – $619.95

Free Shipping

Hydraulic Multiplier Valve, SCV Splitter / Diverter with Couplers and Push Button Switch

Voltage

Quick Couplers

Clear

SKU: HM2-08-CC Categories: Hydraulic Multipliers, Solenoid Hydraulic Multipliers Tags: 20 GPM, Push Button Control, R-HM-UNI, Solenoid Operated

SKU: HM2-08-CC

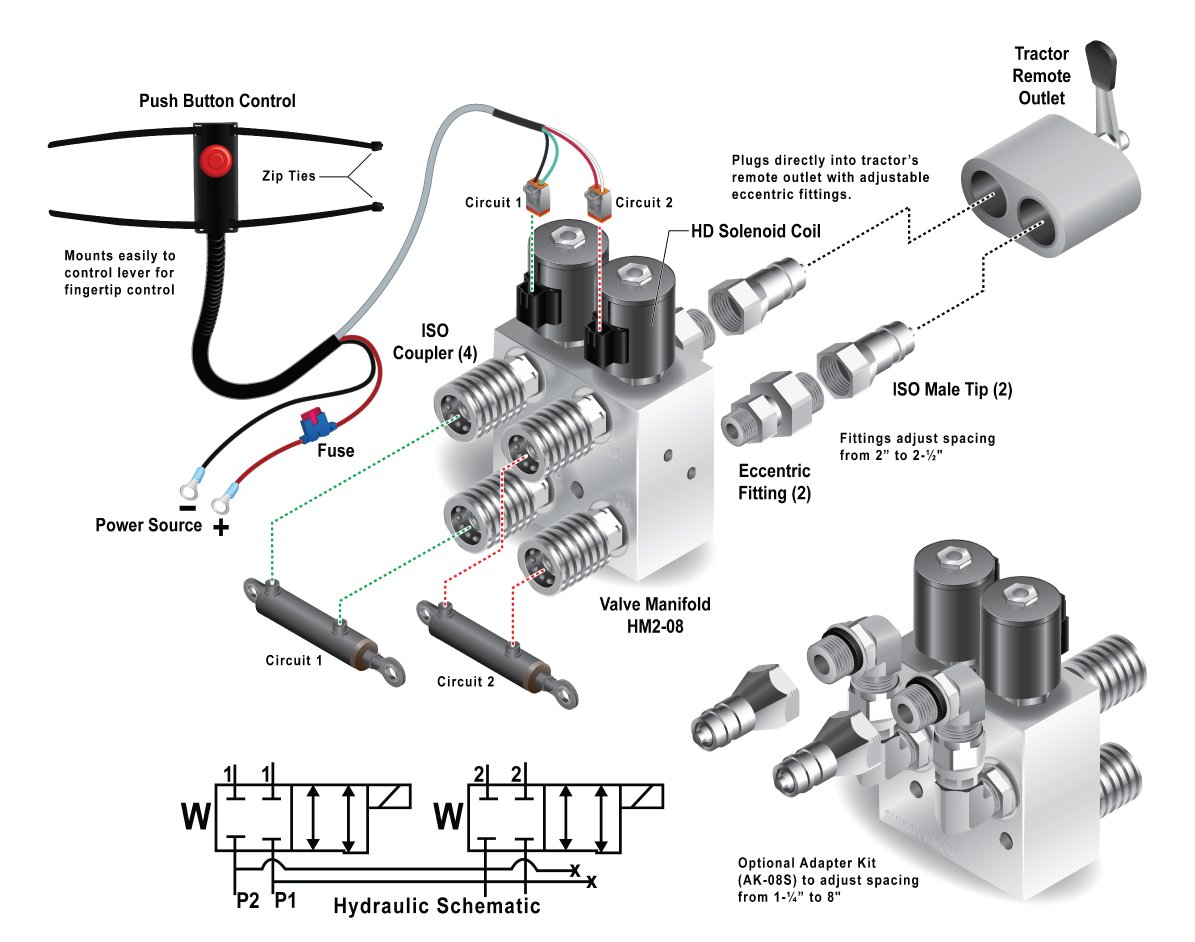

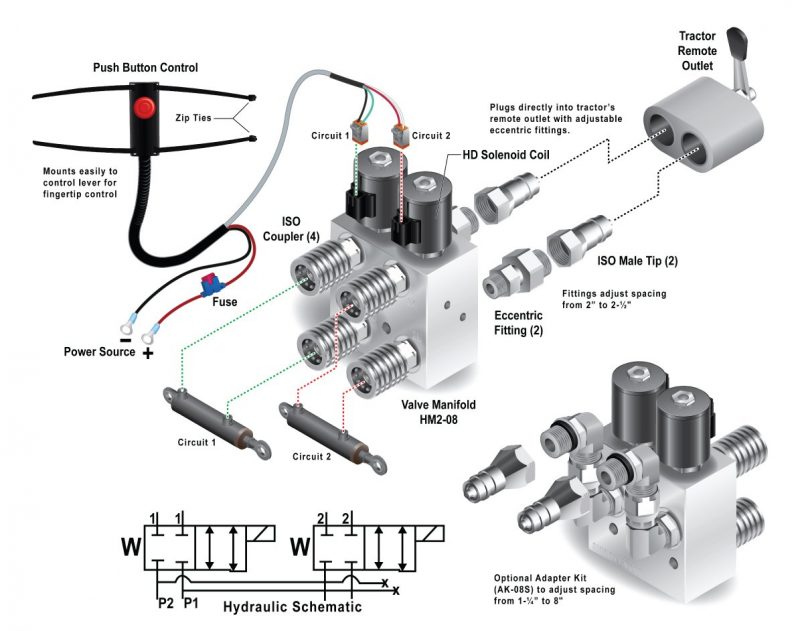

This solenoid operated valve multiplies your existing Hydraulic Outlets and allows you to control 2 circuits from the lever in your cab. It works on all ISO Hydraulic Systems and is easily transferable to multiple units.

Save money versus expensive factory add-ons!

Allows tractor float operation on selected circuits.
Works with Double or Single Acting Cylinders.
Can be used on Open, Closed or FPC hydraulic systems.
Capacity for up to 20 GPM Hydraulic Flow & 3000 PSI Hydraulic Systems.
12 Volt DC is required to operate the Electric Solenoids. 24 Volt coils are also available
Heavy duty chemical and weatherproof Solenoid Valves.
Anodized body provides long lasting protection from corrosion

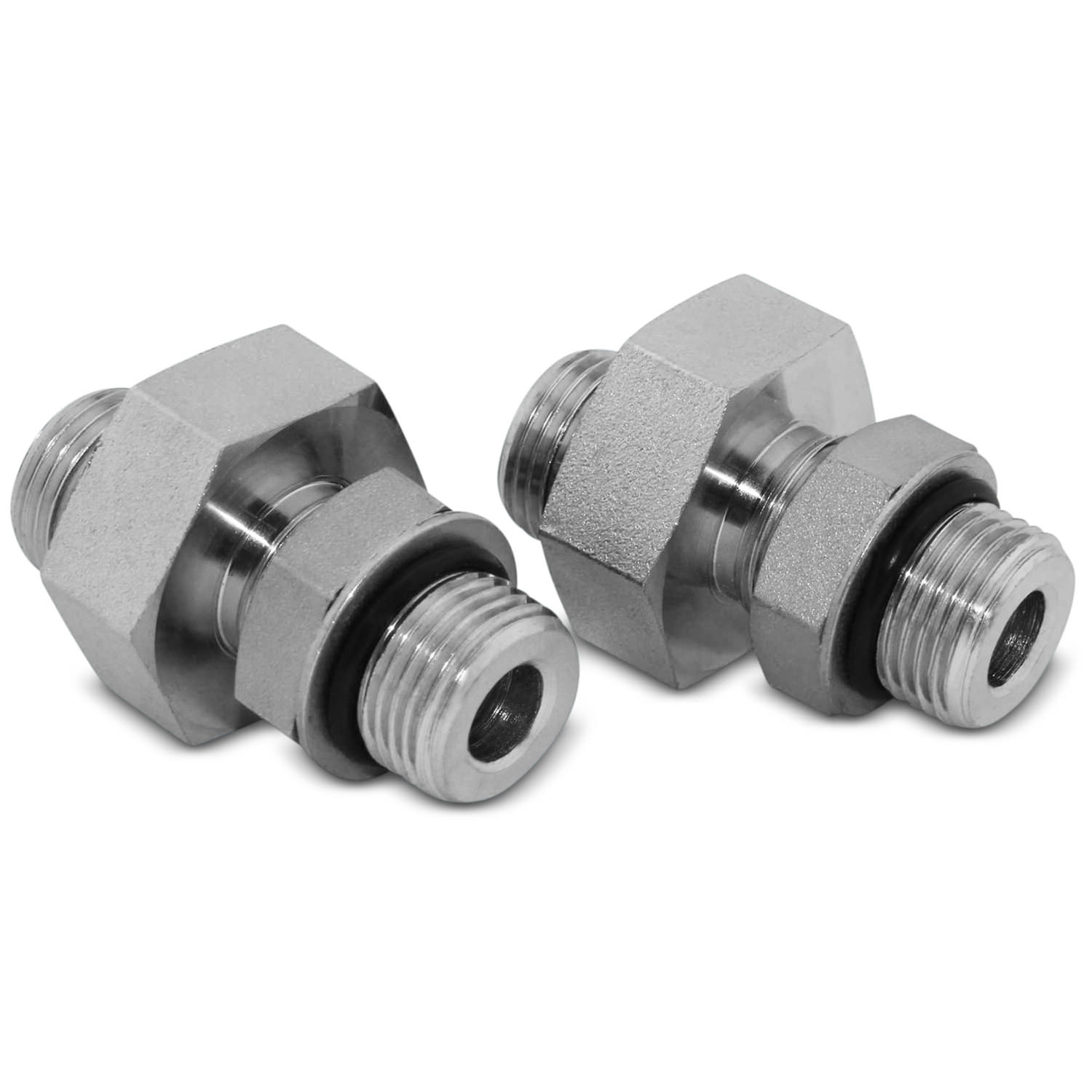

This kit comes with Custom Eccentric Fittings which will allow you to plug the valve directly into your tractors outlet. Since there is no standard for female ports on tractors, the fittings adjust to accommodate center to center dimensions as narrow as 2″ and as wide as 2-1/2″
The kit can also be mounted in a remote location on your tractor or implement by running two hydraulic lines from your unit to the multiplier valve.

Command Control:

Circuit one is normally live
Circuit two is activated only when control button is depressed. When the button is released, power automatically returns to circuit one.
Waterproof light touch push button switch helps prevent operator fatigue
Mounts easily to control lever for fingertip control
Adjust on the go for sequencing

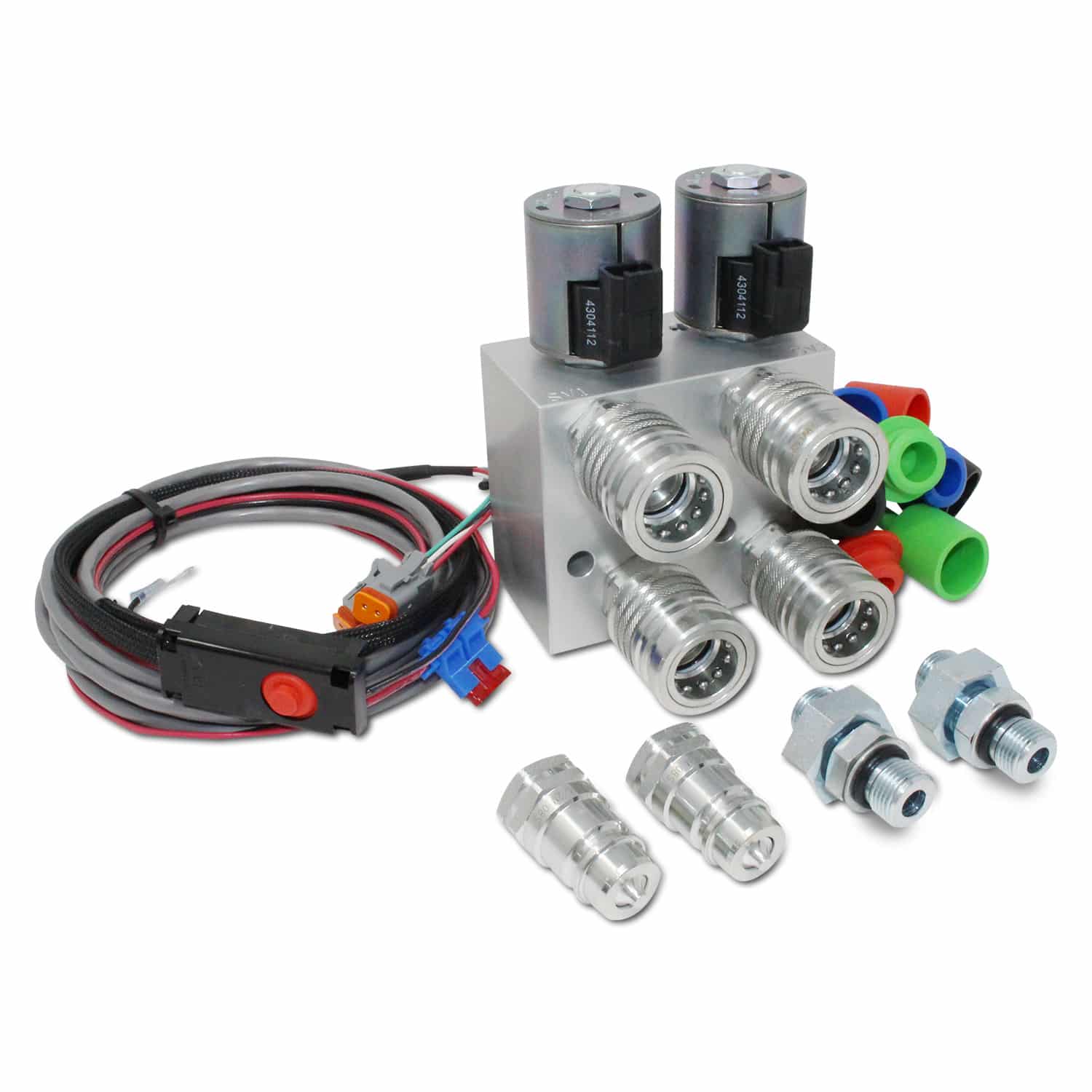

Kit Contains:

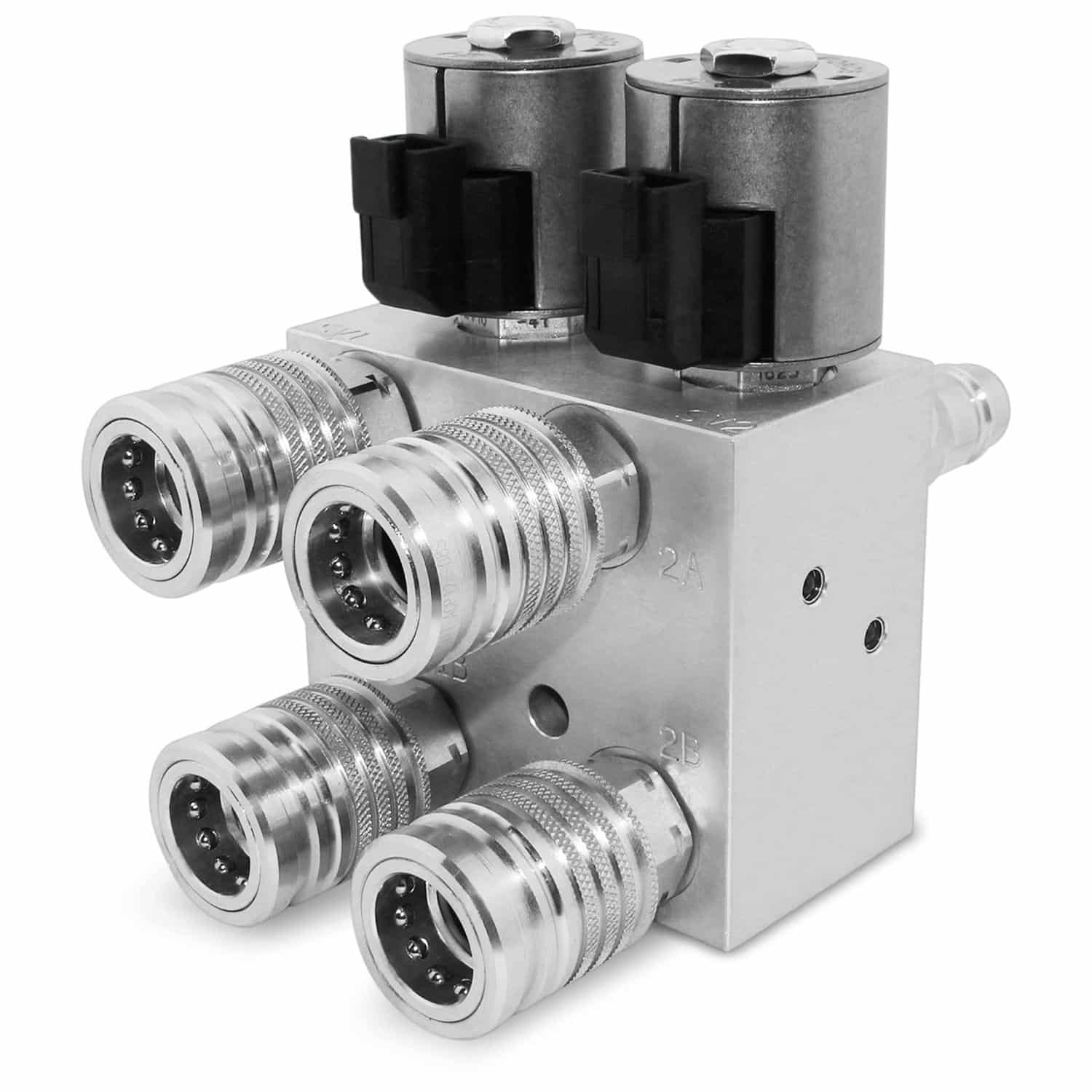

Manifold block with 12V solenoid valves
Weatherproof push button control with harness
4 female quick-connect ISO/Pioneer-style couplers
2 male ISO/Pioneer-style tips
2 custom eccentric fittings

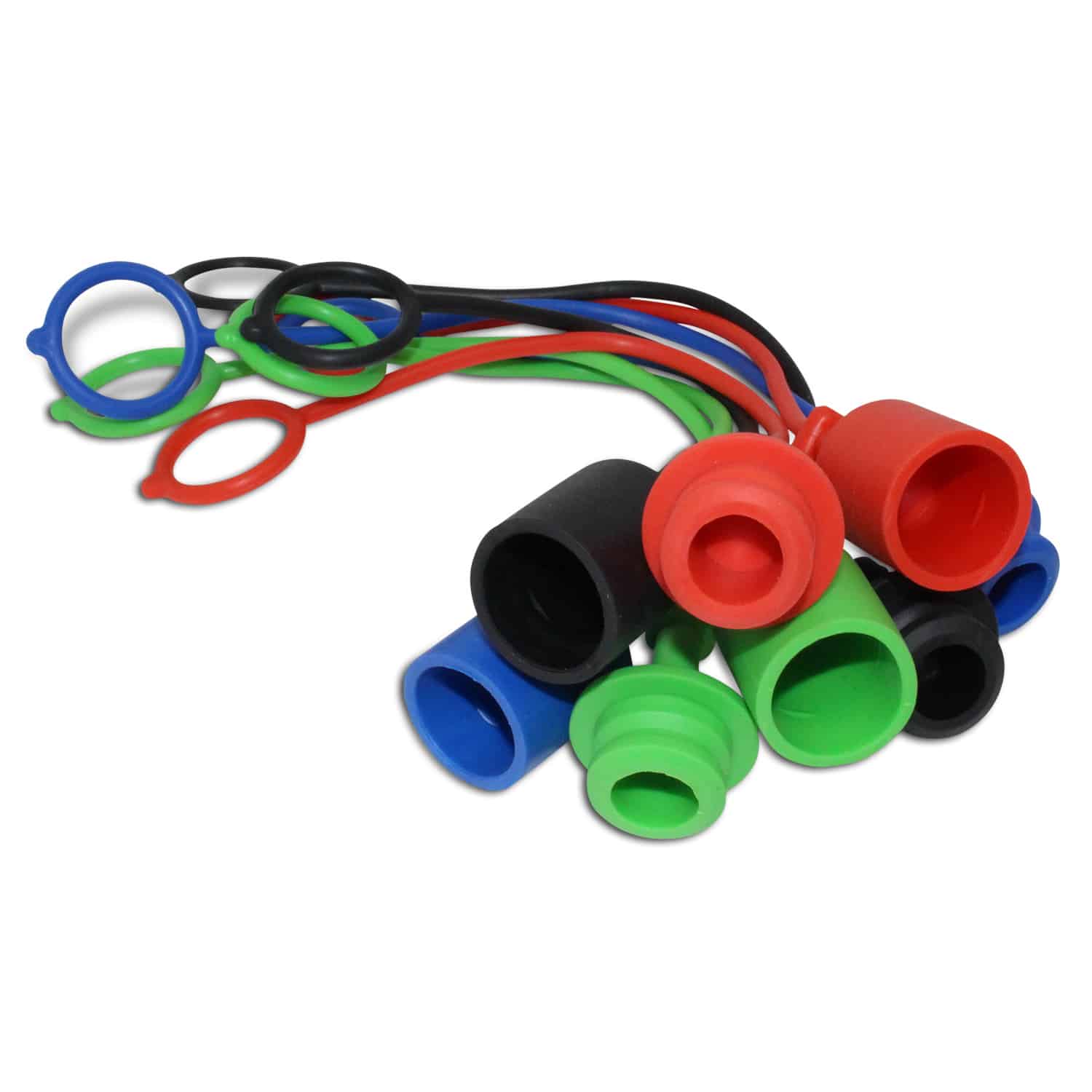

4 dust plugs
2 caps
Zip ties
Installation and operators’ guide
1-year manufacturer warranty
60-day returns policy
Proudly assembled in the USA

For our full selection of hydraulic multiplier valve SCV splitters, click here!

Hydraulic Multiplier Mounting Bracket For HM2

Weight	12 lbs
Dimensions	12 × 14 × 4 in
Actuation	12V DC, Solenoid
Flow Rating	20 GPM
Switch Type	Momentary
Number of Circuits	2
Voltage	12V DC, 24V DC
Quick Couplers	ISO/Pioneer Style Couplers, "Old Style" John Deere Couplers

3 reviews for Hydraulic Multiplier Valve, SCV Splitter / Diverter with Couplers and Push Button Switch

Rated 5 out of 5

Brian – August 19, 2022

A cheaper way to add a set of remotes! The JD dealer was going to charge me over1k to install new remotes and this was easy to install and works great!
Rated 5 out of 5

Xander – August 27, 2022

Works very well. The set up for this is quick and easy and you can remove the multiplier when ever it is not needed.
Rated 5 out of 5

Calvin – September 26, 2022

Works great needed it for my older tractor that had two hydraulic valves and needed 4 for my round bailer .I thought about just uncupling and switching cuplers everytime I need to tie the bale and then two unload it but that was going to be a lot of messing around so got this and it works great just a flip of the switch.
