SKU: RDV90-31-10S

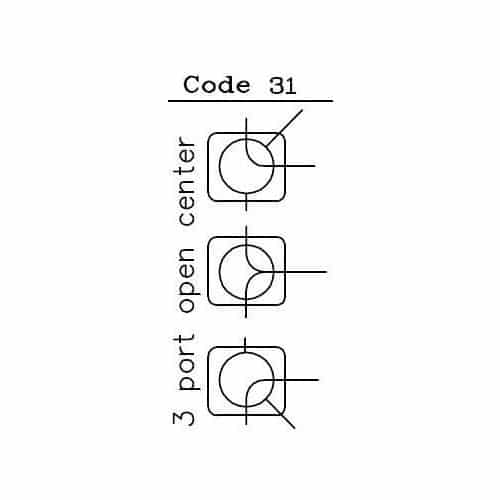

- 3 Way Flow Diverter Valve
- Open Center
- Nominal Flow: 24 GPM
- Cast Iron Construction with hard chrome plated rotor
- Ports: #10 SAE (7/8”-14) Thread
- Max Pressure: 3625 PSI
| Weight | 8 lbs |
|---|---|

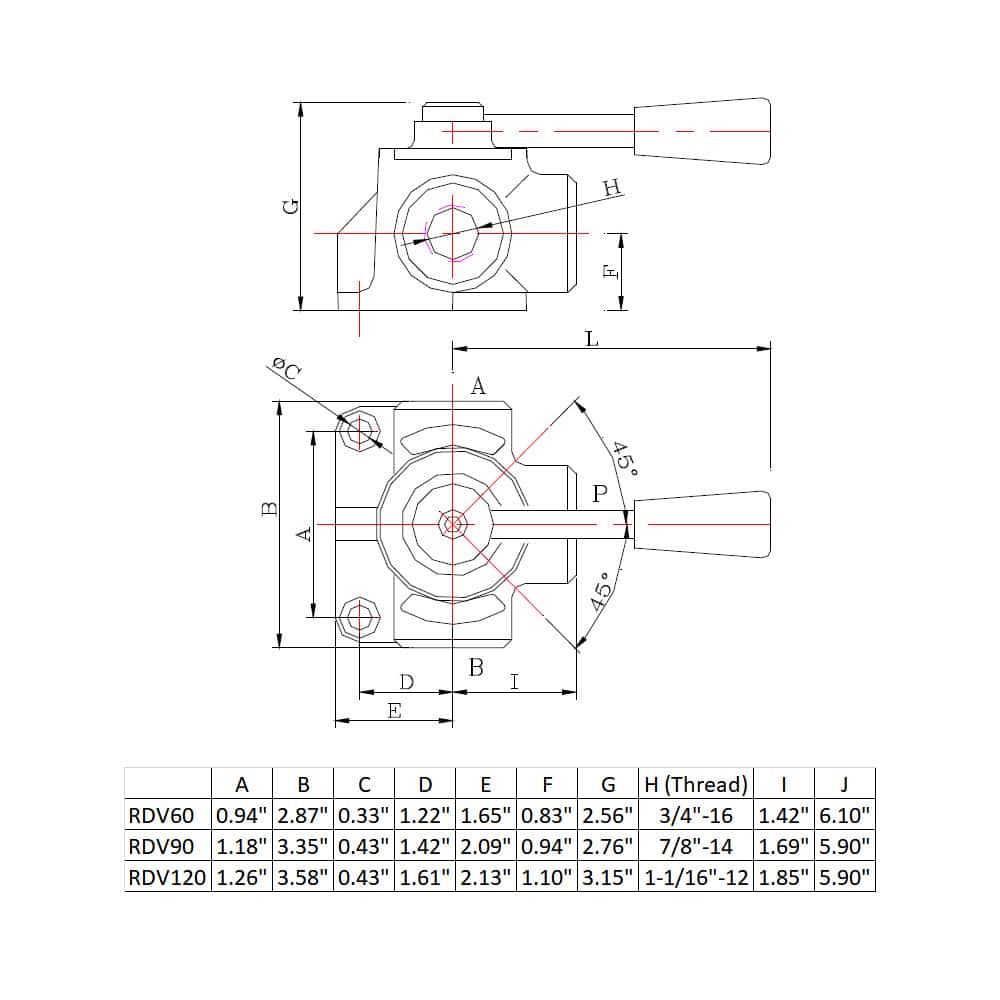

| Dimensions | 9 × 6 × 5 in |
| Flow Rating | 24 GPM |
Be the first to review “Hydraulic Rotary Diverter Valve, 3 Way, Open Center, 24 GPM, #10 SAE Ports”
