SKU: RDV90-40-10S

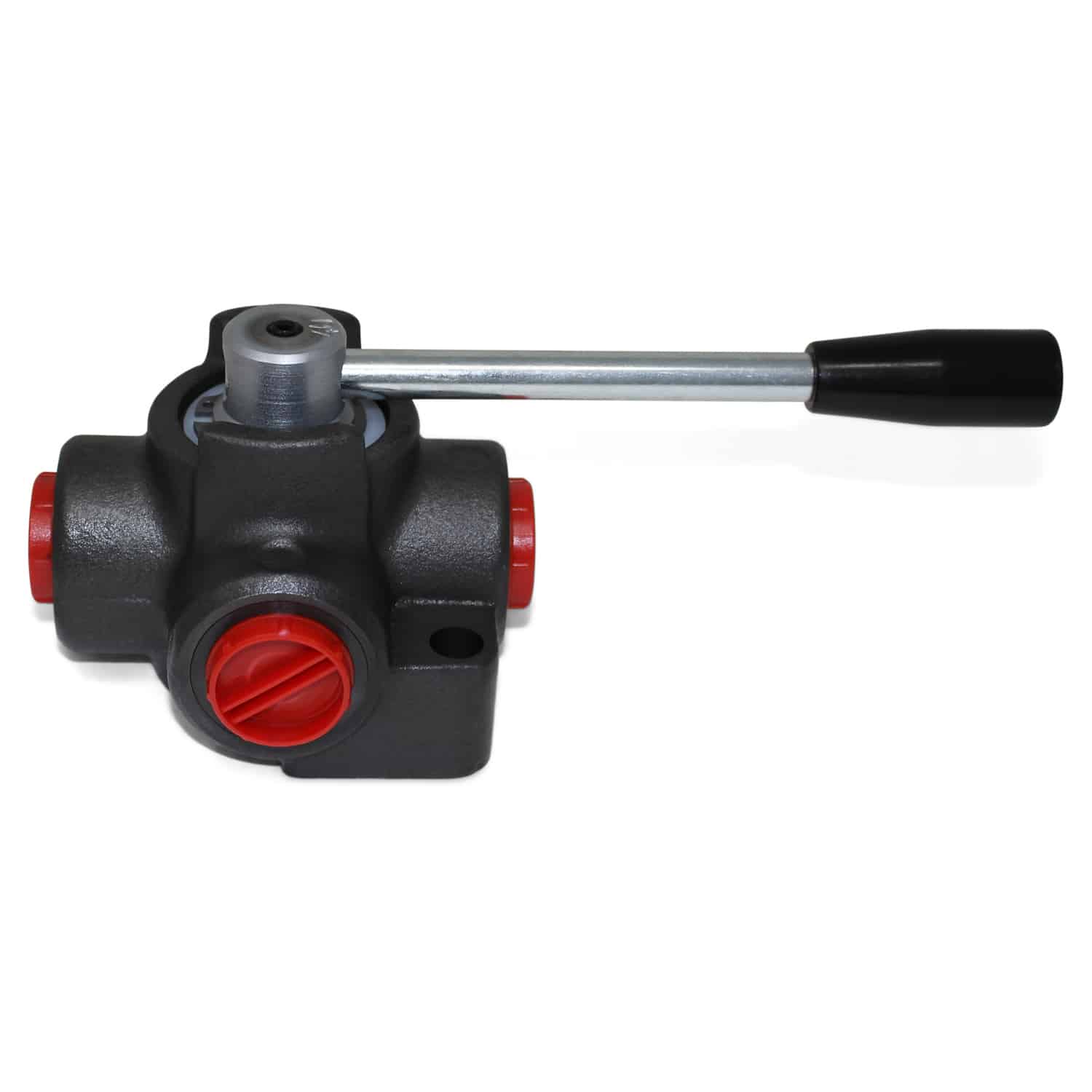

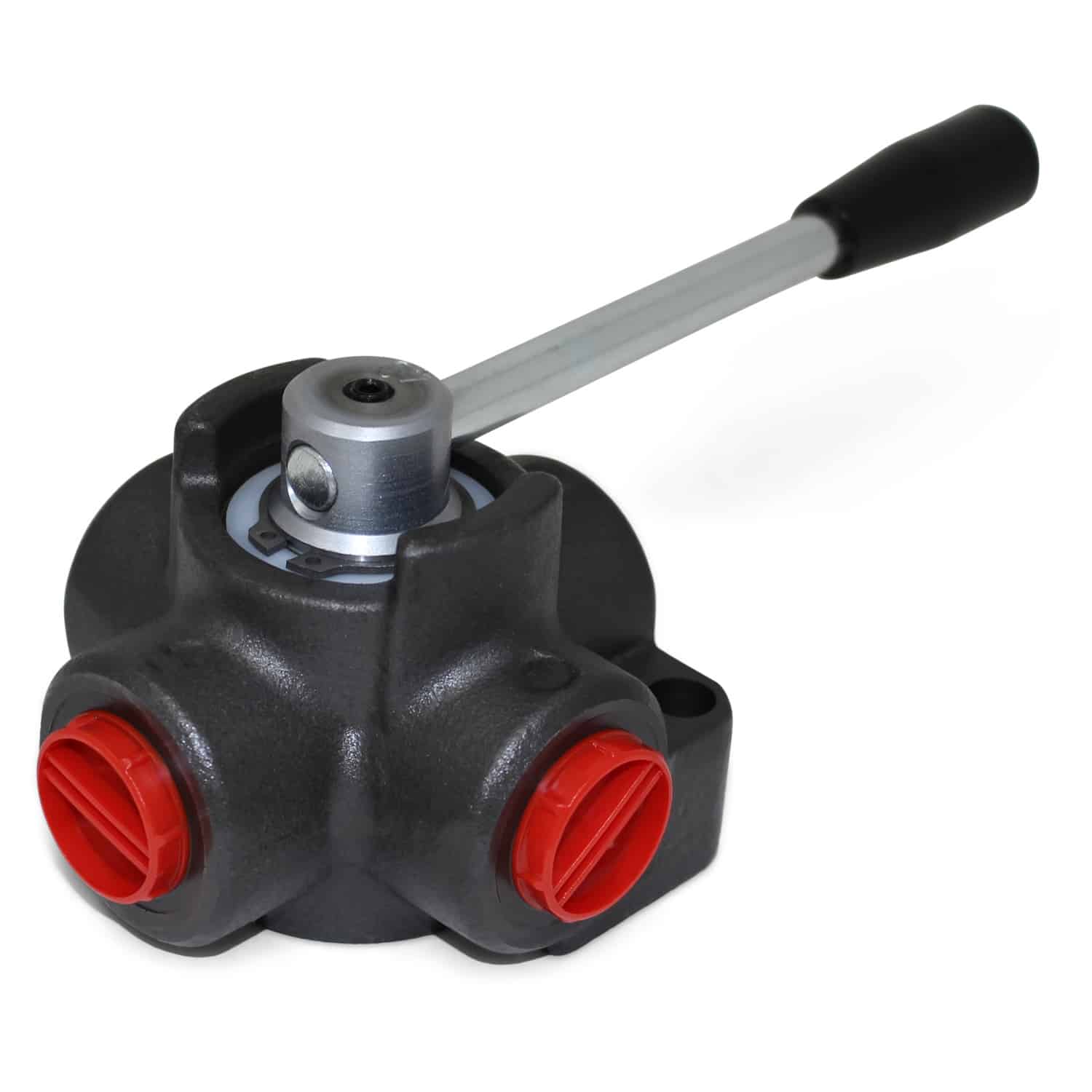

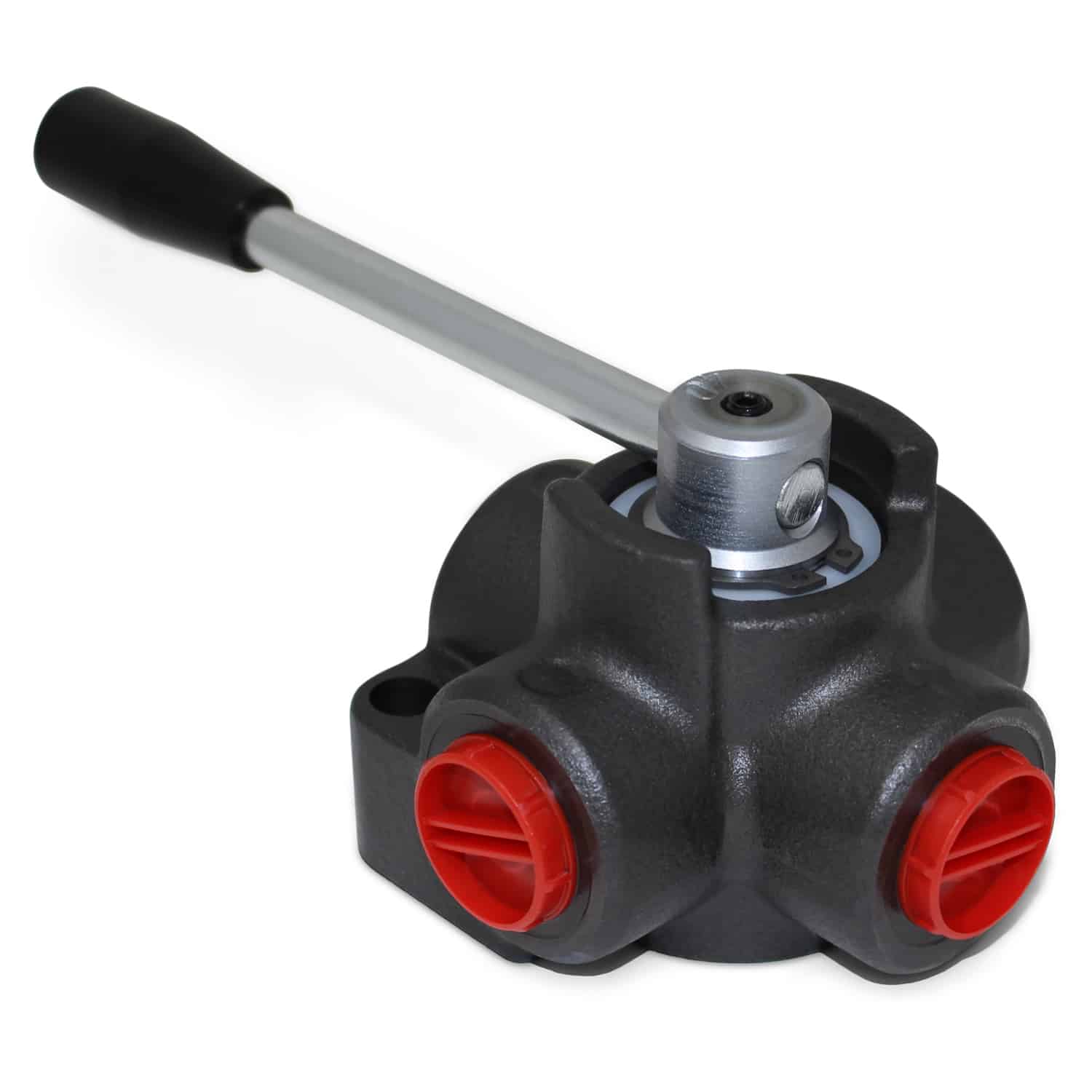

- 4 Way Flow Diverter Valve

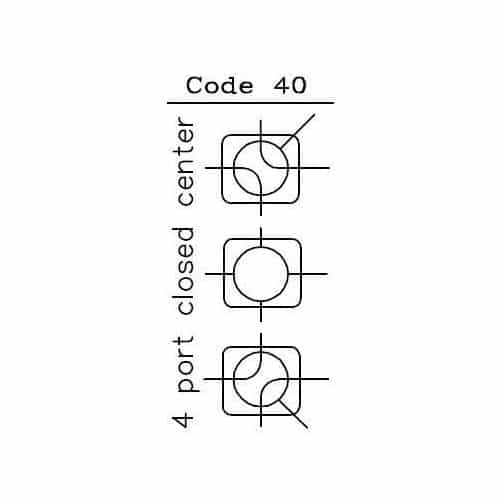

- Closed Center
- Nominal Flow: 24 GPM
- Cast Iron Construction with hard chrome plated rotor
- Ports: #10 SAE (7/8”-14) Thread
- Max Pressure: 4640 PSI
| Weight | 8 lbs |
|---|---|

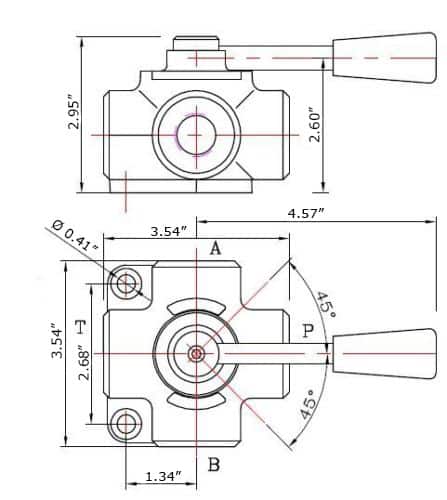

| Dimensions | 9 × 6 × 5 in |
| Flow Rating | 24 GPM |
