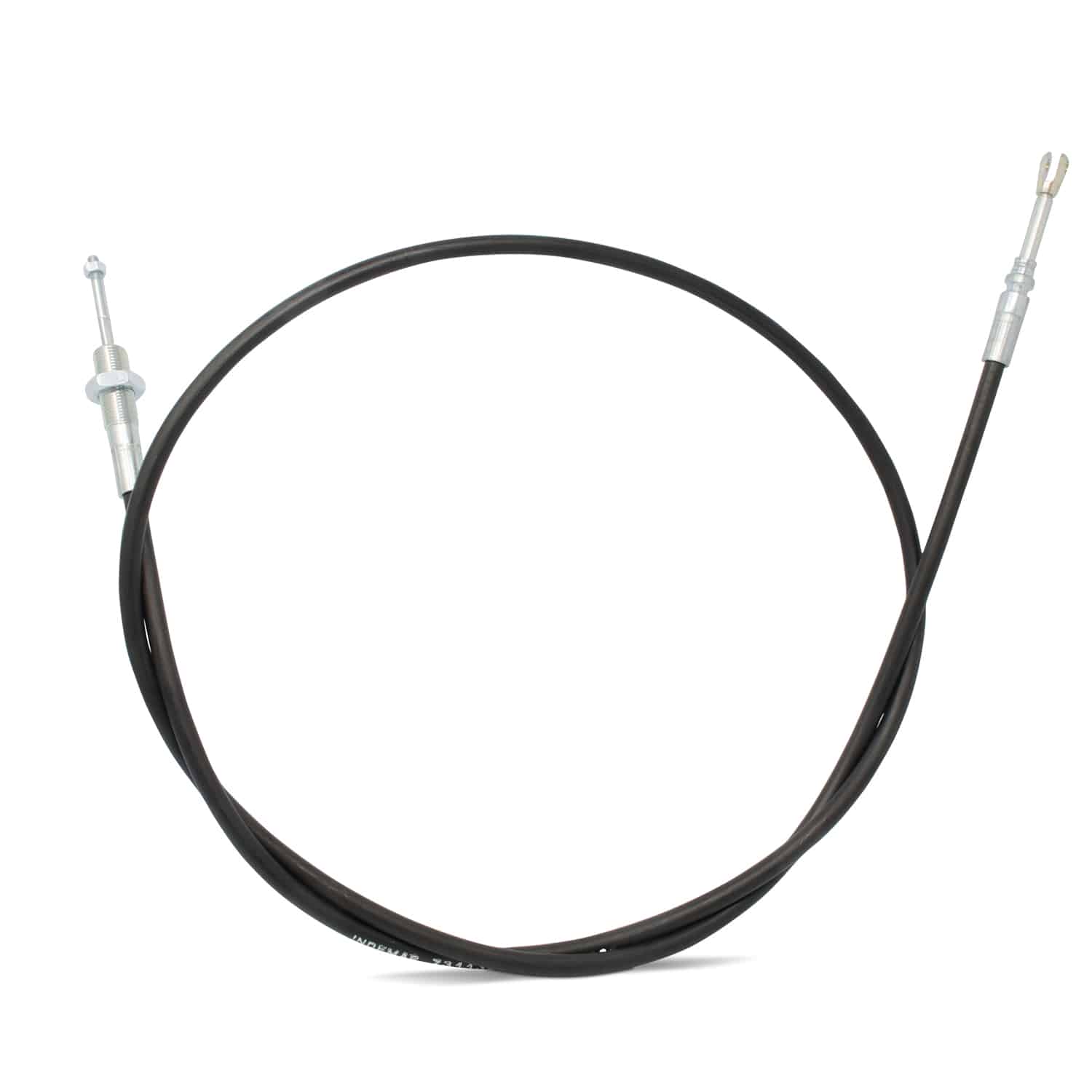

Joystick Cable for Hydraulic Valves Remote Push Pull Control

These push pull cables will allow you operate hydraulic valves from a remote location.

These high strength cables can be purchased in the following lengths:

• 39″ (1 Meter)
• 59″ (1.5 Meters)
• 79″ (2 Meters)
• 98″ (2.5 Meters)

With the adapter kit (SP-212116), These will attach directly to all Summit P40 & P80 Manual Monoblock Valves.

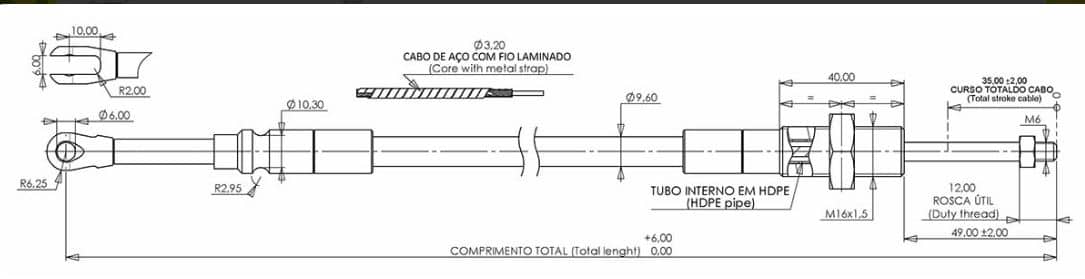

Specifications:

• Min. disconnection load of rope terminals: 3000 N (674 LBS)
• Min. disconnection load of conduit terminals: 3000 N (674 LBS)
• Min. bending radius: 200 mm (7.87 Inches)
• Operating temperature: -30° ÷ +80° C (-22 F ÷ +176 F)
• Max. total stroke: 35±2 mm (1.37″ ± .079″)

Compatible with Summit Joystick JHD1 and other aftermarket joysticks
