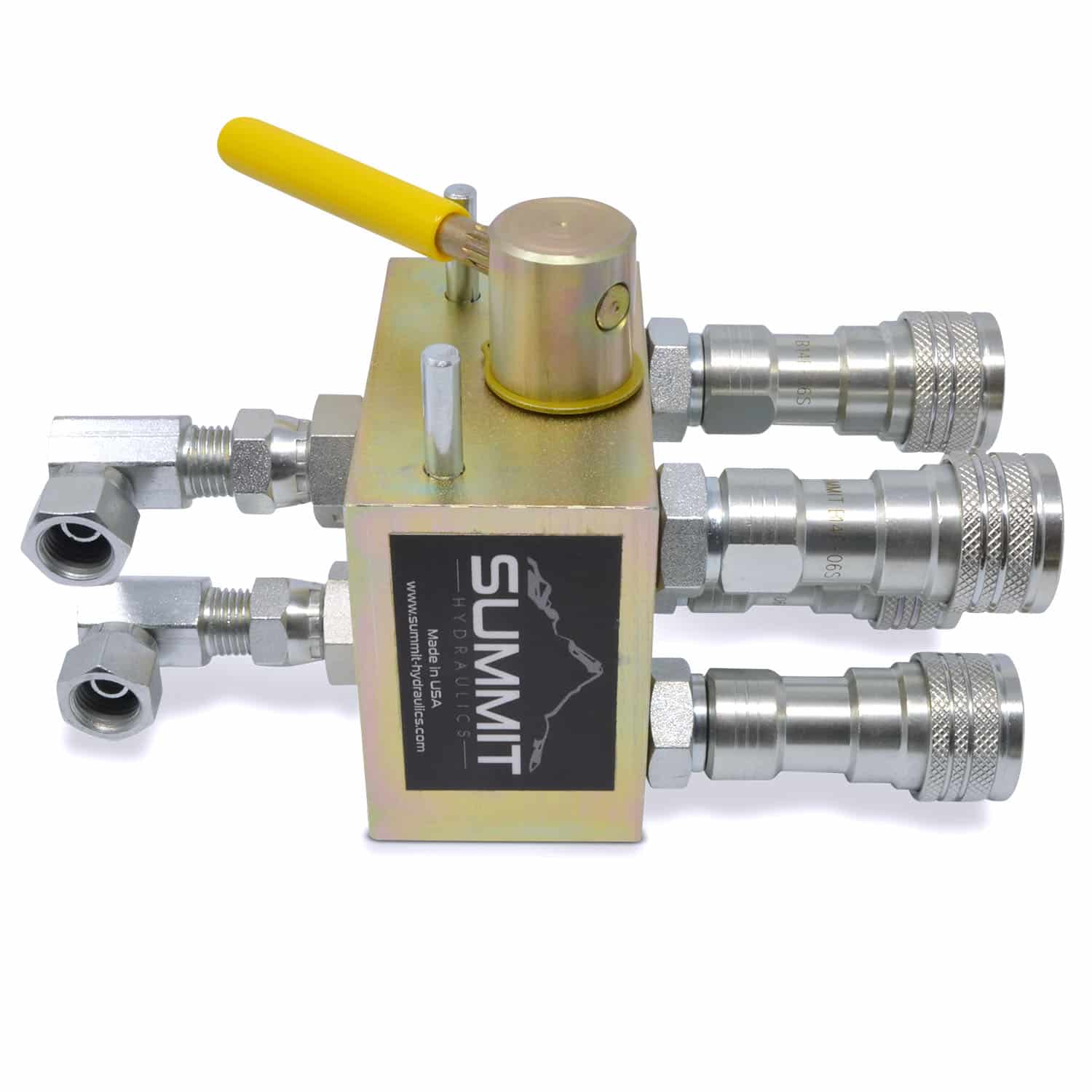

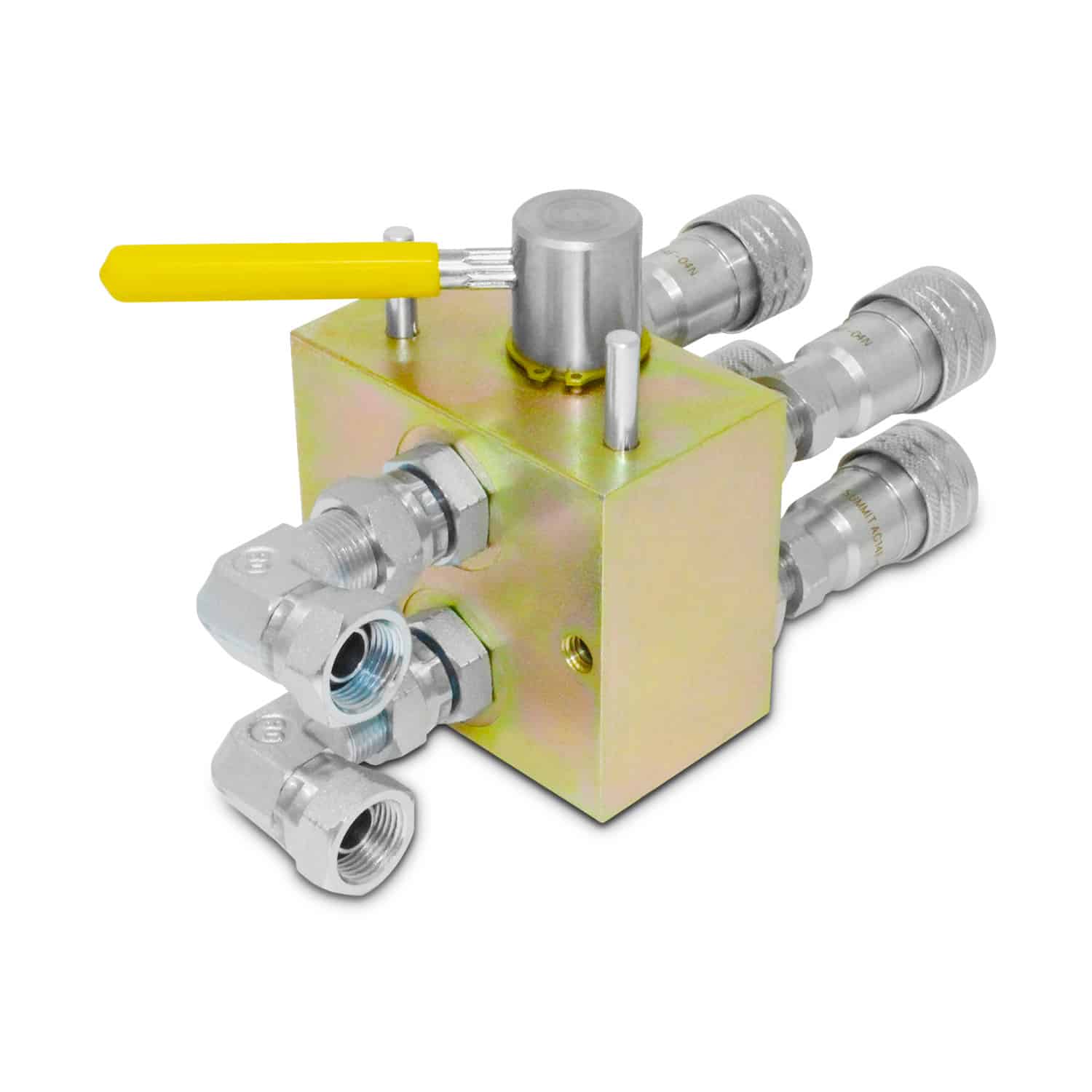

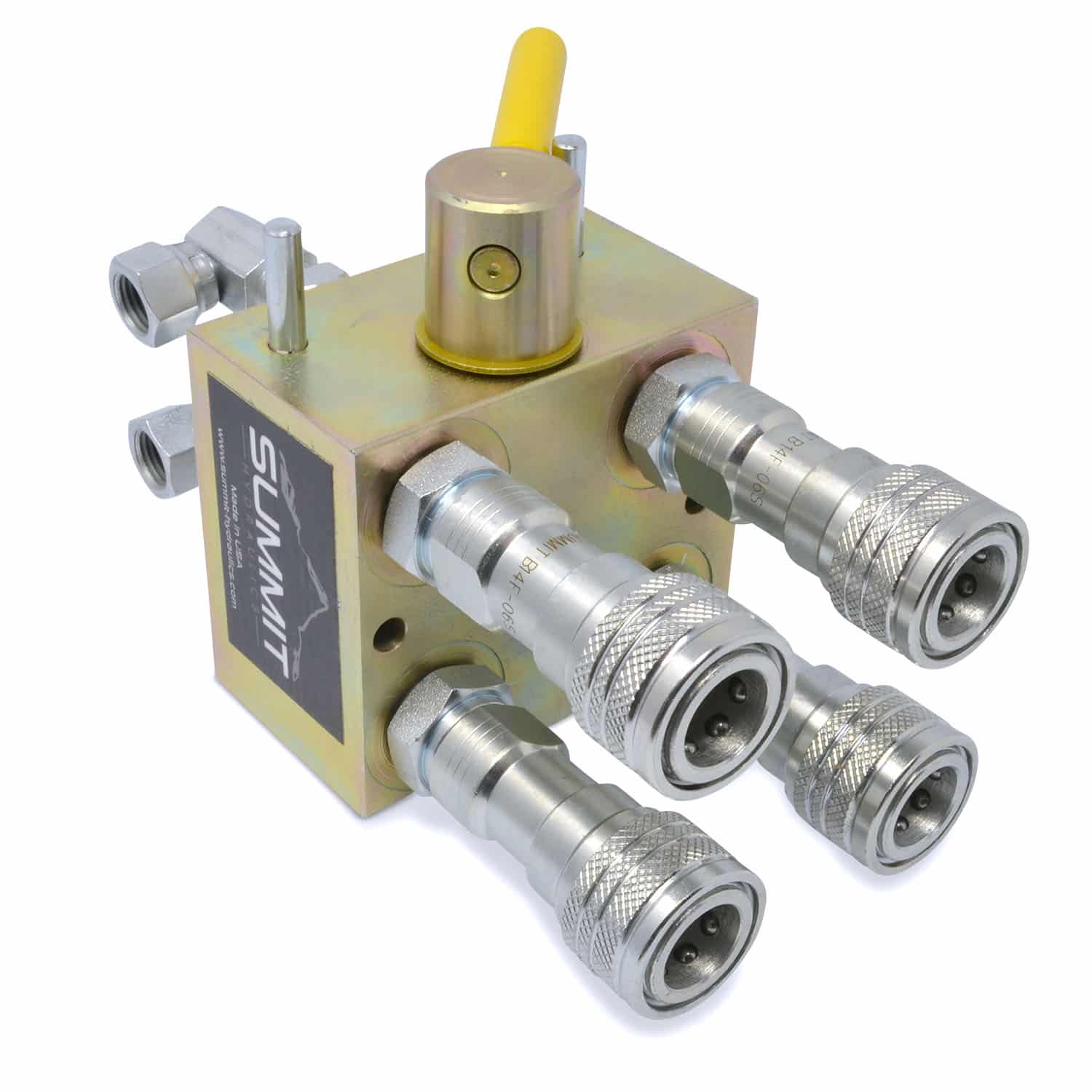

Manual Hydraulic Multiplier Diverter Valve Kit for Kubota Compact Tractors

SKU: HM1-08-B4N

Manual Hydraulic Diverter Valve Kit for Kubota Sub Compact Tractors

This kit allows you to easily add another hydraulic circuit/function to your Kubota compact tractor without the cost of expensive factory add-ons.

Features:

• Handle rotates 45 deg to switch between Circuit 1 and Circuit 2
• Works with Double or Single Acting Cylinders
• Can be used on Open, Closed or FPC hydraulic systems
• Capacity for up to 20 GPM Hydraulic Flow & 3000 PSI
• 1/2″ Ports with #8 SAE (3/4″-16 O-Ring Boss) Threads

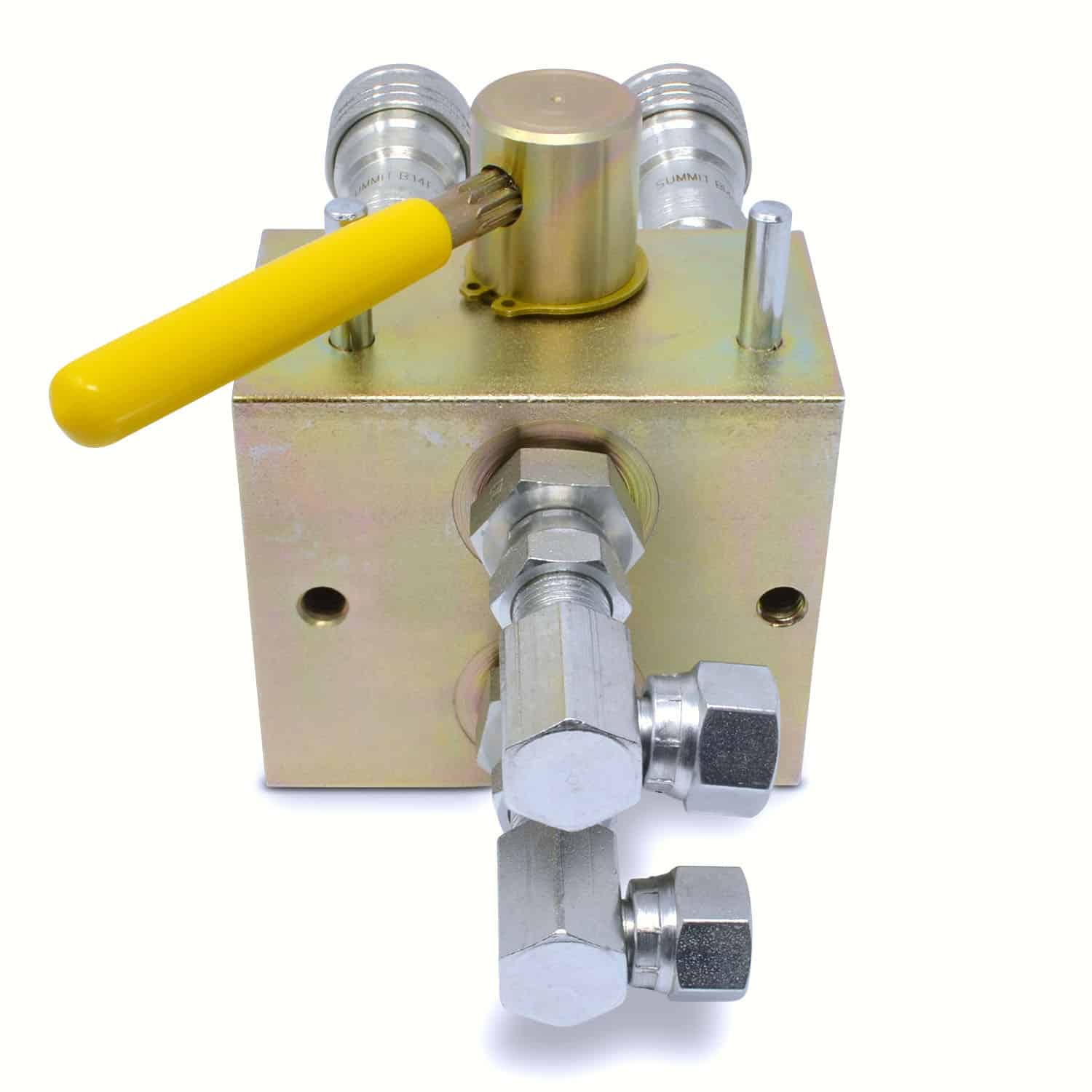

• Rear ports are 1-1/2″ on center
• 2 Mounting Holes are 1/4″ and are 2-3/4″ on center
• Block Dimensions: 3-1/2″ L x 3″ H x 2″ W
• MADE IN USA

Couplers included with this kit are compatible with the following Kubota model tractors:

• B2301
• B2320
• B2601
• B2650
• B2650
• B3030
• B3350
• B3350
• BX1500
• BX1830
• BX1850
• BX1870
• BX2230
• BX23
• BX2350
• BX2370
• BX24
• BX25D
• BX2670

Female couplers are compatible to Snap-Tite 72N4-4F & 72C4-4F and all other 1/4″ ISO 7241-B Couplers

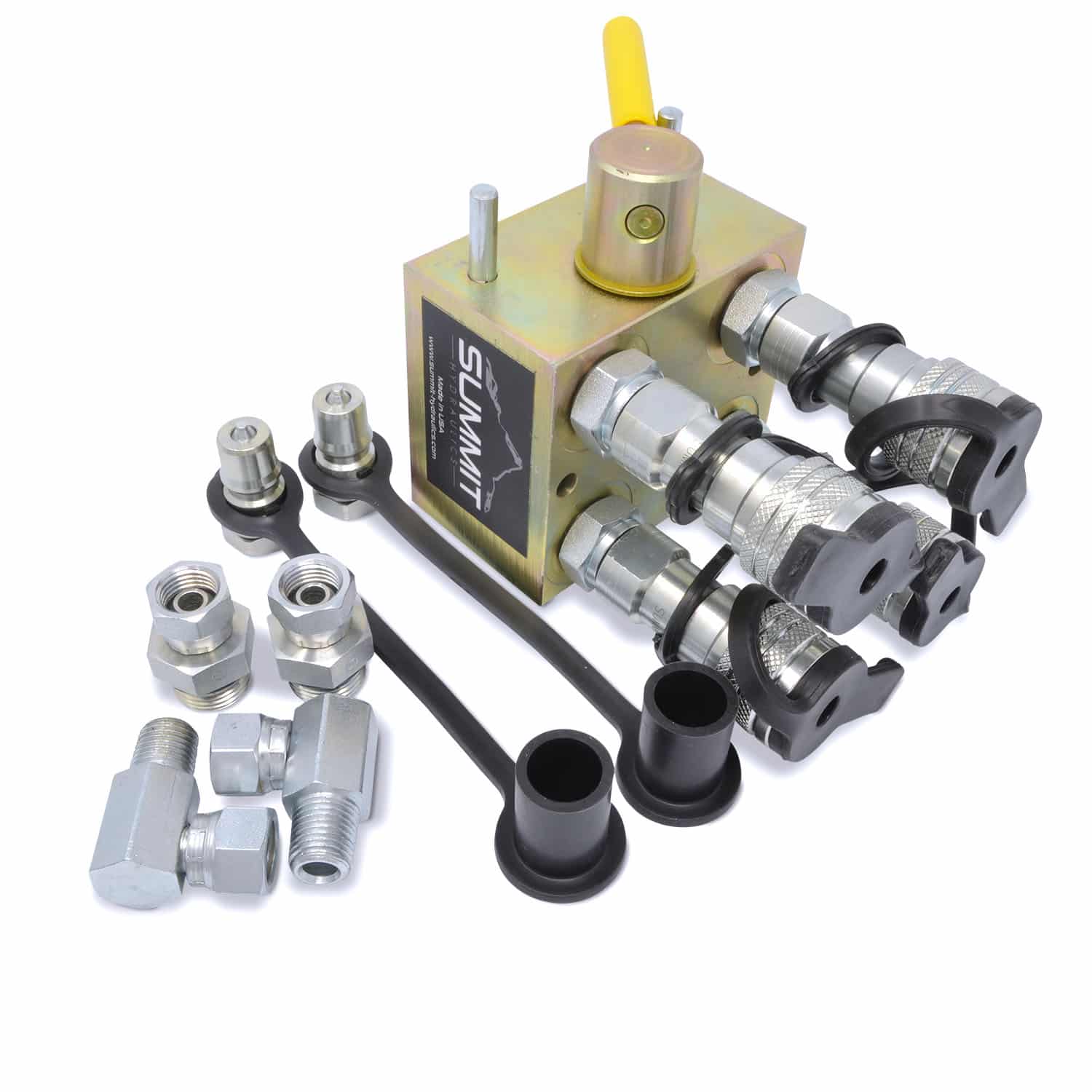

What’s Included:

• Manual Hydraulic Multiplier Valve
• 4 – 1/4″ Body Female ISO 7241-B Quick Connect Couplers with adapters
• 2 – 90 Deg 3/8″ NPT Female Elbows
• 2 – 3/8″ NPT Female Swivel Adapter Fittings
• 60 Day Returns
• 1 Year Guarantee
