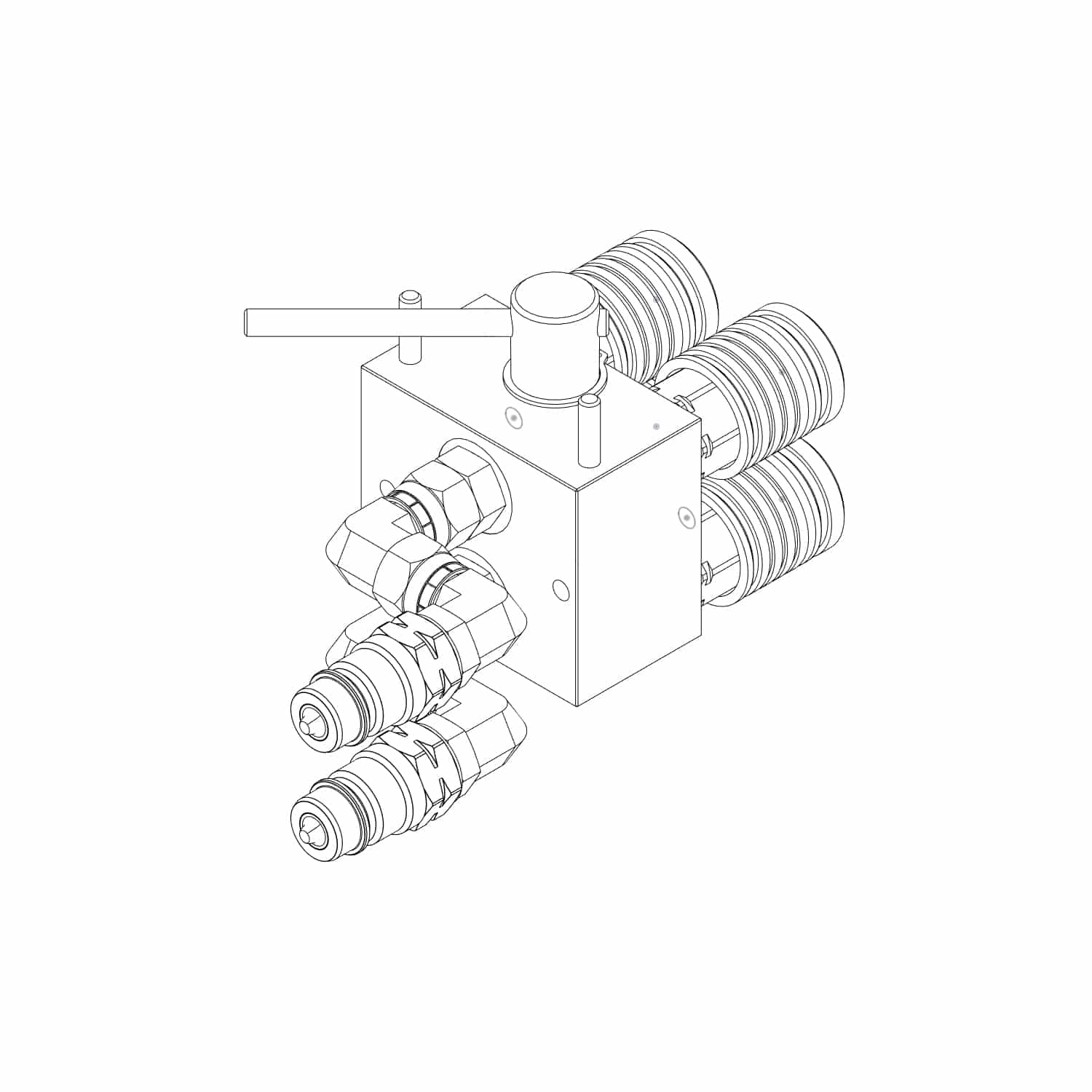

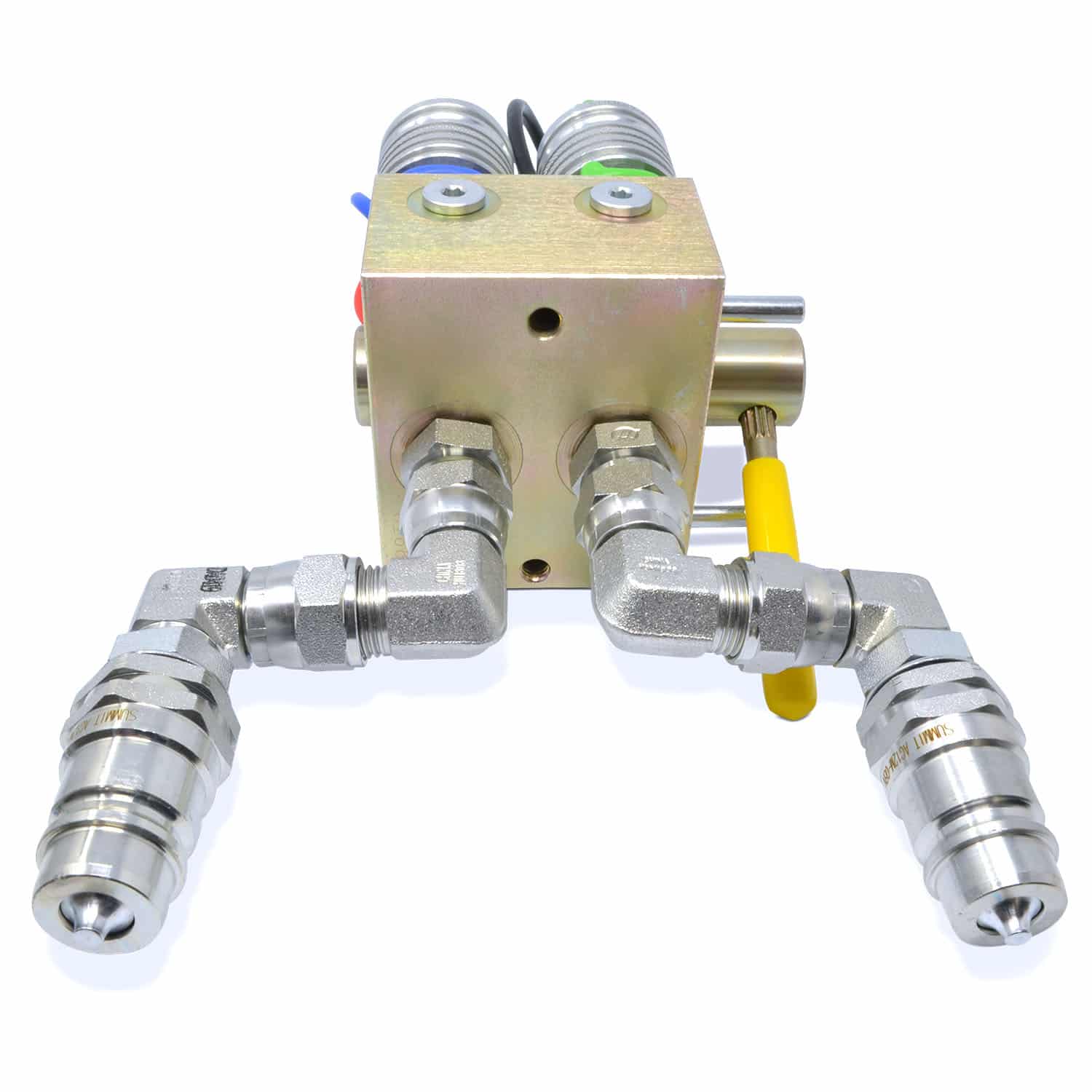

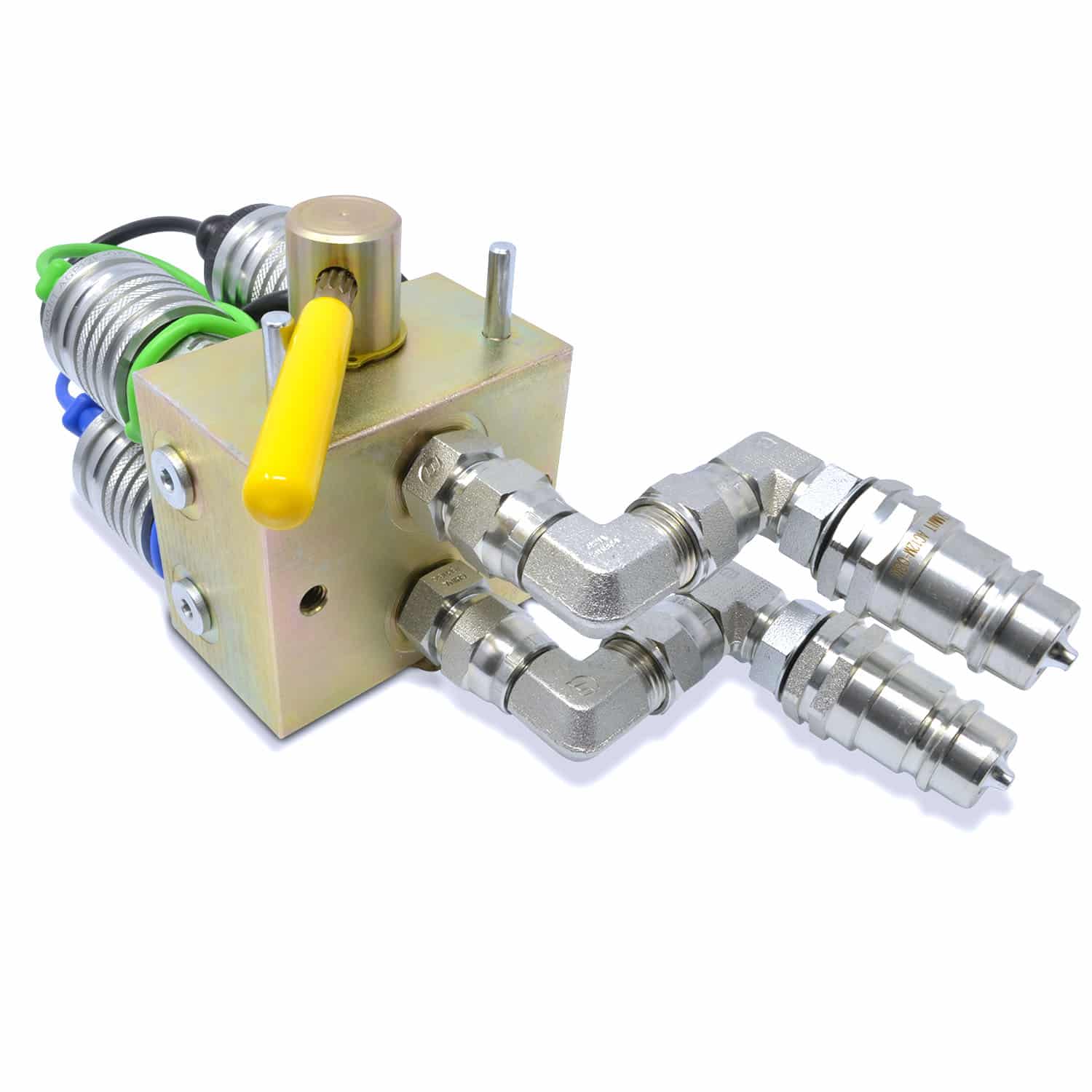

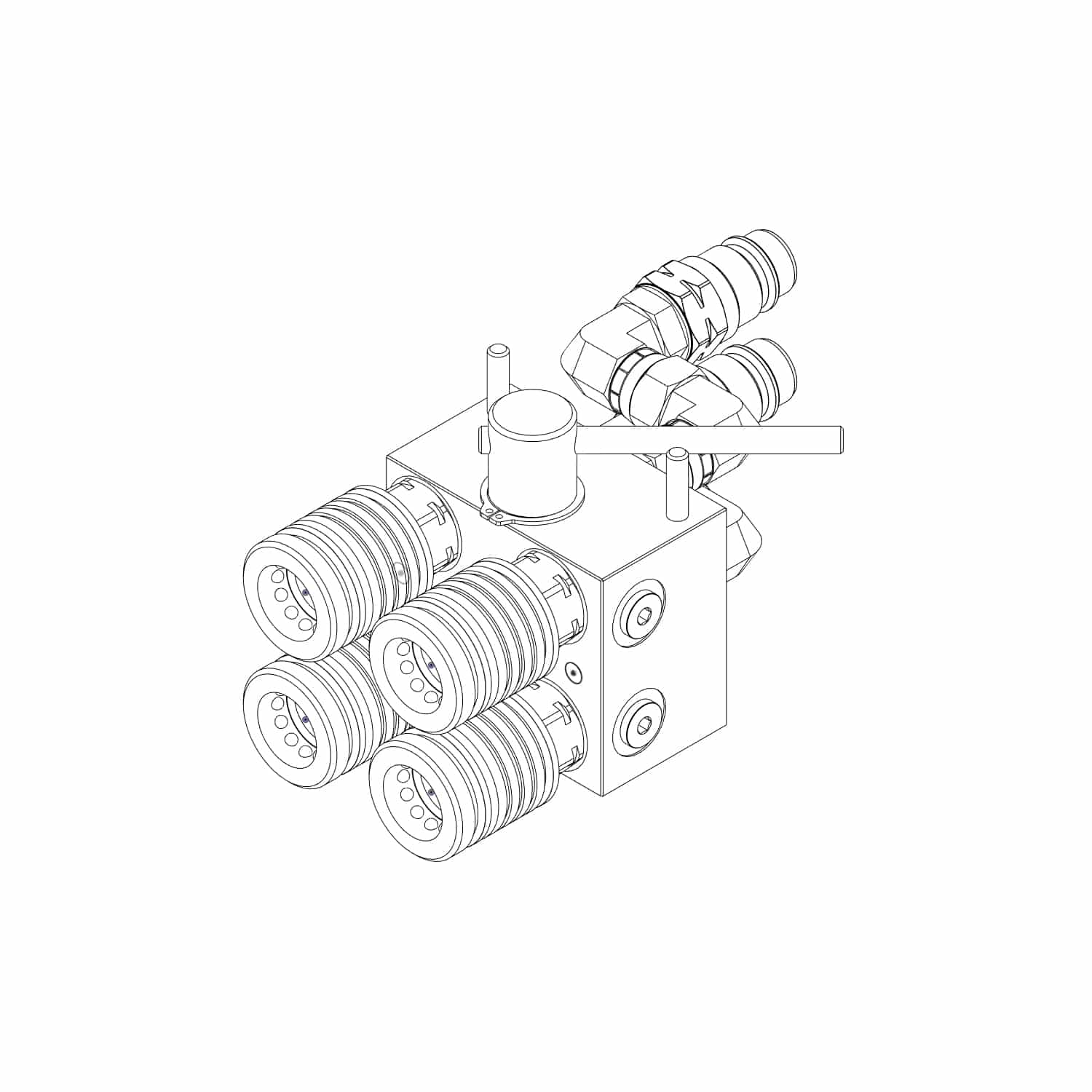

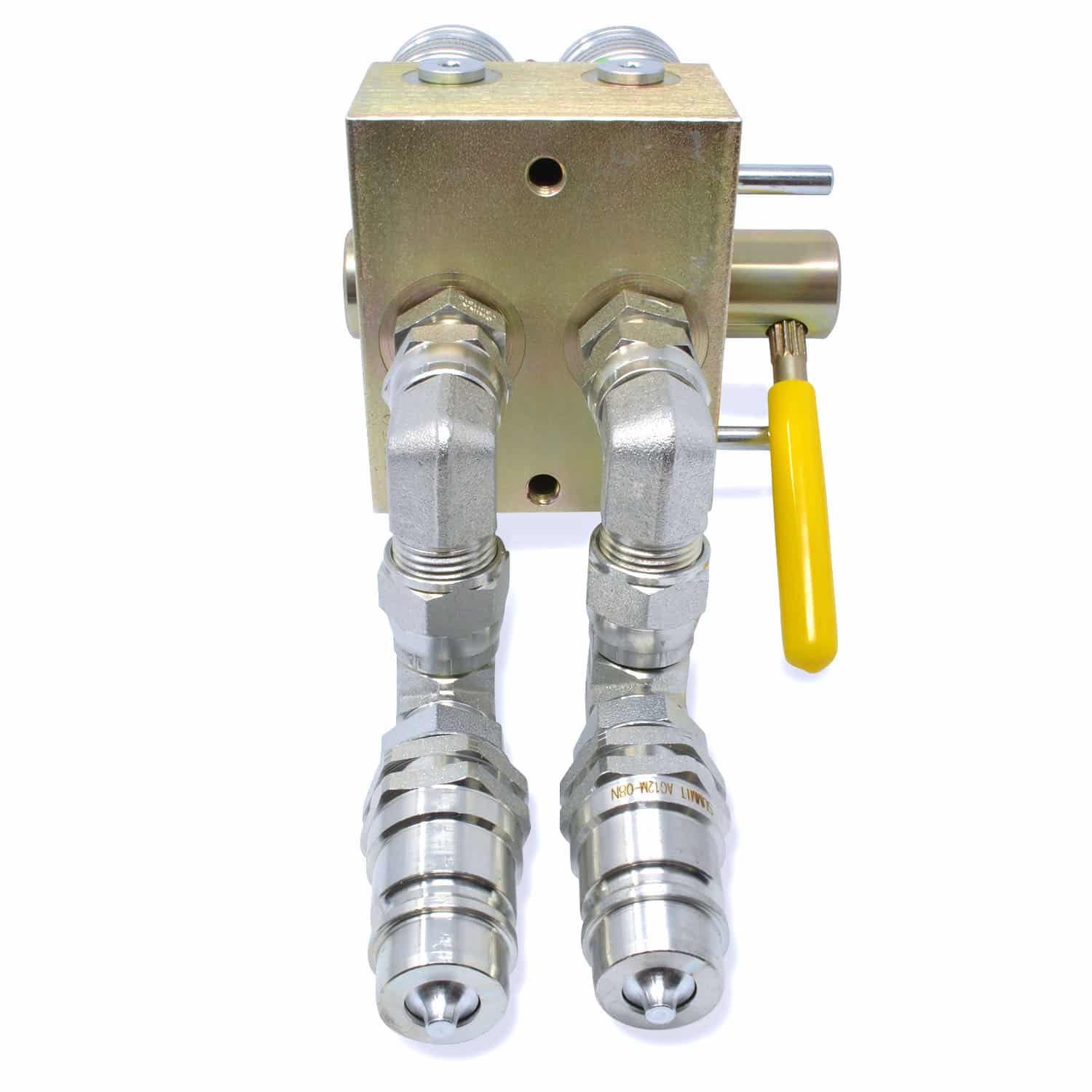

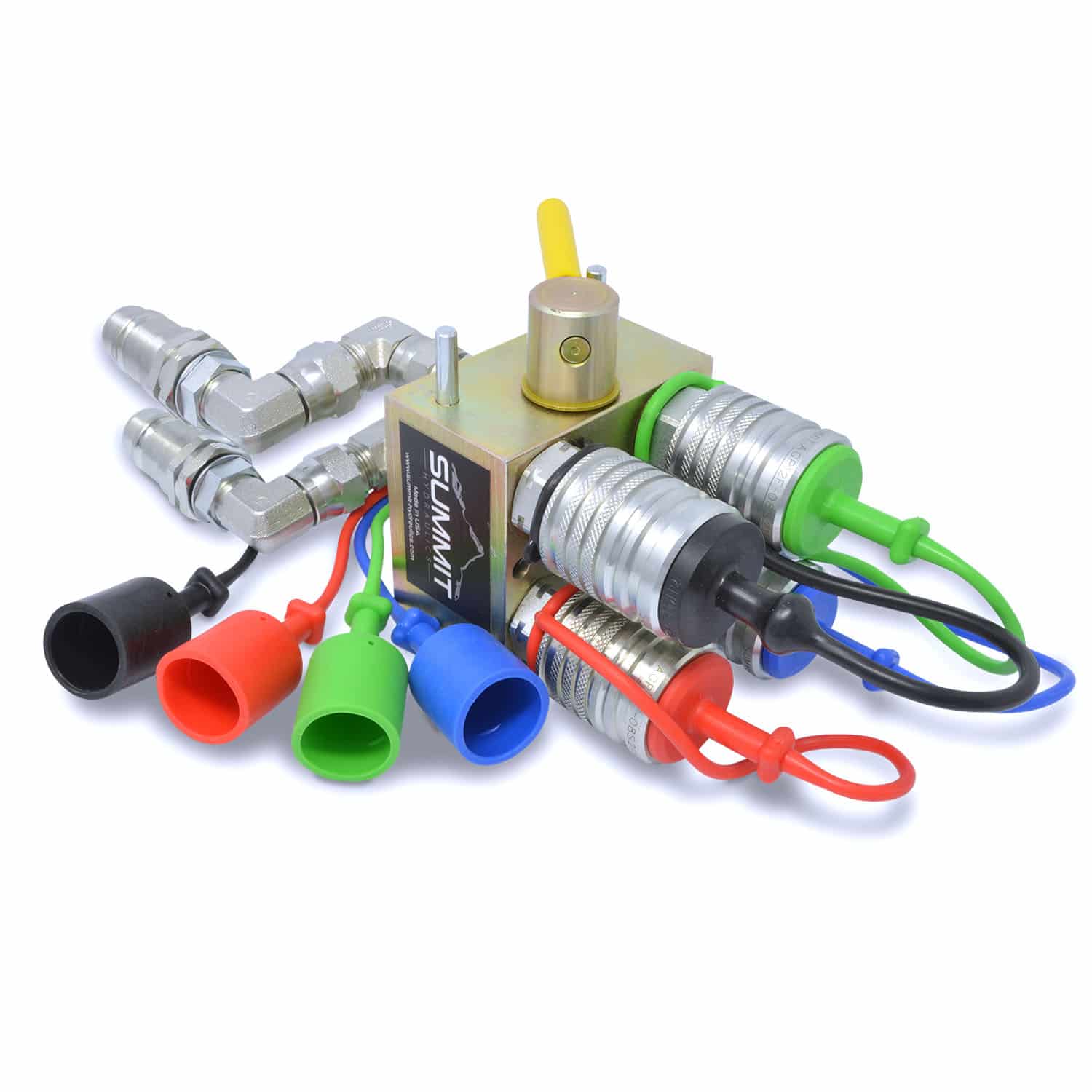

Manual Hydraulic Multiplier Manual Hydraulic Multiplier with couplers and pioneer style male fittings. Adapter fittings adjust to allow you to plug directly into your tractor’s SCV port.
SKU: HM1-08-CF2
Features:
- Handle rotates 45 deg to switch between Circuit 1 and Circuit 2
- Works with Double or Single Acting Cylinders
- Can be used on Open, Closed or FPC hydraulic systems
- Capacity for up to 20 GPM Hydraulic Flow & 3000 PSI
- Ports are 3/4-16 ORB (-08) Thread

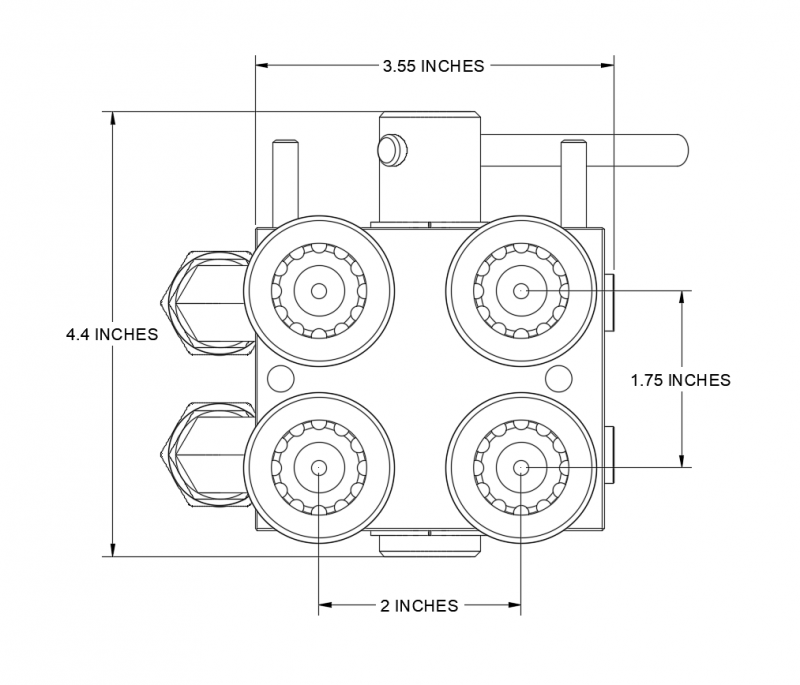

- Rear ports are 1-1/2″ on center
- 2 Mounting Holes are 1/4″ and are 2-3/4″ on center
- Block Dimensions: 3-1/2″ L x 3″ H x 2″ W
What’s Included:
- Manual Hydraulic Multiplier Valve

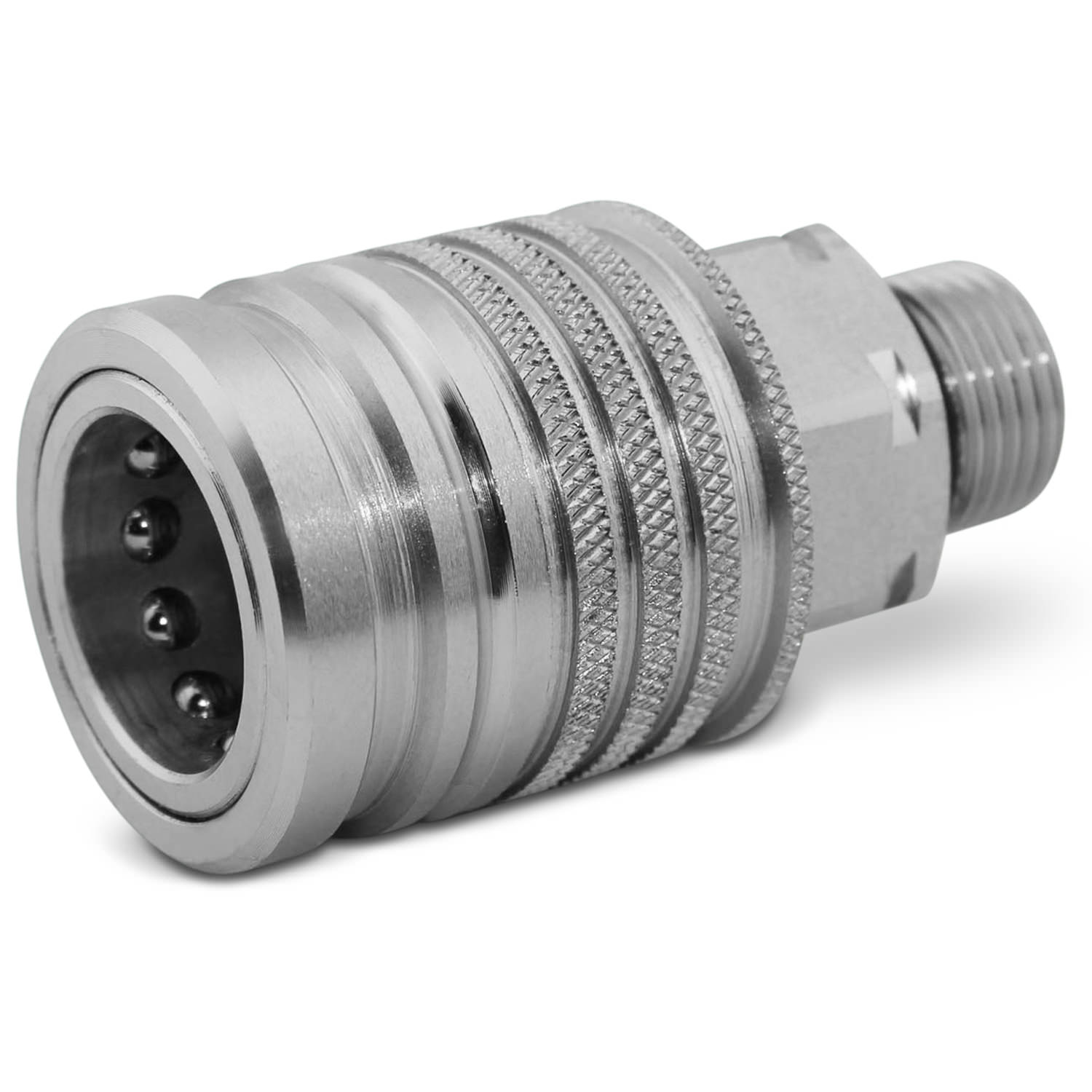

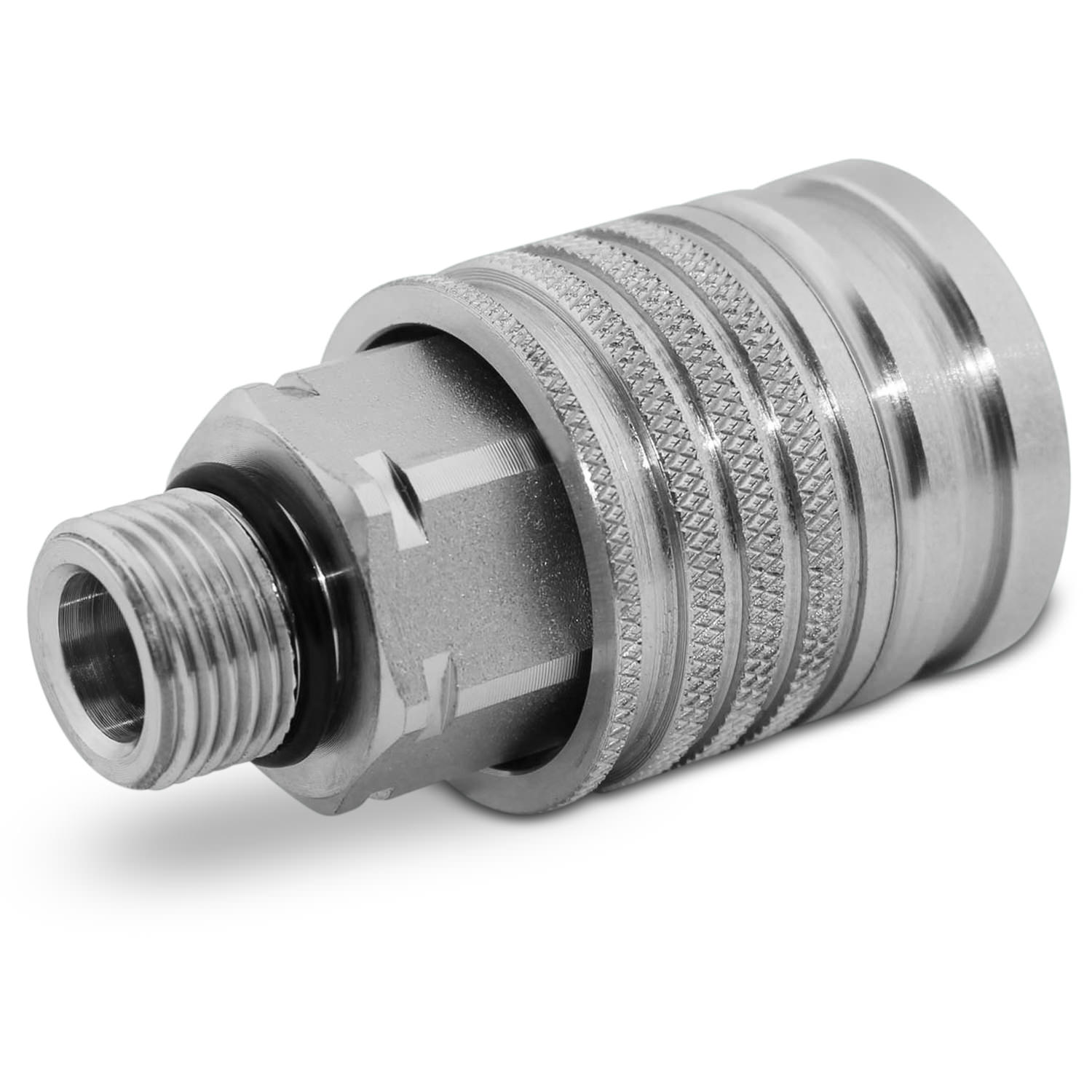

- 4 – ISO Female Quick Connect ISO/Pioneer Style Couplers
- 2 – ISO / Pioneer Style Male Tips with Dust Caps
- Adjustable Adapter Fittings
- 60 Day Returns
- 1 Year Guarantee
MADE IN USA
| Weight | 10 lbs |
|---|---|
| Dimensions | 6 × 6 × 4 in |
| Actuation | Lever |
| Flow Rating | 20 GPM |
| Number of Circuits | 2 |
3 reviews for Manual Hydraulic Multiplier, SCV Splitter / Diverter Valve Kit with Couplers
Add a review
Related products
Hydraulic Multipliers
Hydraulic Multiplier Kit, 4 Circuit Selector Valve Including Couplers and Switch Box Control
Hydraulic Multipliers
Hydraulic Multiplier, SCV Splitter / Diverter Valve with Command Control Switch
Hydraulic Multipliers
Hydraulic Multiplier Kit, 6 Circuit Selector Valve and Switch Box Control
Hydraulic Multipliers
12 ft Extension Cable for Summit HM3 Hydraulic Multiplier Valves
Hydraulic Multipliers
Hydraulic Multiplier Mounting Bracket For HM3, HM4, HM5 and HM6
Hydraulic Multipliers
Hydraulic Multiplier Kit, 3 Circuit Selector Valve and Switch Box Control
Hydraulic Multipliers
Manual Hydraulic Multiplier Diverter Valve Kit w/ 3/8″ ISO B Couplers & Fittings
Hydraulic Multipliers
Hydraulic Multipliers
Universal Hydraulic Multiplier Adapter Kit 1 1/4″ To 8″ for Summit HM1 HM2 Hydraulic Multiplier
Hydraulic Multipliers
Hydraulic Multipliers
Agricultural ISO 5675 Quick Couplers
1/2″ Hydraulic Quick Connect Coupler for Hydraulic Multipliers
Hydraulic Multipliers
Hydraulic Multipliers
Manual Hydraulic Multiplier, SCV Splitter / Diverter Valve Kit with Couplers, NPT
Hydraulic Multipliers
Hydraulic Multipliers
Hydraulic Multiplier Valve, SCV Splitter / Diverter with Couplers and Push Button Switch
Hydraulic Multipliers
Hydraulic Multiplier Kit, 6 Circuit Selector Valve Including Couplers and Switch Box Control
Hydraulic Multipliers
Robert –
I purchased a flail mower for my 55 horse new Holland I did not have enough remotes to operate the mower as it took 4 I ordered this block from Summit the shipping was god speed. It was incredible how fast they got it to me and it did work perfect very high-quality piece of equipment highly recommend customer service was very helpful in answering my questions
Jameson –
Purchased 2017 installed on jd2032r with rear outlet to work with top link tip and loader grapple. Have switched under load very stiff and with motor off easy. Has not leaked or let top link drift. Do not like couplers supplied very difficult to use, switched out. I would buy again.
Robbie –
Works well, holds line pressure when switched to the alternate service.
