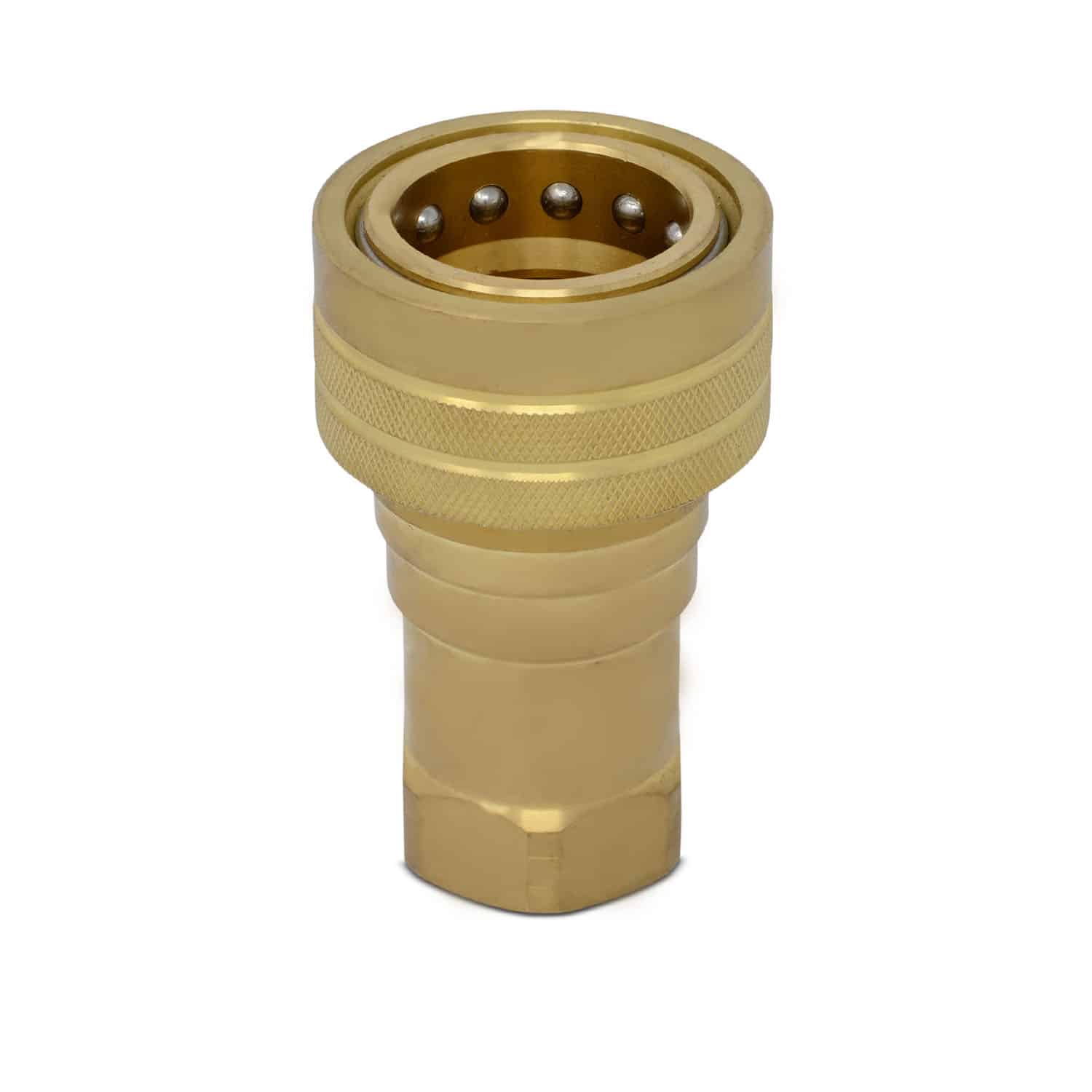

1″ NPT ISO 7241-B Brass Quick Disconnect Hydraulic Female Coupler

SKU: BB1F-16N

The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.

Body Size: 1″ Body

Thread Size: 1″ NPT Thread, Poppet Valve

Benefits:

• Body Material: Brass material for corrosion resistance
• Spring Material: 304 Stainless Steel
• Locking Ball Material: 316 Stainless Steel
• Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Seal Type: Viton FKM
• Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Interchangeable with all ISO 7241 B series couplings
• Temperature Range: -15°F to +400°F

Features:

• 2000 PSI Rating
• Nominal Flow Rate: 50 GPM
• Max Flow Rate: 68.68 GPM
• Female Face Diameter 2.52” (64mm)
• Female Length: 4.11” (104.4mm)
• Hex: 1.60” (40.6mm)

Interchangeable with:

Kit Includes:

• 1 Female Coupler
