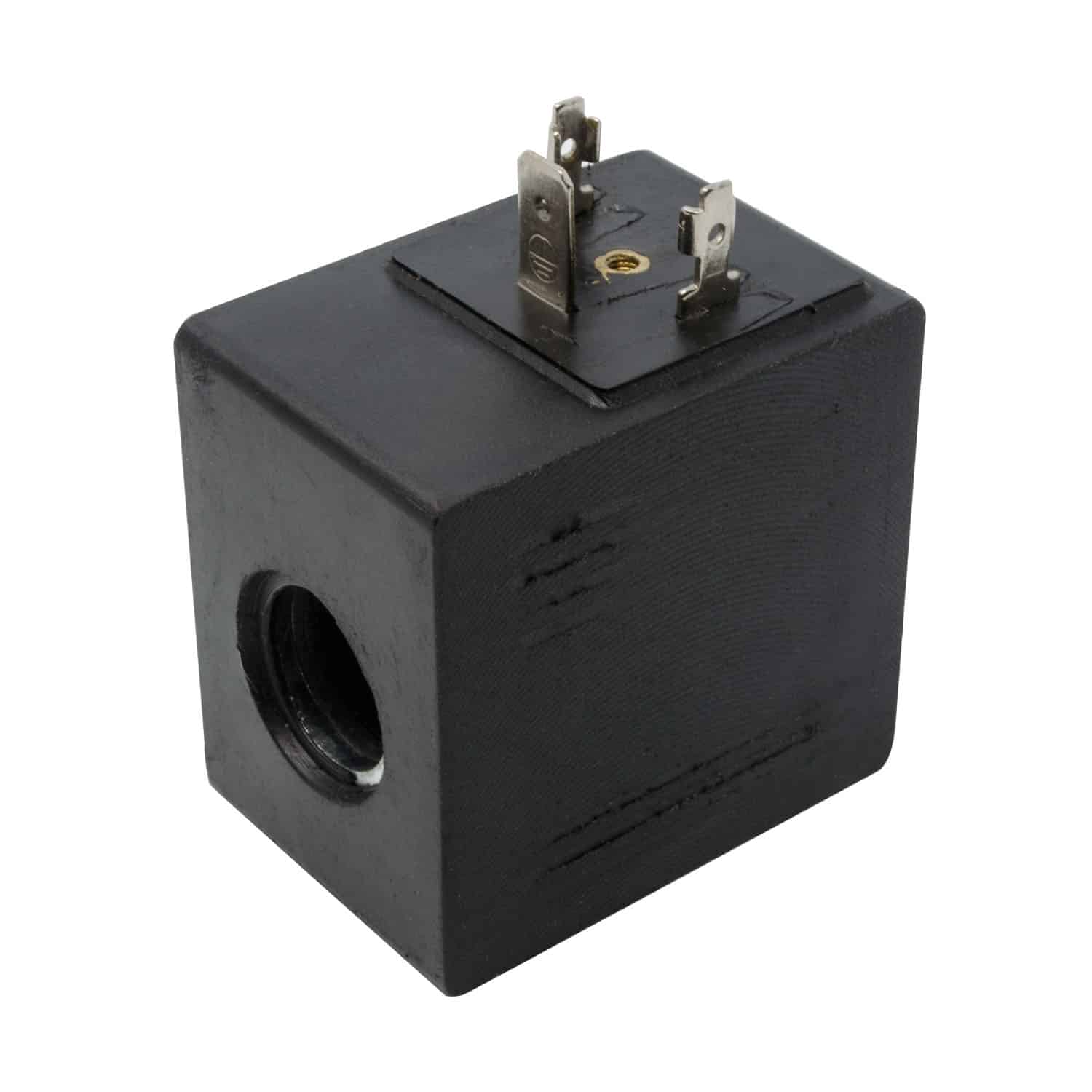

Z50 Replacement Solenoid Coil Z5012V

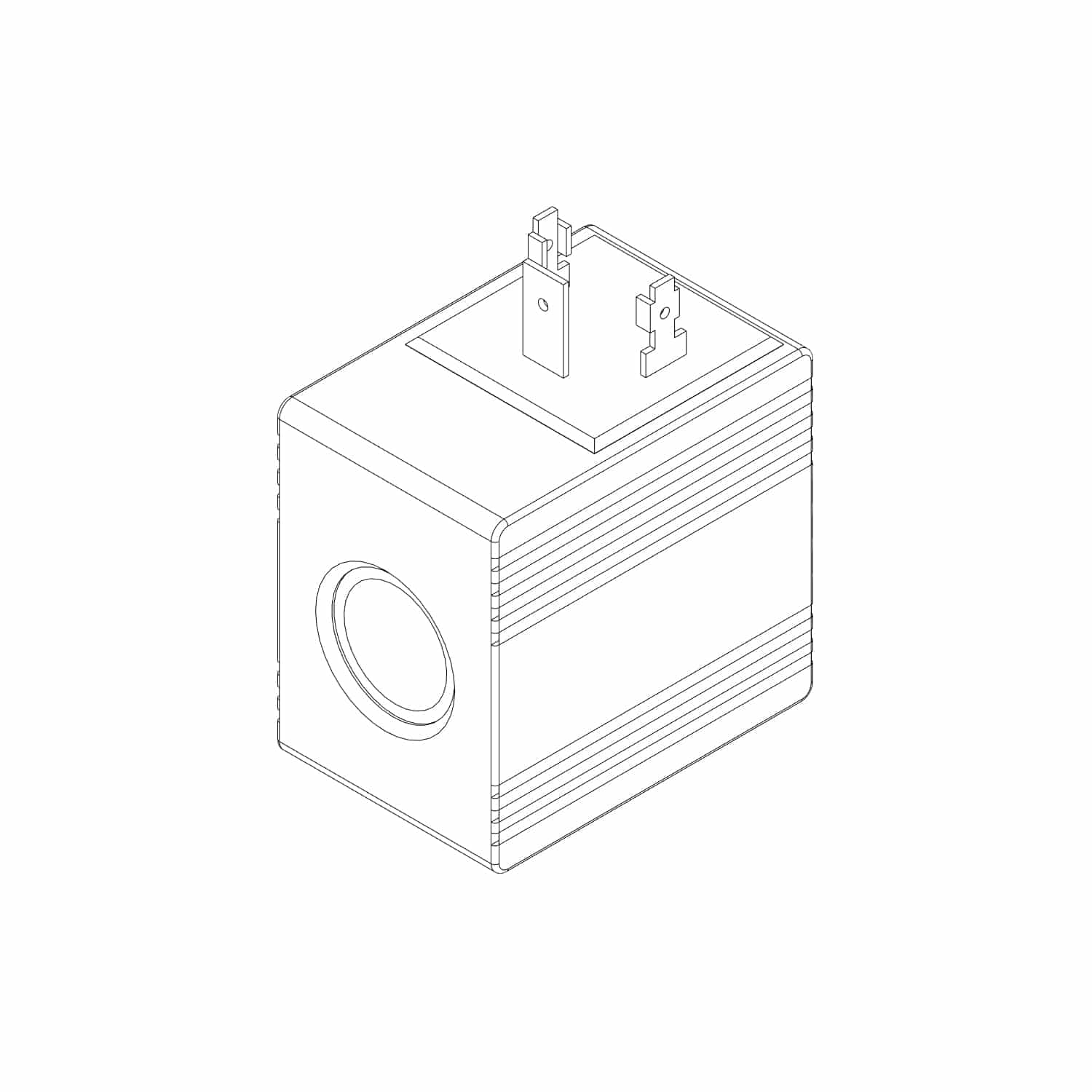

Front view Z50-12V CAD Diagram 00
Back view Z50-12V CAD Diagram 00
Z50 Replacement Solenoid Coil Z5012V
Front view Z50-12V CAD Diagram 00
Back view Z50-12V CAD Diagram 00

Replacement Coil For Z50 Hydraulic Control Valves

$49.95

Free Shipping

Replacement Coil For Z50 Hydraulic Control Valves

SKU: N/A Category:

Replacement Coil For Z50 Hydraulic Control Valves



Solenoid Specifications:

  • Voltage: 12v or 24v DC
  • Nominal Voltage Tolerance +/- 10%
  • Power Rating: 37 Watts
  • Amps: 3.08
  • 100% Duty Cycle

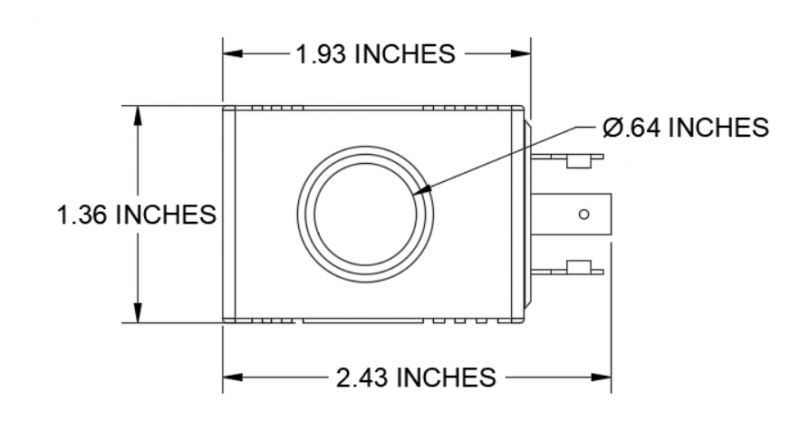

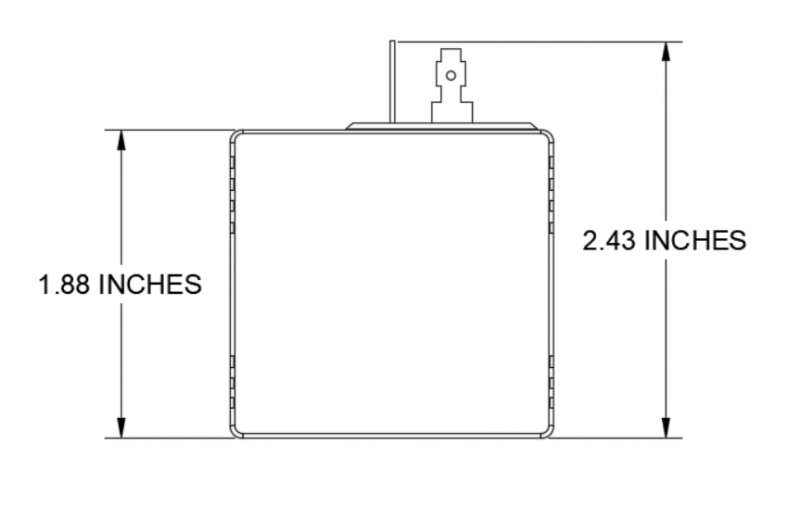

Z50-12V CAD Diagram Dimensions

Z50-12V CAD Diagram Dimensions

Weight 1 lbs
